Wood Swadust Block Machine for Pallet
Zhengzhou Invech Machinery Co., Limited- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Moulding Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Single Layer
Base Info
- Model NO.：Yhp-4
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE
- Transport Package：Wooden Cases
- Specification：5000*600*1350mm
- Trademark：INVECH MACHINERY
- Origin：China
- HS Code：8479300000
- Production Capacity：4-6m3,24hrs
Description
Basic Info.
Model NO. Yhp-4 Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE Transport Package Wooden Cases Specification 5000*600*1350mm Trademark INVECH MACHINERY Origin China HS Code 8479300000 Production Capacity 4-6m3/24hrsProduct Description
Automatic Wood Sawdust Pallet Feet Production LineBrief Introduction:
A. Wood block machine is mainly used to produce wood blocks/pallets feet/pallets legs for EU wooden pallets and wooden boxes. These wood blocks also could be used for heel block to support cargo.
B. The wood block machine of our company is designed by professional engineer according to the optimization principle and can do special customization.
That is you just need to tell us what you need, such as plant size, raw materials, expected output etc, we can provide you with the most suitable machines and the production plan.

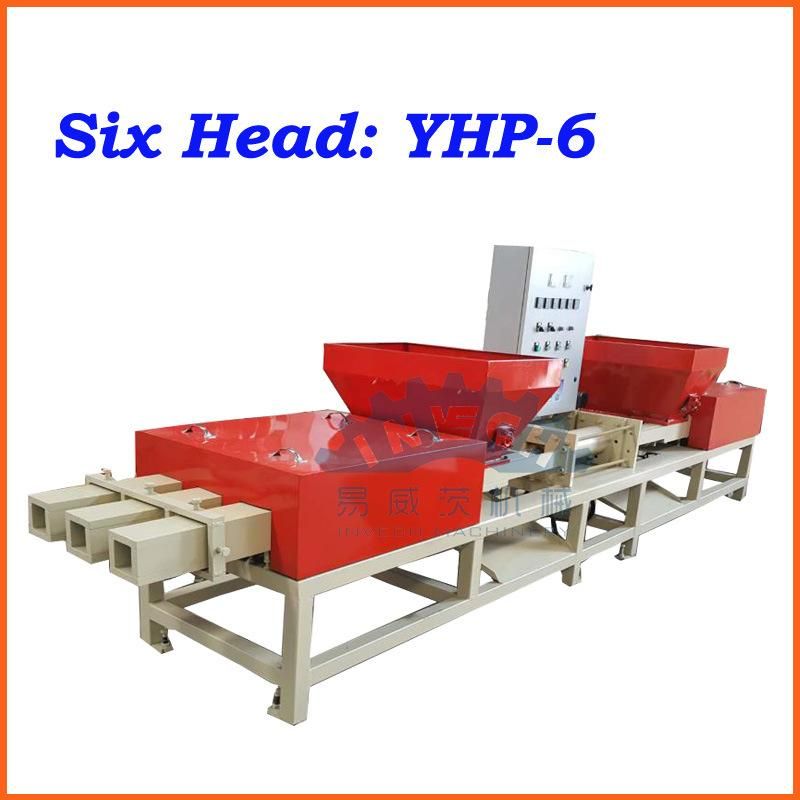

C. There are three models of wood block machines, namely single-head wood block machine, double-head wood block machine, triple-head wood block machine. You can choose different models according to your production requirement.
Techical Parameters:
| Model | YHP-2 | YHP-4 | YHP-6 |
| Size | 4900*600*1800mm | 4900*800*1800mm | 4900*940*1800mm |
| Capacity | 2-4m3/24hr | 4-6m3/24hr | 6-8m3/24hr |
| Glue Consumption | 90-100kg/m3 | 90-100kg/m3 | 90-100kg/m3 |
| Density | 550-600kg/m3 | 550-600kg/m3 | 550-600kg/m3 |
| Power | 12-15kw | 18-25kw | 24-30kw |
| Weight | 1000kg | 1200kg | 1500kg |
Raw material:
Waste wood, wood sawdust, wood shavings, wood chips, tree branches, barks, waste wooded pallets etc and urea-formaldehyde glue.
Blocks Samples:
The density of the blocks can be adjusted according to your needs from 500-750kg/cbm.
The shape can be customized as your request.
The blocks size can be customized from 70*70-145*145mm.
