45 Degree Tilt Spindle Module
Suzhou Trillion Shine Import & Export Co., Ltd.- Warranty:One Year
- Type:Vertical Uniaxial Wood Router
- Spindle Layout:Vertical
- Spindle Number:Single-Spindle
- Feed Mode:Manual
- Controlling Mode:Artificial
Base Info
- Model NO.:MX5615A
- Customized:Customized
- Condition:New
- Color:Blue
- Transport Package:Export Packing
- Specification:120mm
- Origin:China
- HS Code:8465920000
Description
Basic Info.
Model NO. MX5615A Customized Customized Condition New Color Blue Transport Package Export Packing Specification 120mm Origin China HS Code 8465920000Product Description
Wood Spindle Moulder is applied to milling planes, grooves, teeth, threads and spline shafts. And it can also process more complex curved surfaces,trimming with high efficiency and widely used in the woodworking furniture industry.Technical specifications of MX5615A spindle moulder
Model | MX5615A |
Max working height | 150mm |
Main spindle speed | 10000/8000/6000/4000/3000r/min |
Spindle dia | Φ35mm |
Spindle lifting height | 0-190mm |
External Diameter | Φ80mm |

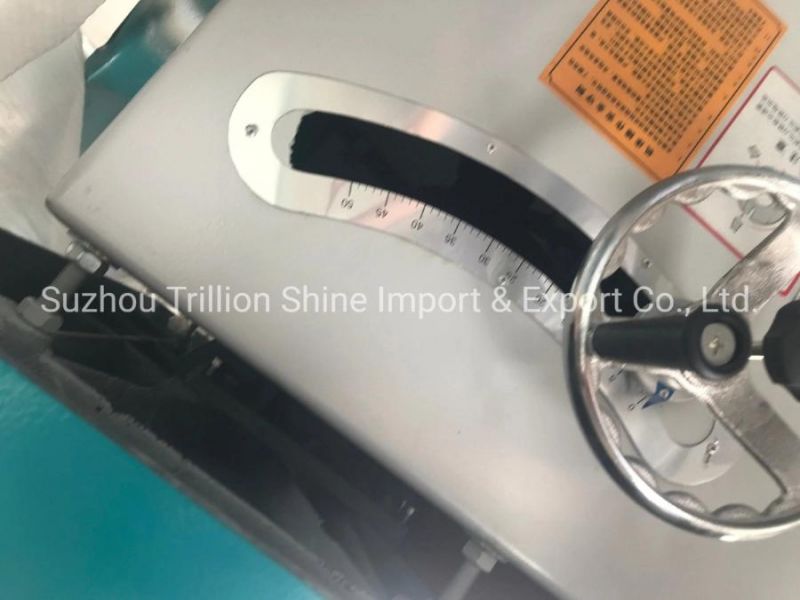

Iltable angel | 0-45° |
Motor power | 4kw |
Fixed table size | 1110x550mm |
Move table size | 1110x260mm |
Overall dimensions | 1135*1565*1140mm |
Net weight | 480kg |
Feature of MX5615A spindle moulder
1. Suitable for wood processing plants, furniture manufacturers, handicraft factories.
2. Strong motor, Smoother cut.
3. Low labor intensity, high efficiency, safe and reliable, one person can operate.
4. High cutting precision, simple operation, high efficiency and wide application.
