CNC Wood Working Machine (RJ-1325)
SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Manual
- Controlling Mode:CNC
- Certification:CE
- Category:Wood Working Machine
Base Info
- Model NO.:RJ-1325
- Material:Aluminum, Iron
- Automatic:Non-Automatic
- Transport Package:Wooden Case
- Specification:1300x2500mm
- Trademark:Ruijie
- Origin:China
- HS Code:84609090
- Production Capacity:100 Sets,Month
Description
Basic Info.
Model NO. RJ-1325 Material Aluminum, Iron Automatic Non-Automatic Transport Package Wooden Case Specification 1300x2500mm Trademark Ruijie Origin China HS Code 84609090 Production Capacity 100 Sets/MonthProduct Description
Wood working Machine RJ-1325Specifications:
1. Highly accurate Rack Rail travel method with high speed
2. The vacuum cleaning system offers a clean working environment and better quality
3. Y-axis adopts double motors to ensures stable operation
4. Lathe bed is cast wholly and firmly and will not deform
5. USB ensures high speed and efficiency.
6. The unique calculating system realizes speedy, accurate, curvy operation.
Working travel | X axis 1300 mm Y axis 2500 mm Z axis 230 mm |
Table size | 1300 mm*2500 mm |
Maximum speed | X Y axes 60m/min |
Spindle | Voltage: AC380v Frequency:400Hz |
Italy HSD | Speed:24000r/min Power:8kw |
Pressure | Air-blow pressure 0.4 MPa Tool hold Pressure 0.7 MPa |
Pressure protection | No less than 0.7 |
Dust collecting power | 3.0kw |
Vacuum power | 5.0kw (phenol aldehyde laminated cloth board) |
Total power | 23.0kw |
Mechanism size | Area:1.8m*3.3m Height:1.5m Weight:850kg |
Japanese servo motor | Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min. |
Tool storage | 8 tools |
Diameter of cutter head | 3.175mm, 6mm, 12.7mm. |
Cubage | 18.0 CBM |

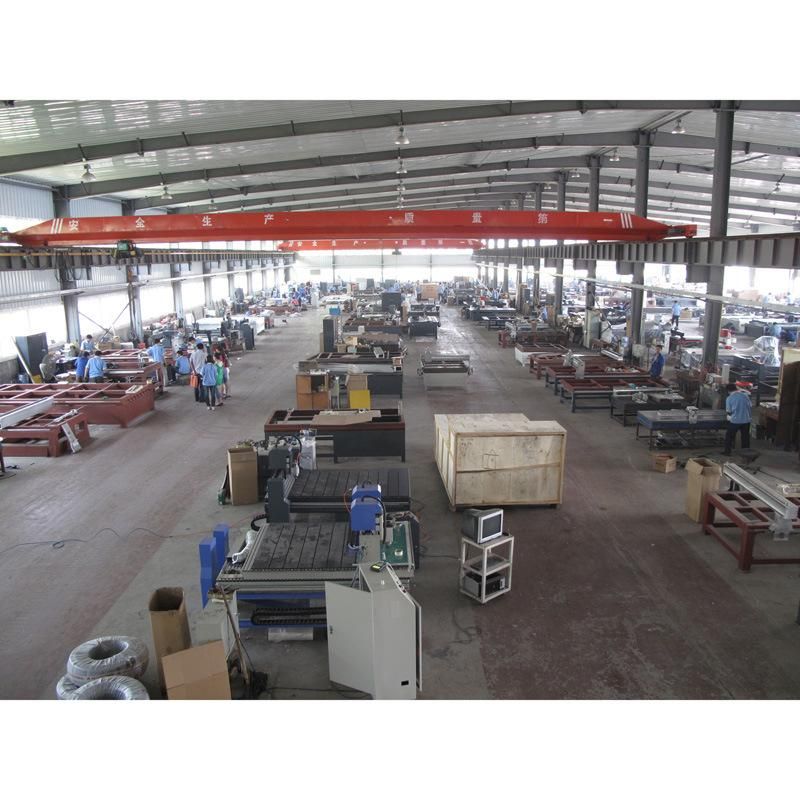

Factory Show
