R-R630 Primer Sanding Machine for Lacquer Sanding

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Belt Wood Sander
  • Automatic Grade：Automatic
  • Variable Speed：Variable Speed
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：R-R630
  • Color：Iron Grey
  • Transport Package：Plywood Case
  • Specification：1700*1100*2050mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659300
  • Production Capacity：2 Sets,Week

Description

ModelR-R630R-R1000R-R1300max working width630mm1000mm1300mmmaterial thickness2.5-120mm2.5-120mm (option2.5-160mm)2.5-120mm (option2.5-160mm)Min. working length350mm(option 250mm)350mm(option250mm)350mm (option 250mm)Feeding speed6-30m/min6-30m/min6-30m/minBelt speedfrequency controlfrequency controlfrequency controlSize of sanding belt650*1900mm1020*2020mm1320*2020mmTotal power16.87kw20.25kw26.37kwWorking pressure0.5Mpa0.55Mpa0.55MpaVolume of dust collecting5000m³/h5000m³/h5000m³/hSpeed of dust collecting25-30m/s25-30m/s25-30m/sOverall domension1700*1100*2050mm1900*1400*2050mm2100*2450*2050mmWeight1300kg1800kg3200kg

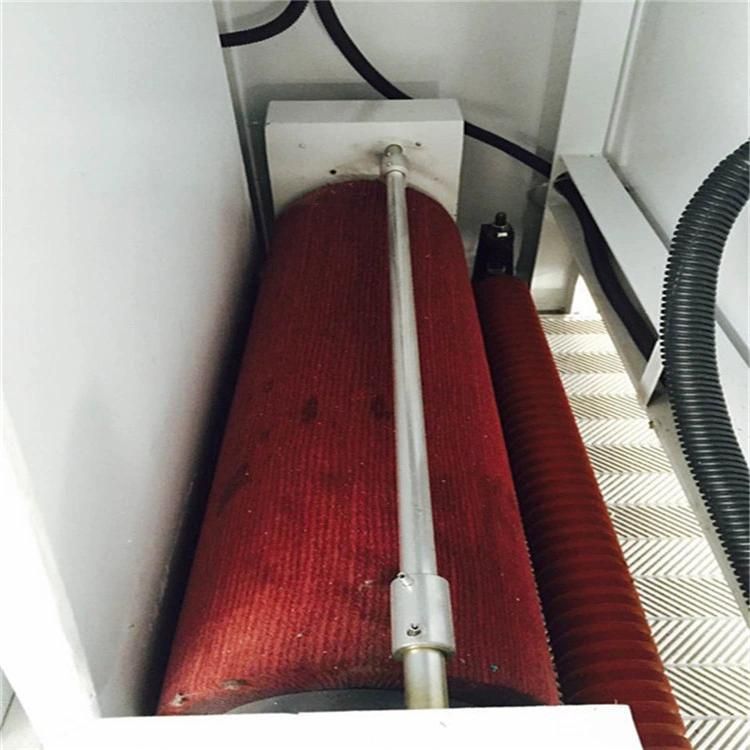

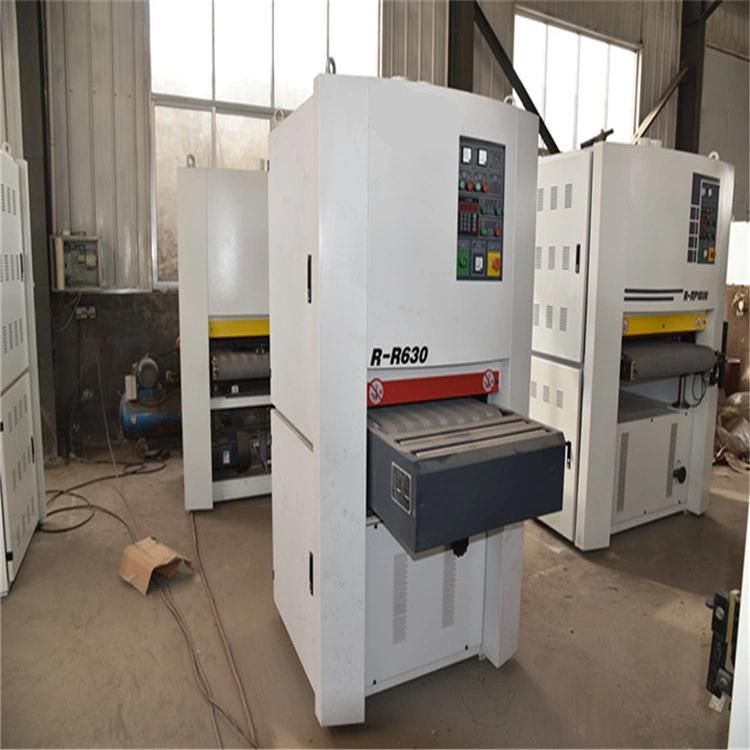

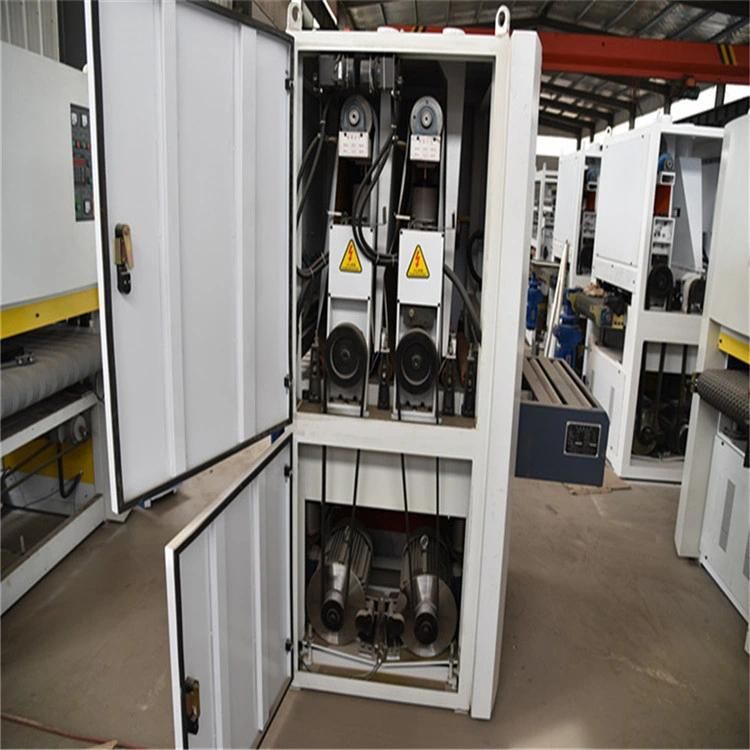

Detailed pictures:

R-R630 Primer Sanding Machine for Lacquer Sanding
R-R630 Primer Sanding Machine for Lacquer Sanding
R-R630 Primer Sanding Machine for Lacquer Sanding




Packaging & shipping:

R-R630 Primer Sanding Machine for Lacquer Sanding
 Company information:

R-R630 Primer Sanding Machine for Lacquer Sanding
R-R630 Primer Sanding Machine for Lacquer Sanding
R-R630 Primer Sanding Machine for Lacquer Sanding

For more details, pls feel free to contact us.
