• Model NO.：001
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Export Case
• Trademark：TRILLION SHINE
• Origin：China
• HS Code：8465950000
• Production Capacity：830 Sets,Year

Basic Info.

Model NO. 001 Customized Customized Condition New Color Customized Transport Package Export Case Trademark TRILLION SHINE Origin China HS Code 8465950000 Production Capacity 830 Sets/Year

Product Description

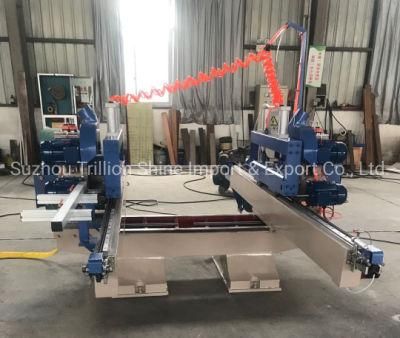

Double end-tenoner for chevron flooring
It is used for chamfering and making the tongue and groove for chevron flooring.

Main Features
High precision production processing.
Feeding by frequency conversion control.
Equipped with advanced linear guide, pneumatic cylinders
All shafts are equipped with counters
The chain and guides lubricated by a self-oil feeder

Technical specifications


Min  processing lenght for 45 degree cuts	410
Max processing length for 45 degree cuts	1050 mm
Min  processing lenght for 60 degree cuts	350
Max processing length for 60 degree cuts	1050 mm
Min processing length for 90 degree cuts	300 mm
Max processing length for 90 degree cuts	1300 mm
Motor for Saw blades	2.2 kw x 4 units
Saw blades rotation speed	2840 rpm
Tilting angle saw blades	0-20°
Saw blade 1	OD: 300 mm, ID:25.4 mm, 4 pieces
Saw blade 2	OD: 250 mm, ID:25.4 mm, 1 piece
Motor for mortising tools	3kw x 2 units
Notching tool rotation speed	8000 rpm
Feed motor	1.1 kw, Inverter control
Inverter	Taiwan Shihlin
Feed speed	10 m/min adjustable
Discharge motor	0.37 kw
Dia of sawdust pipe	100mm
Dia of suction inlet	100mm
Photoelectric switch	Omron
Overall dimensions	about 3200 x 2300 x 1400 mm
Net weight	about 2000 kg

FAQ
1. Can we use this machine for 90 degree cuts, 60 degree cuts, and 45 degree cuts?
Yes, you can use this machine for 90 degree cuts, 60 degree cuts, and 45 degree cuts...just need to change level blocks.
2. What tooling comes with the unit. Does it come with cutting tools and saw blades? What type of tooling is it? Insert, high speed steel, diamond?
Saw blades (5pcs.) will come with the machine, the material is tungsten steel(hard alloy).
Customers prepare the cutting tools by themselves because the standard will be different for different markets and different kinds of flooring, even tongue and groove are different between laminate flooring and solid wood flooring
3. Can you ship cutting tools with the machine
If you need us to ship cutting tools with the machine, please send us the drawings of cutting tools or courier your flooring sample to us.

Remark: Custom-made and OEM are accepted

What services to offer:
1. Provide customerization.
2. One year warranty for the machine. Liftetime after-sales service and technical support.
3. Professional team for guiding installation& commissioning.
