• Model NO.：ZDR700
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Working Pressure：0.7MPa
• Total Power：10.23kw
• Shipping Port：Qingdao
• Transport Package：Wooden Box
• Specification：3600*900*1500mm
• Trademark：QDZD
• Origin：China
• HS Code：84659900
• Production Capacity：100sets,Month

Basic Info.

Model NO. ZDR700 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Working Pressure 0.7MPa Total Power 10.23kw Shipping Port Qingdao Transport Package Wooden Box Specification 3600*900*1500mm Trademark QDZD Origin China HS Code 84659900 Production Capacity 100sets/Month

Product Description

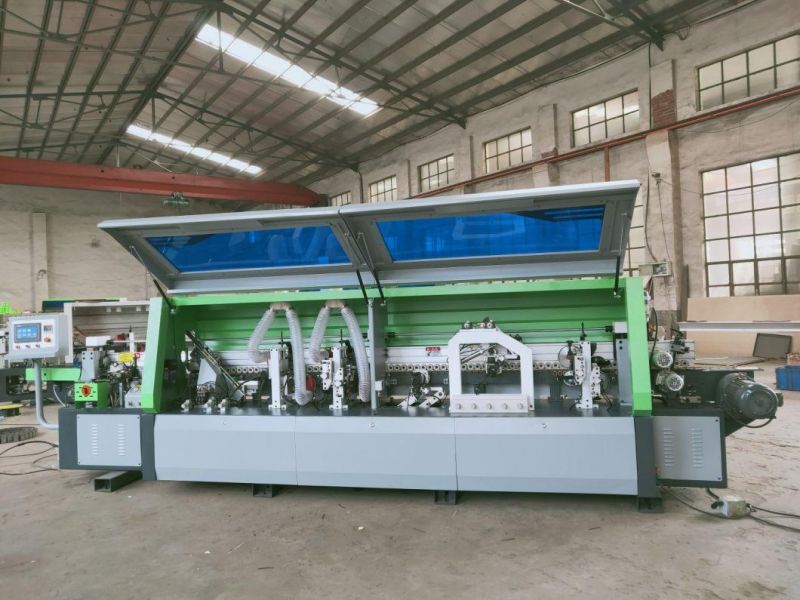

PVC Plastic Furniture Edge Banding Machine Automatic Edge Bander

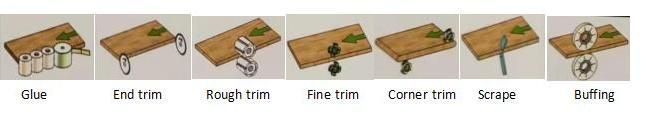

Full Automatic Edge Banding Machine 7 functions


Technical Parameters

Working pressure	Total power	Feeding speed	Panel thickness	Panel length	Panel width	Edge thickness	Overall size
0.7MPa	10.23kw	13m/min	10-60mm	Min. 100mm	Min. 50mm	0.4-3mm	5200*900*1500mm

Company Introduction

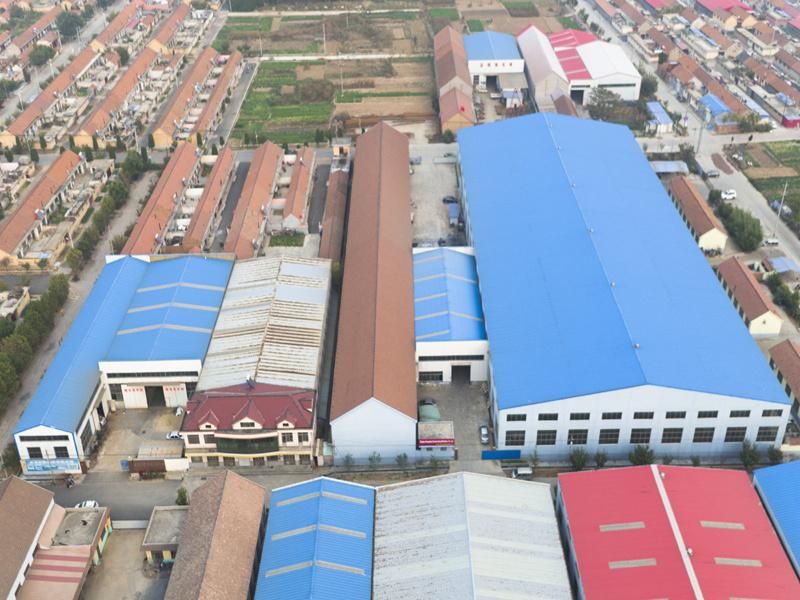

        Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
        Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
       We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.

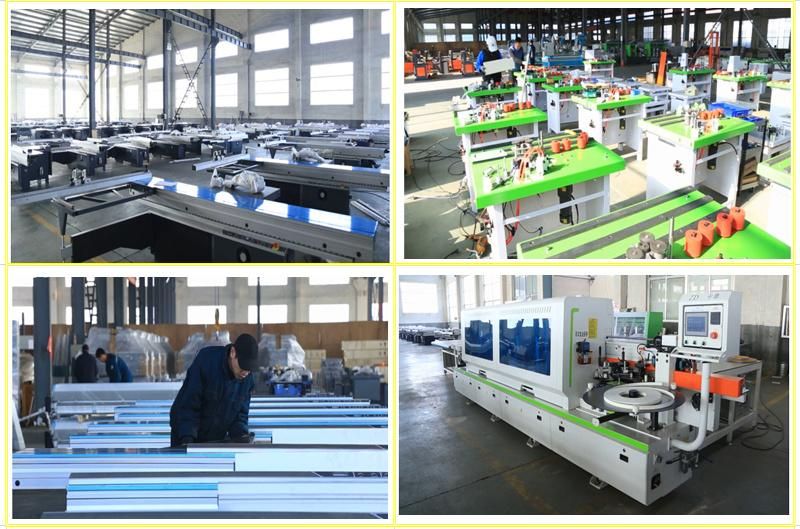

The Workshop


 Feature:

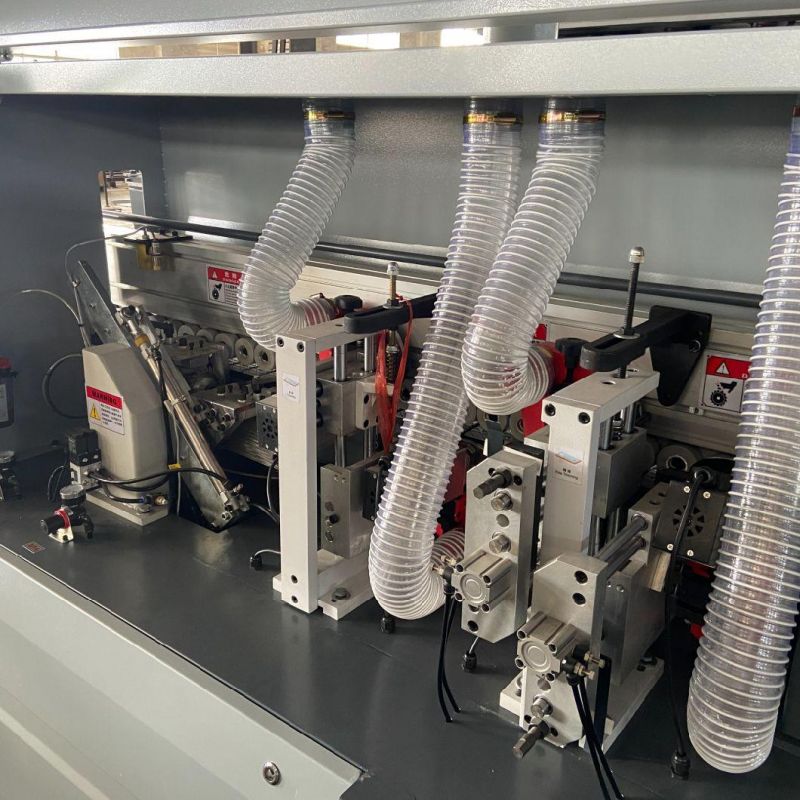

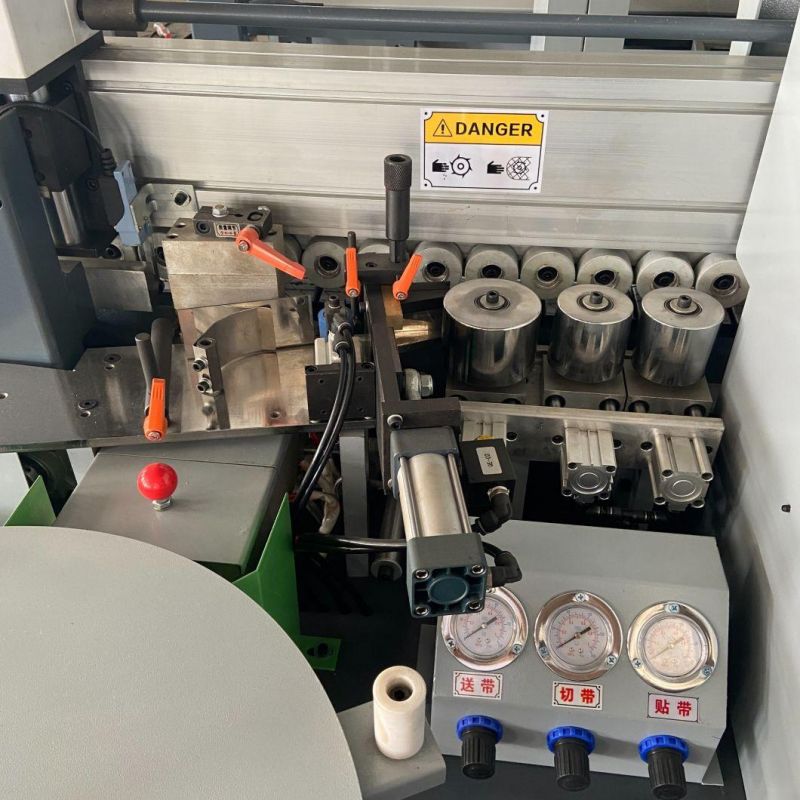

1.Glue coating device:

The glue pot adopts imported special ball bearing and high hardness and super wear-resistant material glue box, the glue lifting shaft is patented design, CNC processing, to ensure the glue output, uniform daub, the glue surface hit 99.999%, the glue thickness can be controlled at will.

2.End trimming

The end trimming system is used to cut off the cutting components of the front and rear lamination film. The end trimming device moves through precise linear guides, adopts automatic profiling and high-frequency electrode rapid cutting mechanisms to ensure that the cut surface is flat and smooth. The cutting assembly is used for sawing the super high part of the laminated film. Rotate to make the edges at right angles or oblique angles, both of which are done by scraping. The cutting component is composed of two unrelated cutting units.

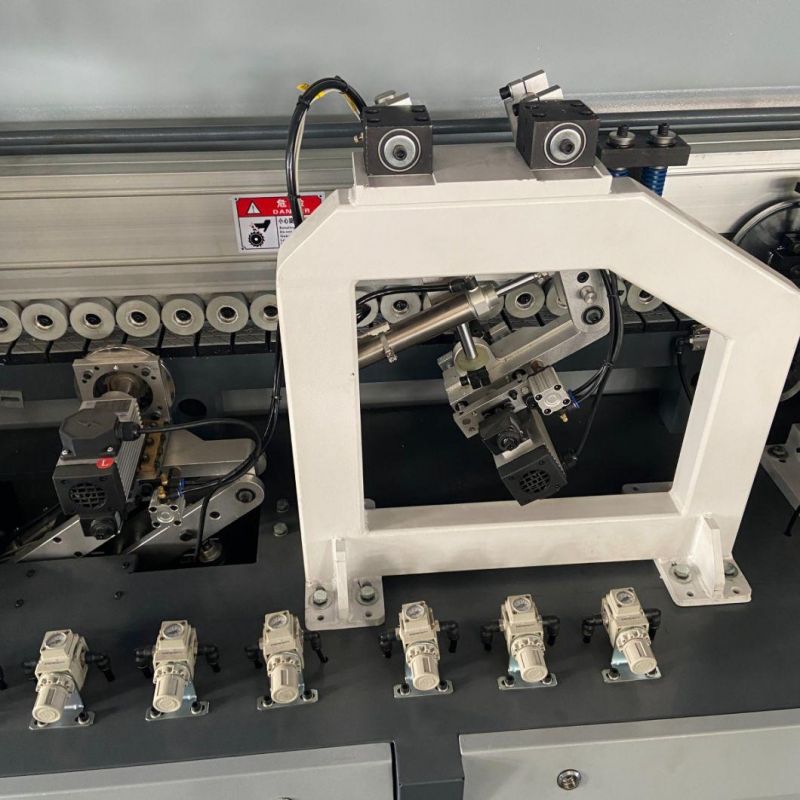

3.Rough/Fine trimming

Rough/fine trimming system is used for finishing components at the upper and lower ends. Rough and fine trimming devices are used for trimming and processing the excess edge banding material on the upper and lower parts of the sheet edge banding. It adopts the structure of automatic profiling and high-frequency high-speed motor, etc. To ensure the smoothness of the upper and lower parts of the trimmed board, this system consists of two parts: primary trimming and secondary trimming. The primary trimming is a flat blade and the secondary trimming is an arc knife.
Equipped with HF motor, trimming amount, trimming radian are accurately calculated in advance, so that the edge banding strip and radian are smooth and uniform, and the linear error is not more than 0.01mm

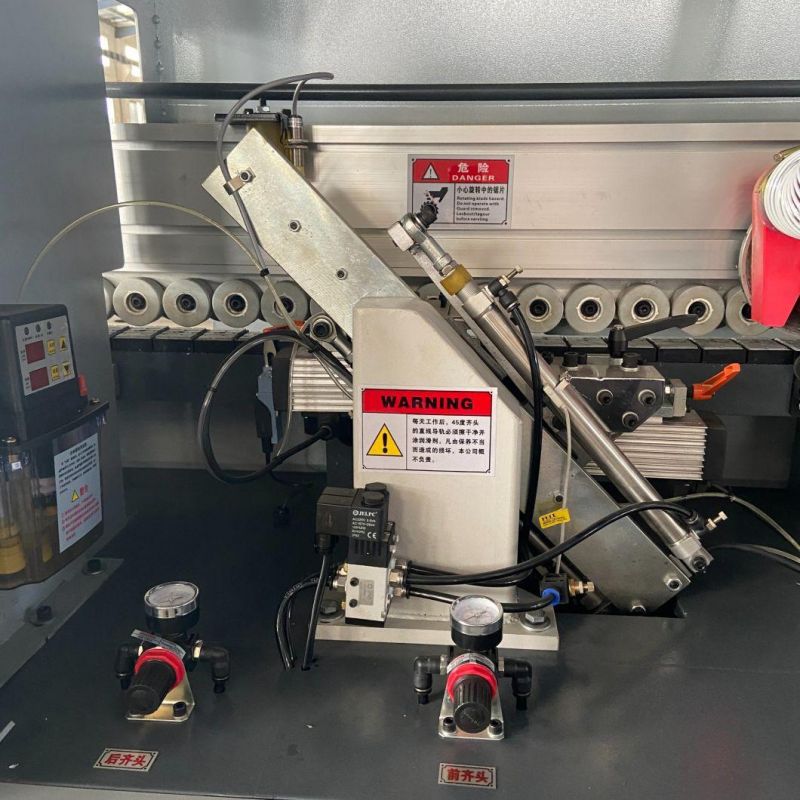

4.Corner Rounding

Corner rounding mechanism with two high precision tracking motor to make sure high tracking speed and high trimming speed.
The profiling tracking system component is used to match the sol-coated film with the jade star of the workpiece during the conveying process, and cut (outline) the edges and corners. The profiling tracking upper and lower rounding device can make the end surface of the board more smooth and beautiful. The component is composed of two unrelated devices. One device is used for the processing of the rear side of the workpiece and the upper end of the front door, and the other is used for the processing of the lower end. The control of the component is realized through segment control. The workpiece is accepted and transferred to the milling tool.

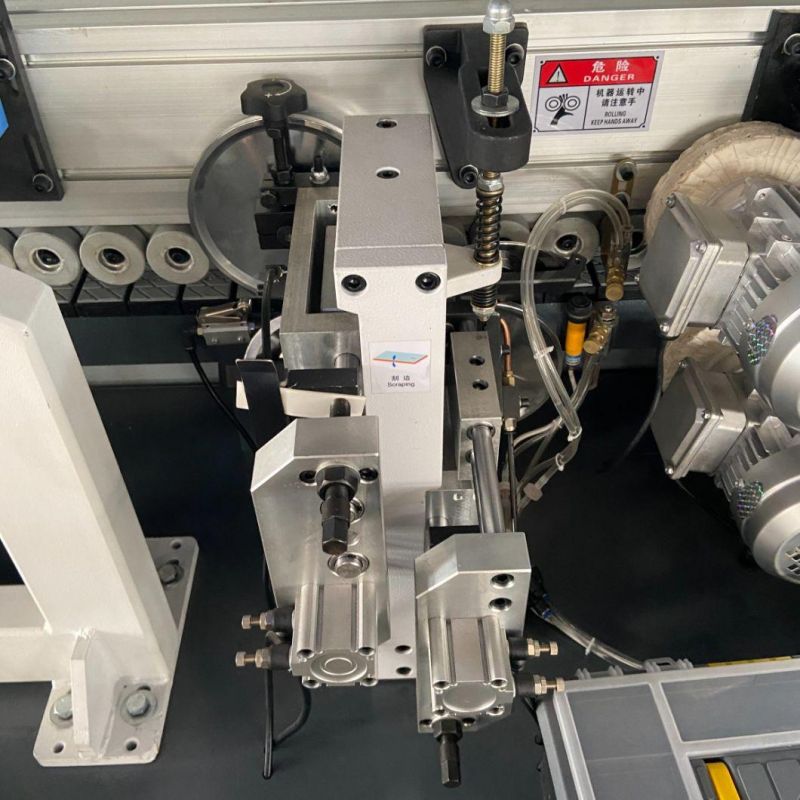

5.Scraping

The edge scraping system is used to remove the milling marks on the pre-cut PVC laminating film, and the edge scraping device is used to eliminate the ripple marks caused by the cutting process of the non-linear motion of the trimming, so that the upper and lower parts of the sapwood are smoother and cleaner, and the edges are scraped. It is normal that the edge band fragments cut off when the mechanism is working should be thin enough to be blown away by the air nozzle.
Updated scraping mechanism with bigger unit and big copy wheel and V shape blade to get better effect.

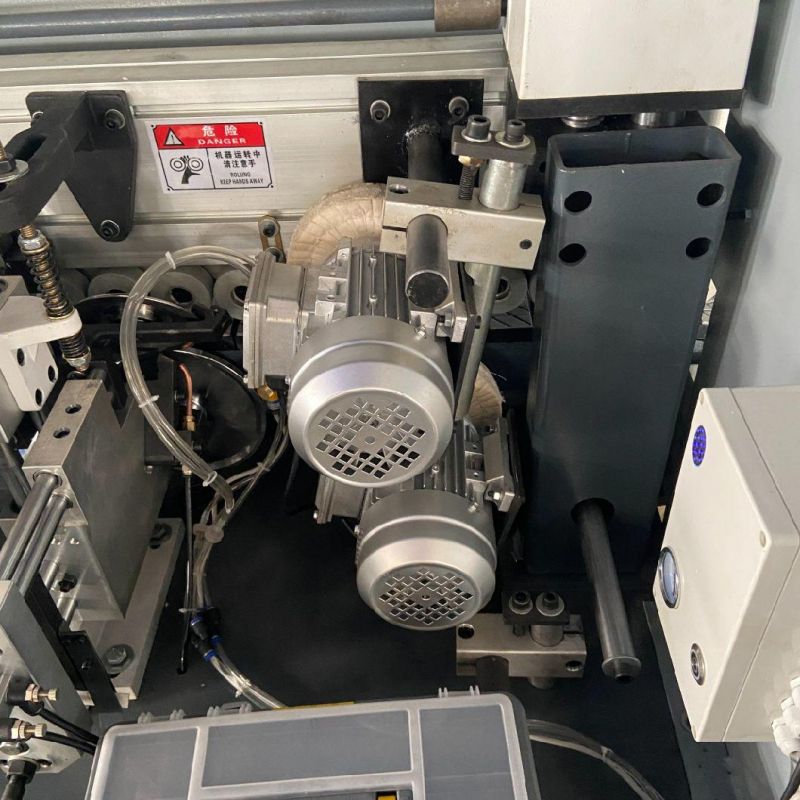

6.Polishing/Buffing:

The polishing component polishes the plastic film and removes the sol residue on the workpiece. The polishing device uses a cotton polishing wheel to clean the processed plate. The edge-sealing end surface is smoother through polishing. The polishing component used for the upper surface of the workpiece is fixed on the workpiece. The thickness of the workpiece does not need to be set on the side, the polishing assembly for the lower surface of the workpiece is on the lower side, and the rotation direction of the motor is opposite to the running direction of the workpiece.
