• Model NO.：BX216, BX218
• Voltage：380V, Customerized
• Weight：2990-11840kg
• Warranty：12months
• After-Sales Service System：Engineers Available to Service Machinery Overseas
• Delivery Time：30days
• Transport Package：Wooden Case or Container
• Specification：5 to 20 tons in weight
• Trademark：Kowloon
• Origin：Zhengzhou, Henan, China
• HS Code：8465960000
• Production Capacity：30 Set,Sets Per Month

Basic Info.

Model NO. BX216, BX218 Voltage 380V, Customerized Weight 2990-11840kg Warranty 12months After-Sales Service System Engineers Available to Service Machinery Overseas Delivery Time 30days Transport Package Wooden Case or Container Specification 5 to 20 tons in weight Trademark Kowloon Origin Zhengzhou, Henan, China HS Code 8465960000 Production Capacity 30 Set/Sets Per Month

Product Description

CE certified wood cutting chipper with factory best price






Discription:

 Drum wood Chipper can crush all kinds of wood (whole tree logs ,branches ,leaves ,tree limbs, trunks, pulp wood, veneer, solid wood, cores, slabs, scraps, etc.) into smaller and quality wood chips. Chips size can be adjusted by screen inner the chipper machine. Chips length is about 30mm. This chipper machine can be used alone, and also equiped with sawdust machine in sawdust/powder production line.

Application:

The output chips are raw material for biomass industry, fiber and particle board plants, pulp & paper industry, and also well suitable as fuel in modern heating plants.

Structure:

It mainly consists of body, knife roller, top and bottom feed mechanism, feeding device, hydraulic system.

Knives was fixed on the roller by special bolts. As different thickness of raw material, the top feed mechanism could be adjusted automaticly, then chips drop through screen, chipping again for  large size material.

By hydraulic system, the cover shell of machine could be opened freely,  easy for user to replace the parts and knives, also convenient for adjusting the space between knives and dead knives.


Technical Parameters:

Model	JLBX215	JLBX216	JLBX218
Draw-in openning(height x width)	160×400mm	230×590mm	300×680mm
Max Dia.of raw material	φ160	φ230	φ300
Knife quantity	2 or 3 pcs	2 or 3 pcs	2 or 3 pcs
Knife roll rotary speed	592r/min	590 r/min	650 r/min
Finish chips	30mm	30mm	30mm
Capacity	3-5t/h	8-10 t/h	14-18 t/h
Host motor power	45kw	55 kw	90-110 kw
Feed roller motor power	(2.2-3)×2kw	(3-4)×2kw	(4-5.5)×2kw
Oil pump motor power	1.5kw	1.5kw	1.5kw
Weight	2990kg	5030kg	7000kg
Outside dimension	1470*1550*970mm	1800*1900*1210mm	2200*2150*1500mm
Conveyor motor power	3kw	3kw	4kw

Video Center

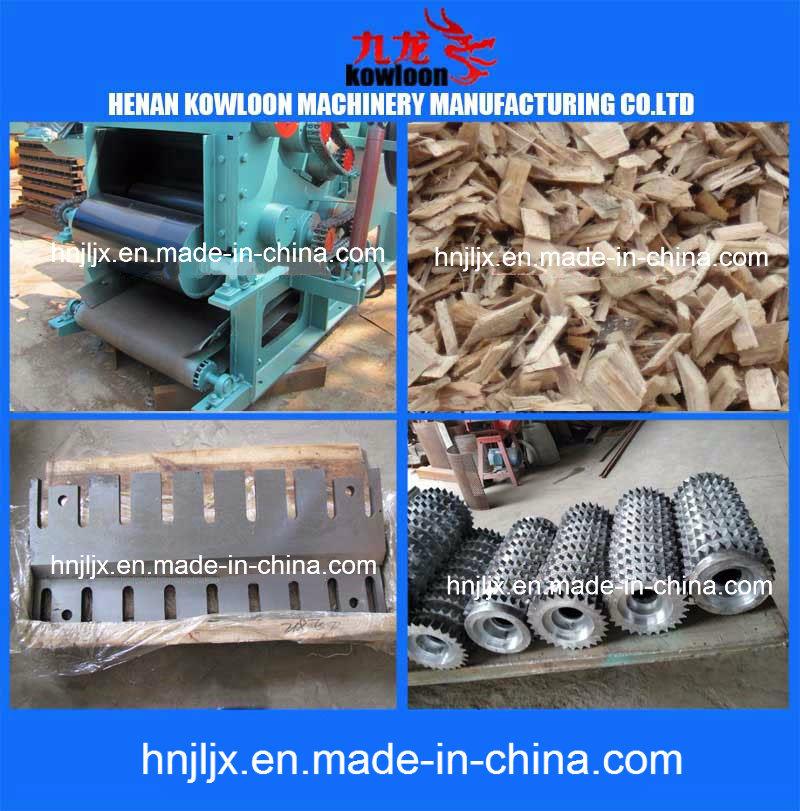

Drum Chipper Parts



Company Information

KOWLOON was established since 1986, located in Zhengzhou city, which city of industrial hub of China, 30years experience on manufacturing of:

Wood processing machinery: wood pellet production line, wood shredder, wood drum chipper, wood sawdust machine, wood powder machine, rotary dryer and air flow drying machine, wood debarking machine.

Waste tire recycling machinery: tire recycling plant, industrial two shaft shredder, tire roller mill multi-purpose rasper, rubber granulator, rubber powder machine, tire cutting machine, tire steel debeader, and fiber separate machine.

By now, KOWLOON machines were exported to more than 30 countries and share market in worldwide, owns oversea distributors and after-sale service center and now still growing continuously.
