Hot Selling Wood Log Debarker Wood Debarking Machine Tree Bark Stripping Machine
Zhengzhou AG Machinery & Equipment Co., Ltd.- Type：Wood Debarker
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：Z800
- Customized：Customized
- Condition：New
- Color：Customized
- Wood Length：Less Than 6m
- Stripping Diameter：40-400mm
- Power：18.5kw
- Output：3-5 Tons
- Dimension：6.2X1.7X1.6 M
- Weight：3000kg
- Delivery：1X 20 Container
- Keyword 3：Tree Debarking Machine
- Keyword 1：Wood Debarking Machine
- Keyword 2：Log Debarking Machine
- Transport Package：Container
- Specification：CE, SGS
- Trademark：AGII
- Origin：China
- HS Code：8465990000
- Production Capacity：100 Sets Per Month
Description
Work Principle:
Wood barker is new generation wood peeling equipment with high efficiency which was innovated by our factory on the basis of foreign advanced technology. It had single and double roller type according to different wood with different diameter. This machine adopts open groove peeling room, the wood come into the peeling room from one side and come out from the other size. So it is continuous working. It conquers the defect of rolling drum and improves capacity greatly. It is suitable for big diameter wood and large scale factory.
The tree wood log debarking machine uses special force to let the wood doing circle movement in the hopper tank plate, and also around its own axis to do turning motion segment and irregular beating. The force is caused by the rotor which is with ladder type peel teeth. So that wood and teeth, wood and wood, wood and hopper tank,pectin friction, strike, extrude and peel off ceaselessly, Lead to bark and tree trunks are broken down and stripped fast, So as to achieve the effect of stripping efficiency.

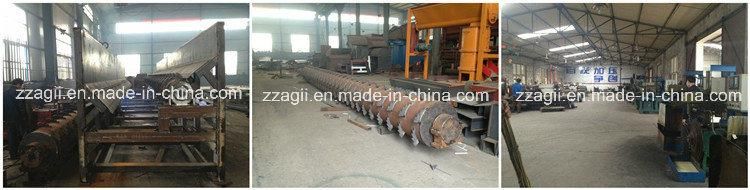

Our Production Workshop:

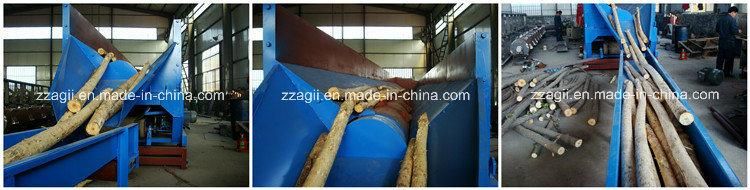

Debarking Process:
