• Model NO.：RSK1500
• Customized：Non-Customized
• Condition：New
• Color：Iron Grey
• Transport Package：Standard Packing
• Trademark：SAMACH
• Origin：China
• HS Code：99
• Production Capacity：5000sets,Year

Basic Info.

Model NO. RSK1500 Customized Non-Customized Condition New Color Iron Grey Transport Package Standard Packing Trademark SAMACH Origin China HS Code 99 Production Capacity 5000sets/Year

Product Description

RSK3722-5*2 Woodworking Machinery CNC Tenon Slot Machine



Description of Tenon Machine
High production efficiency, 5-axis multi-station, high-speed continuous milling, while a set of workpieces are being processed, other workpieces are loaded and unloaded without interrupting. More than 20,000 grooves (holes) are milled every day (8 hours).
It is more convenient to adjust, adopts advanced CNC control system, HMI interface, easy to learn, and operators can start to run the machine after 2-3 hours training. By using the tool measuring for tool setting, no programming is required, and the machining program is automatically generated on the point. It takes only about 10 minutes to adjust one workpiece.


Specifications

Model	RSK3722-5*2
Max. stroke of X axis	3200mm
Max. stroke of Y axis	540mm
Max. stroke of Z axis	200mm
Air pressure	0.6-0.8 Mpa
Spindle speed	18000r/min
Total power	18.5kw
Overall dimension	4300*2200*2110mm
Weight	2260kg

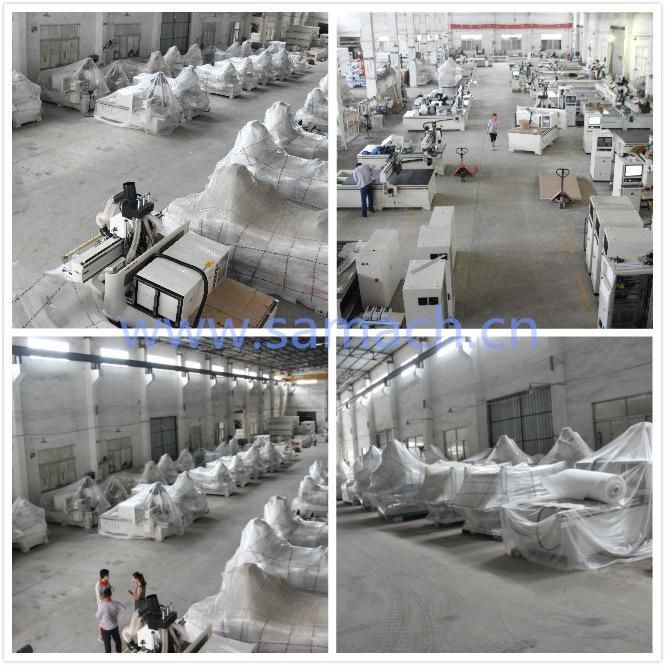

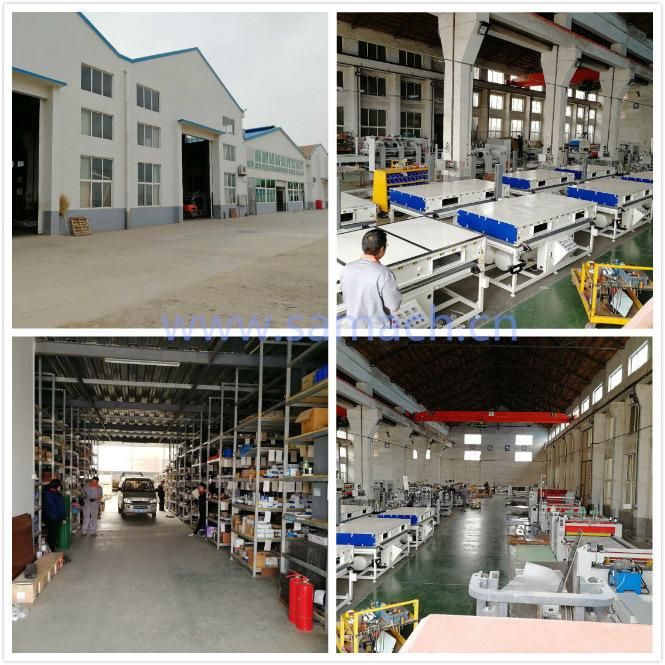

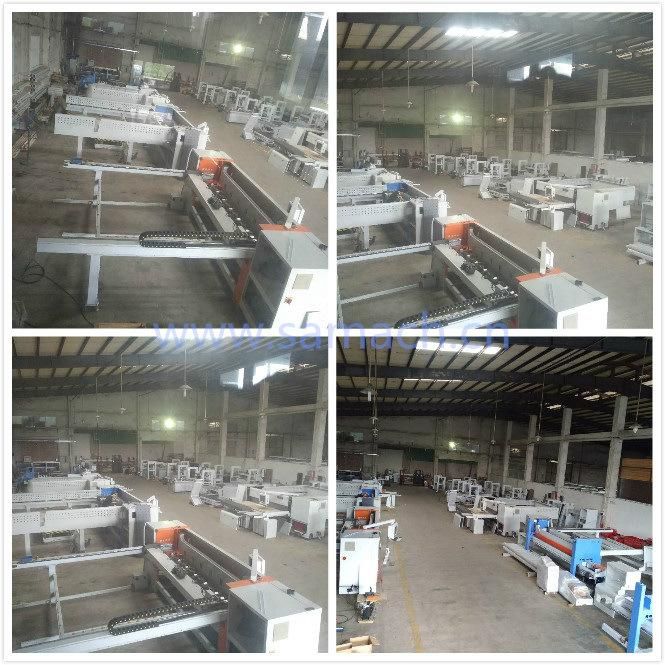

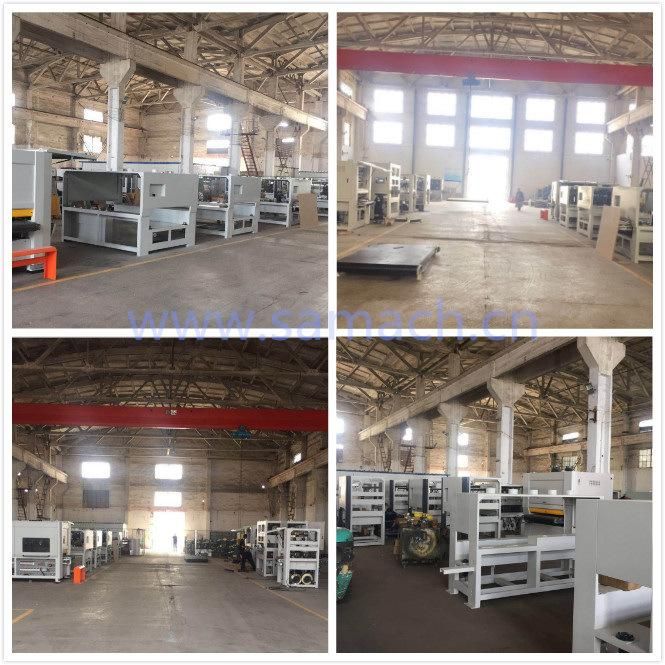

Factory






Exhibition

Certificates of Mortise machine


Samach'S Service and dominant:

1: Professional team of techniques study and research, guarantee the Machine latest and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after service.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partner.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time!
