• Model NO.：BY114X8
• Work Mode：Period
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA
• Application：Particle Board, OSB, Chip Board
• Capacity：20000~130000cbm,Year
• Size：4X8FT,6ftx9FT, 6X8FT
• Thickness：9~30mm
• Transport Package：Standard Export Packing
• Specification：3200x2700x5100mm
• Trademark：METRO
• Origin：Shandong, China
• HS Code：8465990000
• Production Capacity：50set,Year

Basic Info.

Model NO. BY114X8 Work Mode Period Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO, FDA Application Particle Board, OSB, Chip Board Capacity 20000~130000cbm/Year Size 4X8FT,6ftx9FT, 6X8FT Thickness 9~30mm Transport Package Standard Export Packing Specification 3200x2700x5100mm Trademark METRO Origin Shandong, China HS Code 8465990000 Production Capacity 50set/Year

Product Description

Multi Opening Particleboard Production LineProduct Description:
PB line based on wood as raw materials, shavings, glue, auxiliary equipment, hot pressed density 550-750kg / M 3 man-made sheet. It has a fine smooth surface structure of the core layer gradient, and has good heat insulation, sound insulation and good machining properties, is widely used in manufacturing furniture, high-end cabinets, speakers, and other interior construction and transport. We produce an annual output of 30000-60000 cubic meters of particle board equipment, in a dry, auxiliary equipment, hot press has done a great section in the technical modifications, reduce investment, improve the quality of the products.
 1) Chip preparation section
  Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knife-ring flaker by which the chips are turned to flakes,then the flake stored in wet flake bin.

2) Drying and sifting section
  The flskes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.

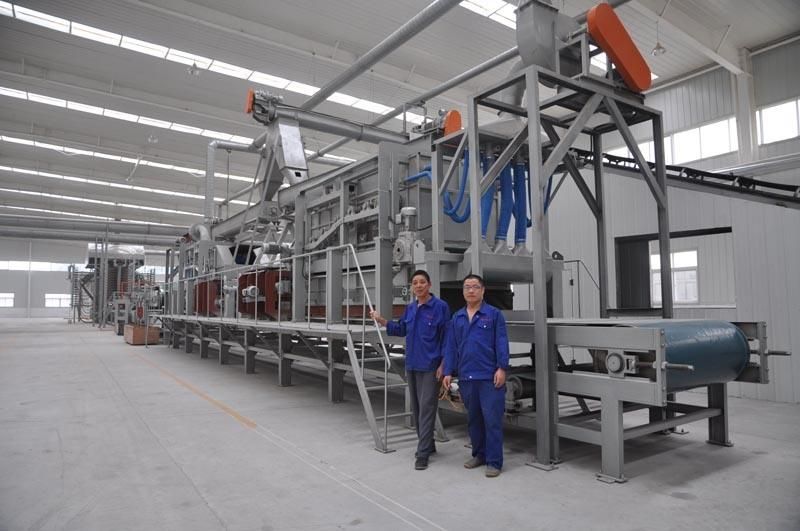

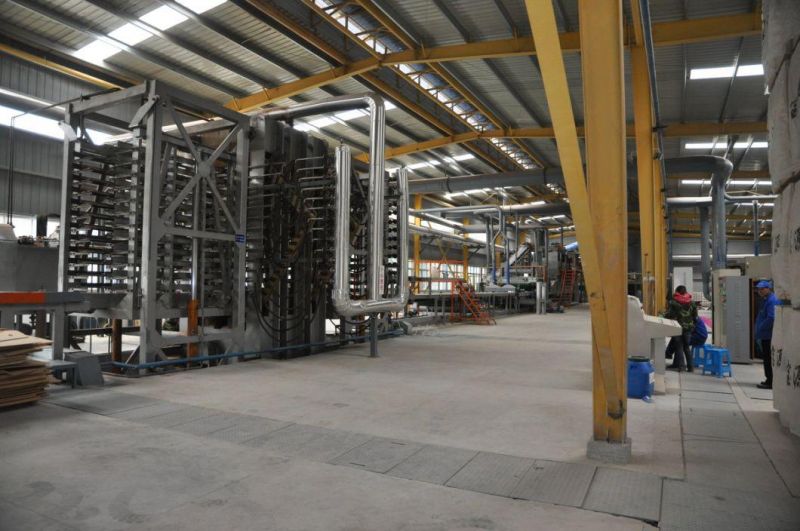

3) Forming and hot-pressing section
  The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After process of metal remover , pre-press, lengthwise saw, cross saw, accelerate conveyor,scaling conveyor , storing conveyor and loading conveyor,mats are transported to carrier and then to hot pressing. Rough boards after pressing are pushed to unloader via pallet.

4) Cooling and sizing section
  The rough board is conveyed to star-cooler for cooling ,then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.

5) Sanding section
  The board are sanded,checked and stored.
  PLC control is used in mat-forming section.




Equipment Type   Technical Parameters	BY114×8/15-10II
Nominal Gross Pressure	15000KN
Direction of Feeding Plate	Vertical
Layer Counting	10
Distance Between Hot Platens	120mm
Numbers of  Hot Platens	11
Dimension of  Hot Platens	2700×1560×100
Numbers of Cylinder	6
Diameter of Cylinder	Φ360mm
Stroke of Cylinder	1200mm
Pressurization	≤26 Mpa
Diameter of Powerful Nitrogen Tank	Φ1300x4800mm
Simultaneous closing device	With
Empty Closing Time	About 11s
The flux of Accumulator	3000 L/Min
Low Pressure Pump Flowing	355 ml/r
Power of Low pressure pump	18.5kw
High Pressure Pump Flowing	About 63 ml/r x2
Power of high pressure pump	22kw x2
Middle Pressure Pump Flowing	160 ml/r
Power of Middle pressure pump	45kw
Allowed Pressure	15 Mpa
Power	45kw
Max Pressure of Unit Plate Blank	48 Kgf/2
Control Method	Automatic pump station
Electrical Appliance	Siemens /Delta
Hydraulic Valve	Shanghai
Frame Pattern	Composite Frame
Thickness of Upper And  Lower Crossbeams	800mm
Thickness of Steel Plate	40,30,20,12mm
Thickness of Plateform above	300mm
Thickness of Steel Plate	35,30,20mm
Steel Plate Of Upright Column	40,12mm
Thickness of Active Crossbeam	450mm
Thickness of Steel Plate	30,20mm
Overall Dimensions	3200×2700×5100mm
Total  Weight	About 95,000Kg
