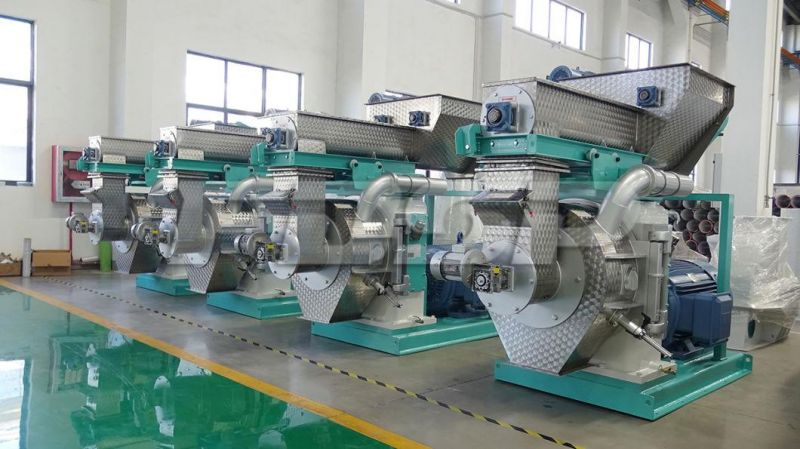

New Ring Die Biomass Wood Sawdust Burning Pellet Machinery
Jiangsu Liangyou Zhengda Co., Ltd.- Type:Ring Die Wood Pellet Machine
- Voltage:220V
- Automatic Grade:Automatic
- Controlling Mode:CNC
- Energy Saving:Energy Saving
- Certification:CE, ISO
Base Info
- Model NO.:WZLH420
- Warranty:Provided
- Customized:Customized
- Condition:New
- Color:Multi Color
- After-sales Service:Provided
- Material of The Machinery:Stainless Steel or Carbon Steel
- Size and Weight:as Per Requirements
- Motor Brand of Thte Main Pelletizer:Siemens
- Oil Seal of The Pelletizer:Imported From Germany
- Bearing Brand of The Pelletizer:SKF
- Transport Package:Iron,Wood Pallet or Box
- Specification:1000KG
- Trademark:FDSP
- Origin:Jiangsu China
- HS Code:8479300000
Description
Basic Info.
Model NO. WZLH420 Warranty Provided Customized Customized Condition New Color Multi Color After-sales Service Provided Material of The Machinery Stainless Steel or Carbon Steel Size and Weight as Per Requirements Motor Brand of Thte Main Pelletizer Siemens Oil Seal of The Pelletizer Imported From Germany Bearing Brand of The Pelletizer SKF Transport Package Iron/Wood Pallet or Box Specification 1000KG Trademark FDSP Origin Jiangsu China HS Code 8479300000Product Description
New Ring Die Biomass Wood Sawdust Burning Pellet MachineryWhat Materials Can Be Pelletized By Ring Die Wood Pellet Mill?
Nearly all forestry and agrowaste material can be made into wood pellets by our ring die wood pellet mill, such as: Wood Chips, Shaving, Sawdust, Groundnutshell, Sugarcane ,Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used for industrial boilers and large power plants as well as home heating.
Model | WZLH420 | WZLH508 | WZLH680 |
Ring die inner diameter (mm) | 420 | 500 | 688 |
Ring die working width(mm) | 90 | 100 | 110 |
Ring die linear speed (m/s) | 3.16 | 3.78 | 3.54 |
Number of clamp | 3 pcs | 3 pcs | 8 pcs |
Number of roller | 2 pcs | 2 pcs | 2 pcs |
Number of cutter | 1 pcs | 1 pcs | 1 pcs |
Motor power | 90+2.2+0.75 | 90+2.2+1.5 | 185+3.0+1.5 |
Motor rotation speed | 750 | 750 | 595 |
Ring die hole diameter(mm) | 6/8/10 | 6/8/10 | 6/8/10 |
