• Model NO.：JBT102B
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Transport Package：Carton Box
• Specification：465*430*515mm
• Trademark：ZD
• Origin：China
• HS Code：84659400
• Production Capacity：4 Sets,Week

Basic Info.

Model NO. JBT102B Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Transport Package Carton Box Specification 465*430*515mm Trademark ZD Origin China HS Code 84659400 Production Capacity 4 Sets/Week

Product Description

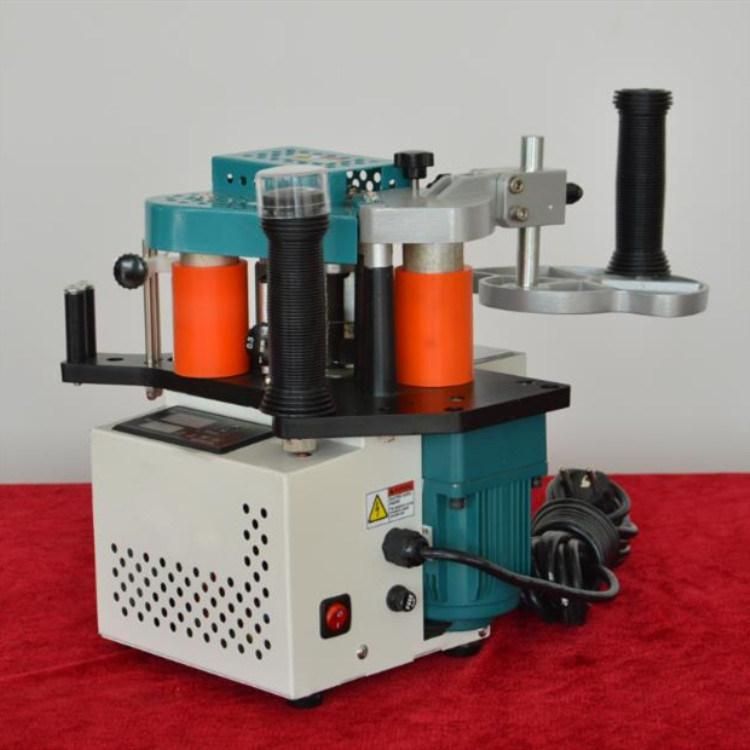

Portable Edge Bander JBT102B Double Glue Cover PVC Banding Machine




Technical Specifications:


Model	JBT80	JBT90	JBT102B
Banding thickness	0.3-3mm	0.3-3mm	0.3-3mm
Min. Edge diameter	40mm	40mm	40mm
Edge glue	Single glue cover	Single glue cover	Double glue cover
Shape of work piece	Straight&curve	Straight&curve	Straight&curve&bevel
Total power	765w	765w	765w
Banding width	45mm	45mm	10-60mm
Feeding speed	5m/min	0.5-5m/min	2-6m/min
Speed adjustment	constant	Variable speed	Variable speed
Motor power	15w	15w	25w
Temperature	120-150ºC	120-150ºC	120-180ºC
Glue pot volume	270ml	270ml	570g
Weight 1	14kg	14kg	14kg
Weight 2	34kg	34kg	34kg
Package size 1	375*300*420mm	375*300*420mm	375*300*420mm
Package size 2	465*430*515mm	465*430*515mm	465*430*515mm

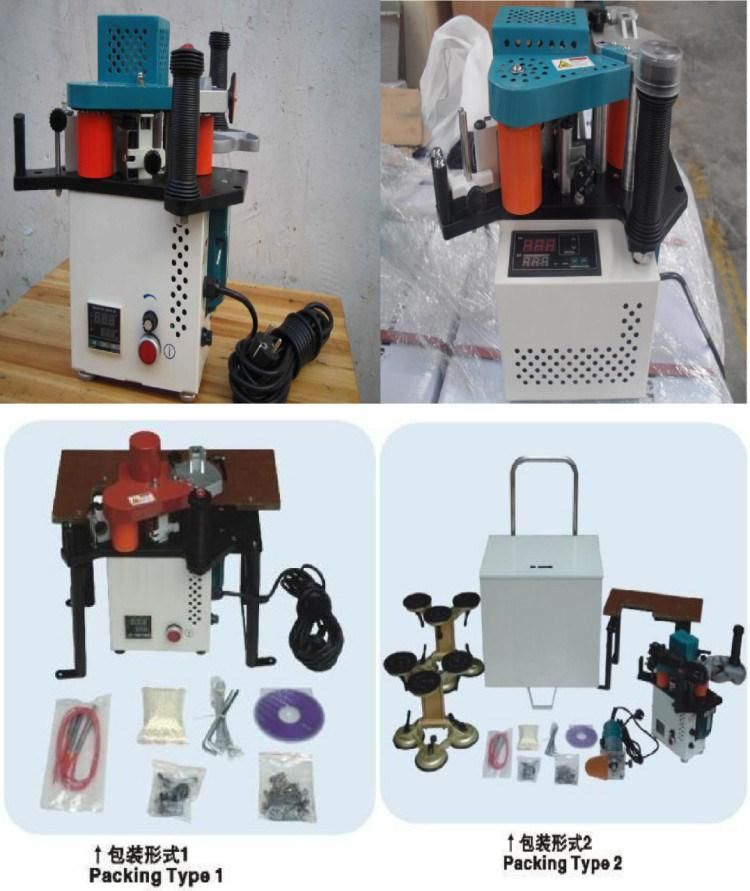

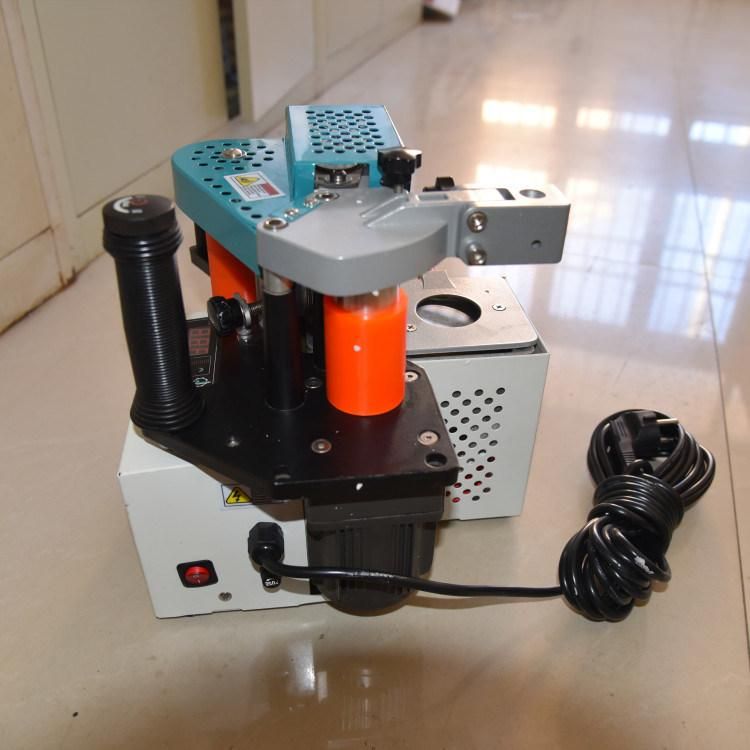

Detailed pictures:

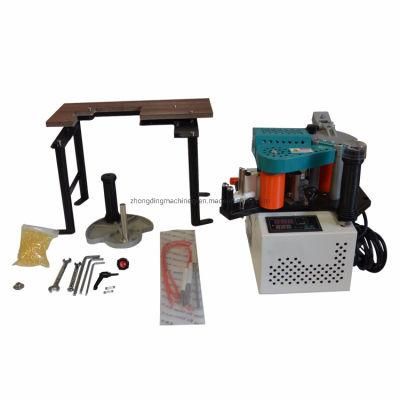

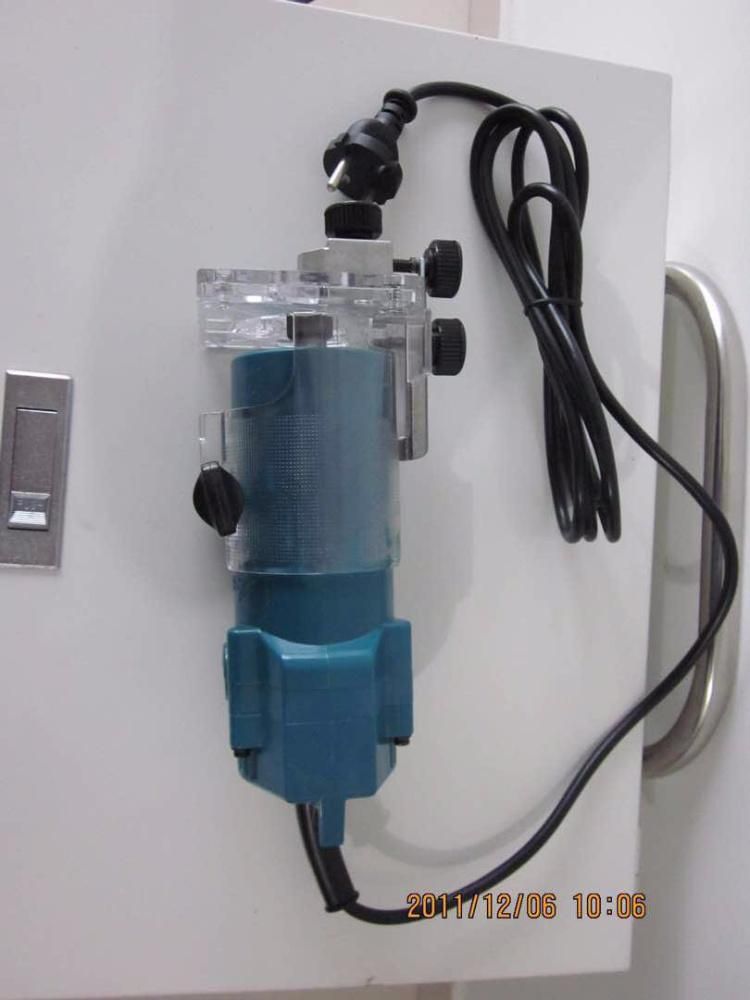

Electric trimmer, shelf and box are optional.





Packaging & shipping:

package: Carton box.



Payment: 30% T/T deposit, balance before shipment, or L/C at sight.


About us:






FAQ:

1. The MOQ is 1 set.
2. The delivery time is 15-20 days after deposit.
3. The voltage can be customized.
4. OEM service is available as we are factory.
5. Factory address: Wangtai twon, Jiaonan city, Qingdao, China. Welcome to visit us!



For more details, pls feel free to contact us.
