Making Charcoal Industrial Wood Briquettes Carbonization Furnace
Zhengzhou AG Machinery & Equipment Co., Ltd.- Purpose:Wood Briquettes Carbonization
- Carbonizing Time:6-24 Hours
- Capacity:6cbm, 8cbm, 10cbm
- Advantages:Environment Protection
- Furnace Temperature:430 Degree
- Power:1.5kw
Base Info
- Model NO.:THL
- Weight:6000kg
- Fuel Consumption:30-40kg
- Certification:CE
- Place Style:Vertical
- Range of Applications:Industrial
- Type:Carbonization Furnace
- Usage:Charcoal Briquette Plant
- Fuel:Briquette
- Transport Package:Container
- Specification:4CBM, 6CBM, 8CBM
- Trademark:AG
- Origin:Zhengzhou, China
- Production Capacity:200 Sets Per Month
Description
Basic Info.
Model NO. THL Weight 6000kg Fuel Consumption 30-40kg Certification CE Place Style Vertical Range of Applications Industrial Type Carbonization Furnace Usage Charcoal Briquette Plant Fuel Briquette Transport Package Container Specification 4CBM, 6CBM, 8CBM Trademark AG Origin Zhengzhou, China Production Capacity 200 Sets Per MonthProduct Description
Making Charcoal Industrial Wood Briquettes Carbonization FurnaceIntroduction of Carbonization Furnace:

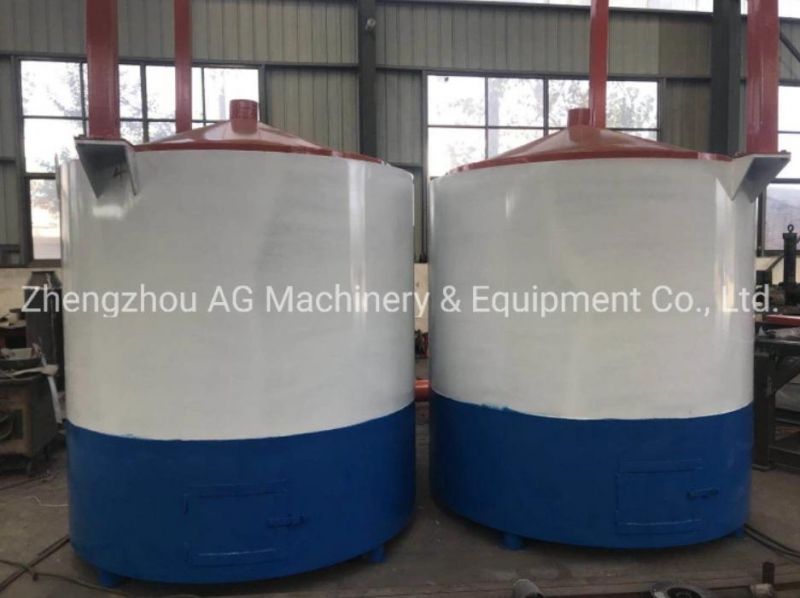

The hoisting carbonization furnace comprises a furnace body, a furnace cover, a heating chamber and an exhaust pipe. A carbonized inner tank is arranged in the furnace of the furnace body, and a cover is mounted on the carbonized inner tank, and an upper edge of the carbonized inner tank is fixed a downwardly folded annular flange, the downwardly folded annular flange is matched and fastened to the annular sealing ring fixed on the inner side of the inner side of the furnace, on the carbonized inner side wall, the carbonized inner casing is covered, and the furnace cover Hanging mounting ears are fixed on the top. The carbonization furnace is separated from the combustion chamber, and the movable installation of the carbonized inner tank can realize continuous operation.
One furnace body can be equipped with a plurality of carbonized inner tanks, and the carbonization inner tank is replaced without preheating, and the carbonization is
performed. The cooling of the gallbladder is completely separated from the furnace body, thereby greatly improving the efficiency of carbonization work, saving the number of equipment, saving labor and expenditure, good sealing effect, simple and novel overall structure, simple and safe operation, and very favorable for promotion.
Parameters of Carbonization Furnace:
Volume | 4m³ | 6m³ | 8m³ |
Power | 1.5KW | 1.5KW | 1.5KW |
Capacity | 1.5 tons/day | 2.5 tons/day | 3.5 tons/day |
Dimension | 2.3 x 1.7 x 2.0 (m) | 4*1.51*2.1 (m) | 5*1.51*2.1 (m) |
Weight | 4500kg | 5000kg | 5500kg |
Features of Carbonization Furnace:
1. The carbonization of the old-type furnace takes advantage of spontaneous combustion of biomass briquettes.

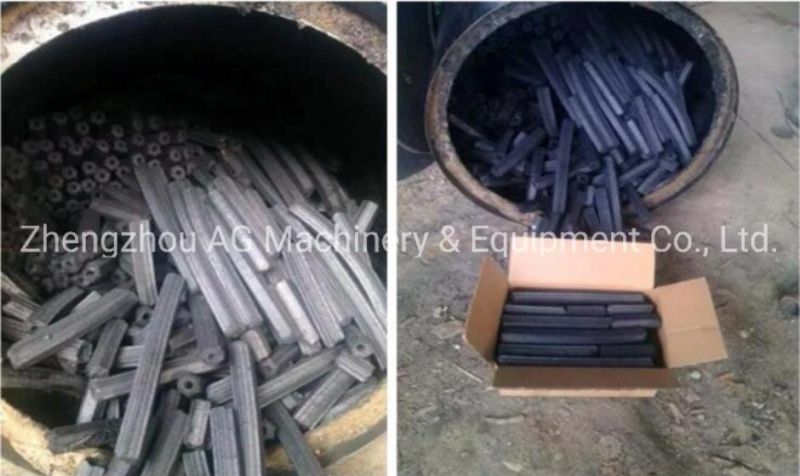

But the new-type furnace adopts the dry distillation of charcoal technology and also the output charcoals are with good quality and show metallic luster.
2. The production of old-type is sporadic, and the new type is continuous which improves the production efficiency to a great extent.
3. The old-type makes plenty of heavy smoke, even if with the cooling treatment, it still brings the serious air pollution.

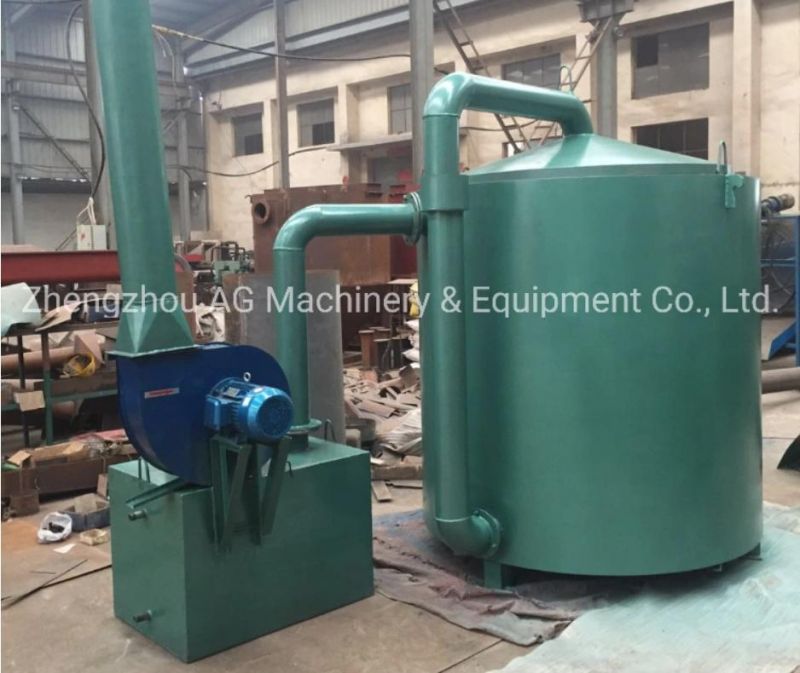

Different from the old-type furnace, the new-type does not exhaust the heavy smoke from the carbonization process to the air, oppositely, it collects the smoke goes into the burner through the pipes and burns as fuel gas for recycling use, to reach the aim of replacing the normal fuel and continue the carbonizing process.
The design of new-type furnace avoids the air pollution of heavy smoke exhausted.
4. The operation of old-type is quite complicated, before carbonization, the briquettes need to be put properly which wastes too much time and labour.
However, the briquettes can be put irregularly and then process carbonization directly, saving much time and labour.
5. The production efficiency of the old-type is low. Every 24 hours, the output of 5m³furnace is only around 1 ton.
By contrast, due to the design of continuous production, the new-type furnace can produce around 200 kg charcoals every 1-2 hours, The efficiency of the new-type is completely 4-5 times more than the old-type, which greatly reduce the expenses spent in a great amount of old-type equipments when target capacity is high.

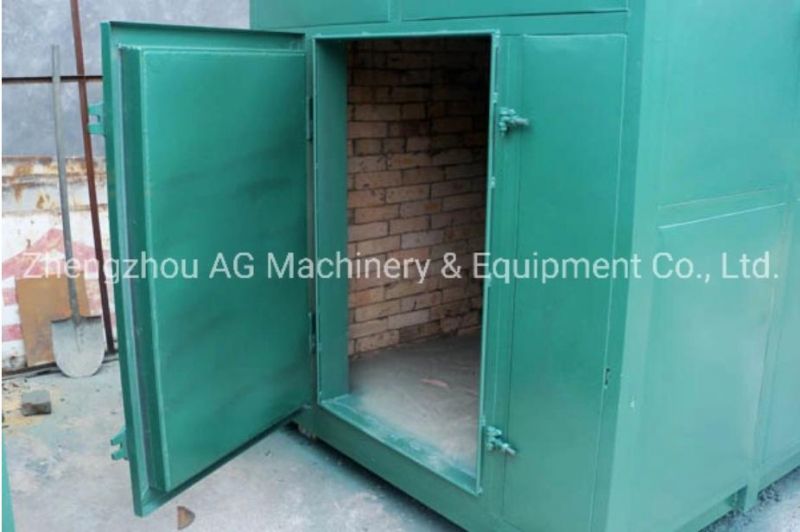

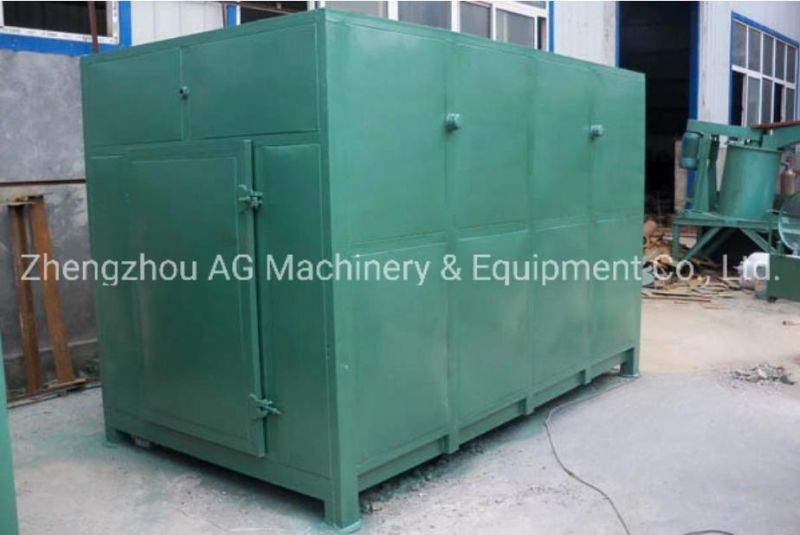

Square Shaped Furnace:

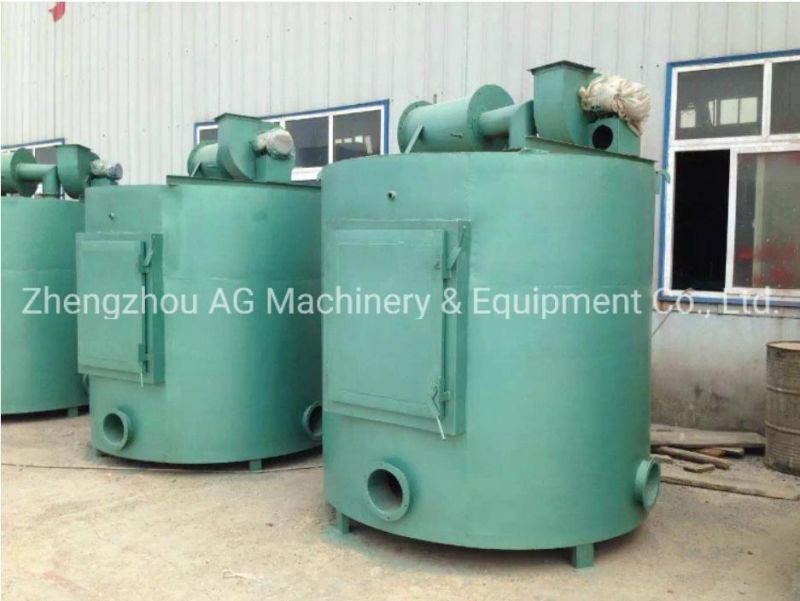

Round Shaped Furnace:
Package and Delievery of Carbonization Furnace:
