• Model NO.：YFK560
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Pellet Size：4-12mm
• Output：1-20 T,H
• Power：55-315 Kw
• Modle：Vertical Ring Die
• Raw Materials：Wood Chips, Rice Husk,etc
• Transport Package：20′gp,40′gp,40′hq & Standard Export Packing
• Specification：weight: 1-15 T
• Trademark：YUFCHINA
• Origin：Henan, China (Mainland)
• HS Code：84793000
• Production Capacity：20 Per Month

Basic Info.

Model NO. YFK560 Warranty 1 Year Customized Customized Condition New Color Multi Color Pellet Size 4-12mm Output 1-20 T/H Power 55-315 Kw Modle Vertical Ring Die Raw Materials Wood Chips, Rice Husk,etc Transport Package 20′gp/40′gp/40′hq & Standard Export Packing Specification weight: 1-15 T Trademark YUFCHINA Origin Henan, China (Mainland) HS Code 84793000 Production Capacity 20 Per Month

Product Description

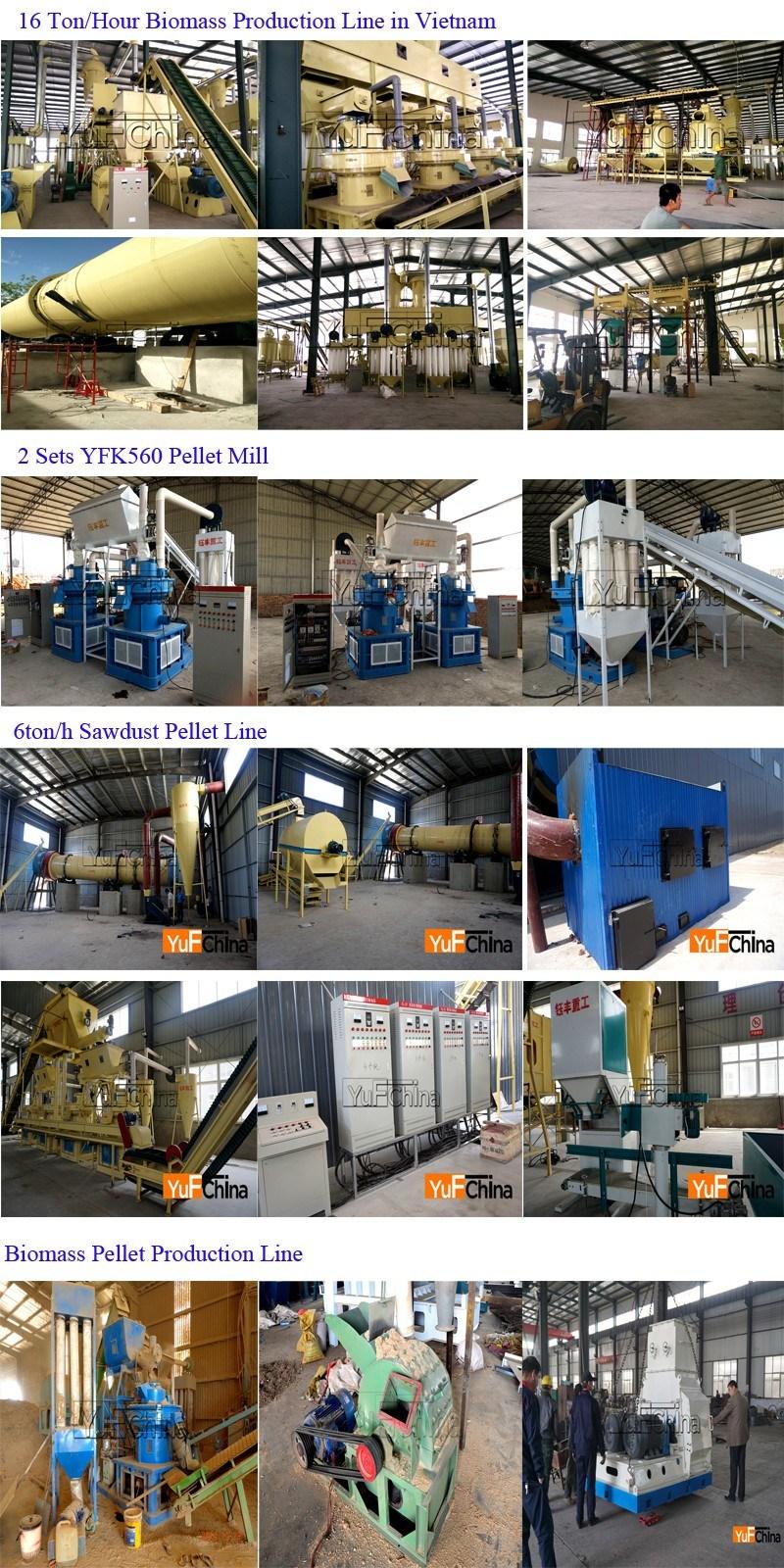

                     YUFENG Vertical Ring Die Sawdust Pellet Production  Line Machinery

1. Application:

   Vertical Ring Die Sawdust pellet Production line is the process of making waste materials into solid fuel for burning purposes.YFK series efficient centrifugal pellet mill is our initiative patented product in China through meticulous research and development. It is widely used for the recycling usage of wastes and tailings in biomass fuel plant,wood processing plant ,fertilizer plant,chemical factory,foctory,foodstuffs factory and brewery.

2. Raw material:

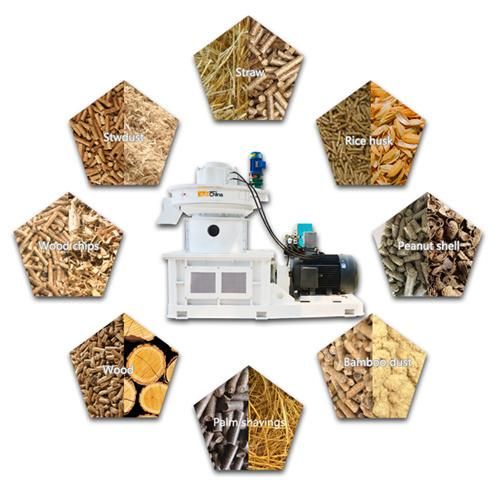

    Yufchina biomass wood pellet mill is able to produce cylindrical pellet, and thus be widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc.


3.Process:


a.Crushing Process:

 Depending on the different kinds of raw materials, we will supply suitable crushing machines.

1) When the raw material is wood log with diameter less than 300mm or tree stamp, our wood chipper machine and wood crushing machine are your best choices.

2) While Hammer Mill is widely used to crush each kind of straw, wood chip, tree branch, bark and leftover bits from agricultural wastes.

3) The suitable moisture content in the Crushing Process is less than 20%, and the thickness of wood chip is less 5mm.

b.Drying Process:

1) The best moisture content for pelletizing is about 8-15%.

2) Our advanced Rotary Dryer is made up of a Burning Stove and Main Rotary Dryer, which can reduce the moisture from 60% to 10%, and save about 30% energy consumption comparing the old Rotary Dryer.

3)Our burning stove is fueled by coal and wood material, which can save electricity consumption largely. If the clients want to use other fuel such as gas and electricity, one Burner is necessary, while extra cost will be charged.


c.Pelletizing Process:

1) raw mterials requirement:
     moisture : 8-15%
     feeding length size: less than 8mm

2) service life:
     ring die (alloy steel): 800-1200hrs;
     ring die (stainless steel): 1200-1800hrs;
     roller assembly: 700-800hrs.

d.Cooling Process:

1) after pelletizing: 60-80 degree, moisture content about 15%; soft and easy-crack;

2) after cooling: close to room temperature,moisture content abour 10%, and very hard.

3)according to the feedback of some foreign clients, the local climate is very humidity; They hope to cool the wood pellet with moisture 7-8oC.


e.Packing Process:

After cooling, the wood pellet will not directly enter into the fuel process. To avoid wood pellets be affected by damp. The packing process is necessary. In this process, the packing machine will pack the wood pellets into bags for storage, which is easy for transportation.


4.Technical parameters:


Model (m)	YFK560
Power(kw)	90
Pellet Size(mm)	Φ4-12
Inner Diameter(mm)	450
Production(t/h)	1-1.5
Dimension(mm)	2600*1300*2300
Weight(t)	6.3
Origin	Zhengzhou,Henan,China
Manufacturer	YUFENG

5.Features:

a. Vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.

b. Die fixed,rollers rotating,materials centrifugal,evenly distributed around.

c. Double-layer dies,up and down dual-use,high capacity,saving energy.

d. Separate discharge device to ensure the forming rate of pellets, reasonable design.

e. Main parts adopt high alloy wearable materials, and doubled lifetime.

f. 24 hours working with automatic lubrication system.



6.Our service:


a.Pre-sale
We adhere to the principle of acquiring maximum profit at minimum investment,while meeting the needs of each customer.

b.During-sale
We have production progress report each week with detailed description and photos, including raw materials tables, process and deep process records, testing data sheest, etc.

c.After-sale
Warranty period of the equipment is 1 year.During the warranty period, the damage caused by non-human factor, YUFENG will be responsible for the repair or replacement.



7.About Us

Zhengzhou Yufeng Heavy Machinery Co., Ltd is one of biggest mining machinery and building material production machinery manufacturer and supplier in China. YUFENG Machinery features a unique combination of rotor design, wear material and crushing equipment design. This combination has proved revolutionary.

If you have any questions, please feel free to contact us.

   Zhengzhou Yufeng Heavy Machinery CO.,LTD
    Tel: +86 371 60395600
    Fax:+86 371 67681159

    Website: yufengzg.en.made-in-china.com
    Address: West Section of Gongye Road,Shangjie Industry Area,Zhengzhou,Henan,China
