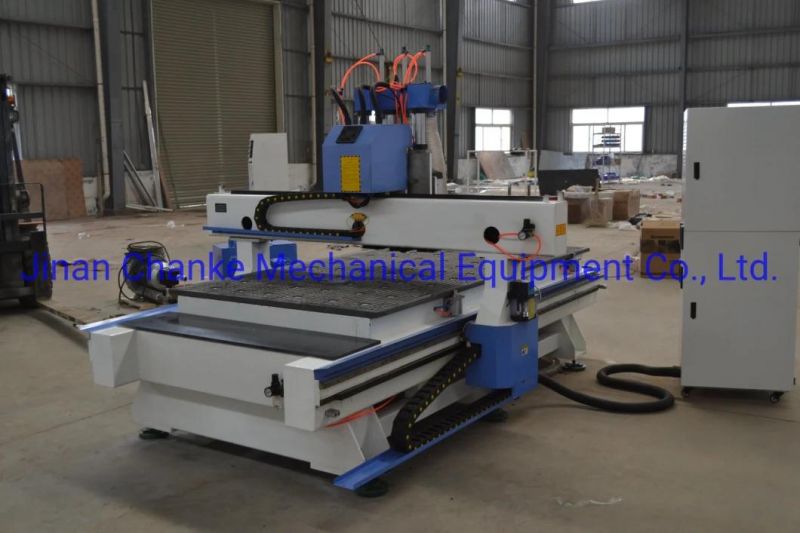

Multi Spindle 4 Heads 4spindle Wood 3D CNC Router for Woodworking

Jinan Chanke Mechanical Equipment Co., Ltd.
  • Condition:New
  • CNC or Not:CNC
  • Voltage:380V
  • Transport Package:Plywood Packing
  • Specification:3200x2800x500mm
  • Trademark:CHANKE

Base Info

  • Model NO.:CK1325
  • Origin:Shandong China
  • HS Code:8465990000
  • Production Capacity:500

Description

Basic Info.

Model NO. CK1325 Origin Shandong China HS Code 8465990000 Production Capacity 500

Product Description

Main Feature
*Four air cooled spindlem  (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
*HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
*High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,
ensuring high speed and high precision at same time.

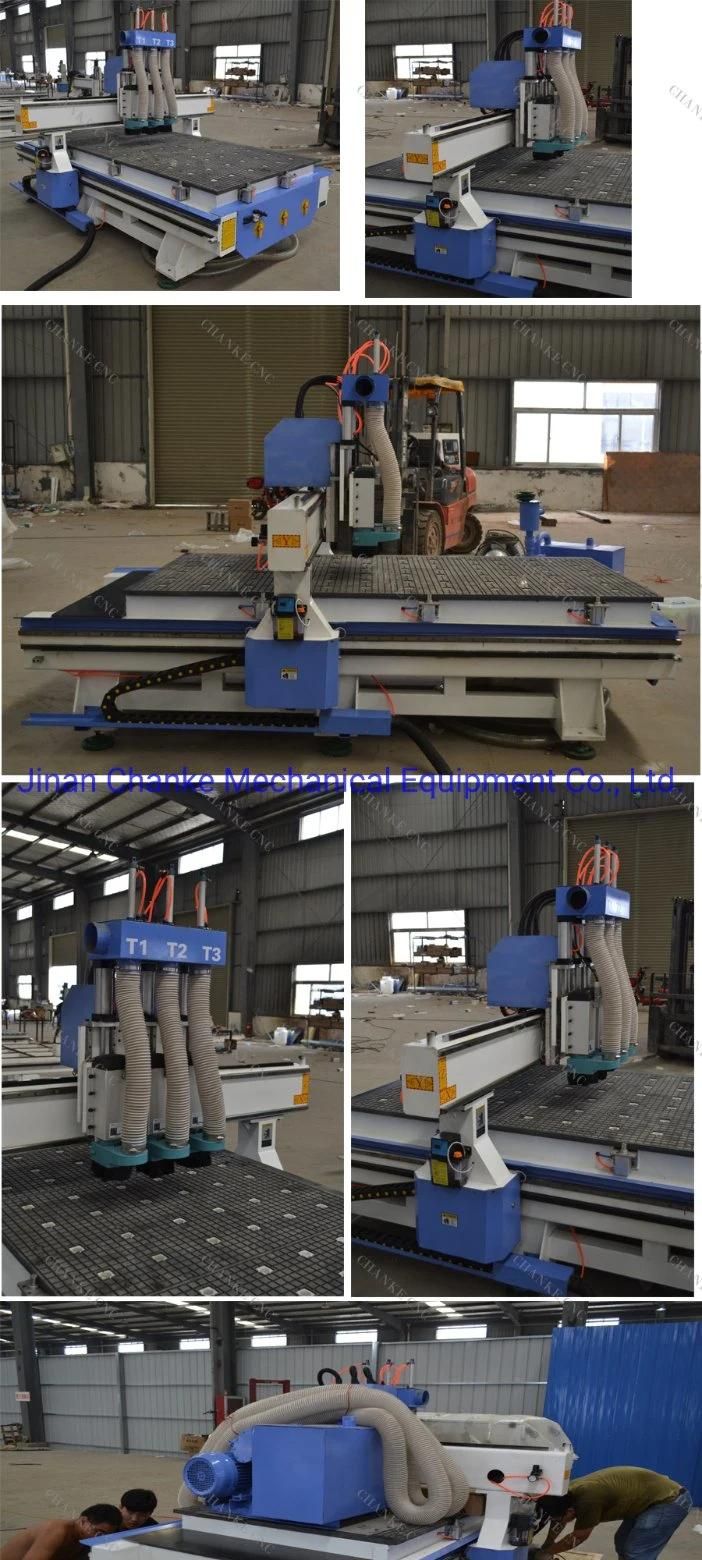

*Pneumatic ATC for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.
*Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
*Control system:We use the advanced Dsp, Nc-studio control system, Syntec from Taiwan or OSAI from Europ.

Technical Date
ItemModelCK1325
1Working area1300*2500*250mm
2Feeding height250mm
3X/Y/Z axis reposition accurancy+/- 0.02mm
4Max running speed50m/min
5Max working speed30m/min
6X/Y axis transmission Gear and rack
7Z axis transmission Ball screw
8Guide railTaiwan HIWIN square guide rail
9Working tableVacuum and T-slot table
10Spindle power4.5kw air cooled spindle * 4pcs
11Max spindle speed18000 rpm/min
12ColletER32
13Control systemNK260 or Syntec control system
14Motor Leadshine servo motor / Yaskawa servo motor
15Working voltage 380V/ 3P/ 50HZ -60HZ
16G.W./ N.W.1800KG / 1600KG
17Command G Gode
18Computer interfaceUSB port
19Limit switchJapan Omron
