Rbt Five 5 Axis Non-Metal CNC Machine

Fujian RBT Intelligent Equipment Co., Ltd.
  • After-sales Service:Technical Support, Online Support, Spare Parts
  • Warranty:One Year
  • Structure:Multi-Axis CNC Working
  • Precision:High Precision
  • Controlling Mode:CNC
  • Automation:Automatic

Base Info

  • Model NO.:RB-F5-1825-Z08
  • Coordinate Boring Machine Location Type:5 Axis
  • Coordinate Boring Machine Location Way:Laser
  • Diamond Boring Machine Layout:Multiple-Sided
  • Diamond Boring Machine Spindle Configuration:Horizontal
  • Diamond Boring Machine Spindle Number:Multiple-Spindle
  • Certification:CE, ISO, FDA
  • X Axis Effective Stroke:1800mm
  • Y Axis Effective Stroke:2500mm
  • Z Axis Effective Stroke:800mm
  • B-Axis Rotation Angle:+,- 130 Degree
  • C-Axis Rotation Angle:+,- 540 Degree
  • X/Y Axis Maximum Speed:50m,Min
  • Z Axis Maximum Speed:20m,Min
  • Repeat Accuracy:+,-0.05mm
  • Voltage:380V
  • Total Power:8.5kw
  • Spindle Power:3kw (Customizable)
  • Frequency:50Hz
  • Weight:2.9t
  • Application & Function:Composite Materials Processing
  • OEM:Machine Can Be Customized as Required
  • Transport Package:Export Safety Packing (Customized Packing)
  • Specification:L4950*W2610*H3982mm
  • Trademark:RBT
  • Origin:Quanzhou, China
  • Production Capacity:200set,Month

Description

Basic Info.

Model NO. RB-F5-1825-Z08 Coordinate Boring Machine Location Type 5 Axis Coordinate Boring Machine Location Way Laser Diamond Boring Machine Layout Multiple-Sided Diamond Boring Machine Spindle Configuration Horizontal Diamond Boring Machine Spindle Number Multiple-Spindle Certification CE, ISO, FDA X Axis Effective Stroke 1800mm Y Axis Effective Stroke 2500mm Z Axis Effective Stroke 800mm B-Axis Rotation Angle +/- 130 Degree C-Axis Rotation Angle +/- 540 Degree X/Y Axis Maximum Speed 50m/Min Z Axis Maximum Speed 20m/Min Repeat Accuracy +/-0.05mm Voltage 380V Total Power 8.5kw Spindle Power 3kw (Customizable) Frequency 50Hz Weight 2.9t Application & Function Composite Materials Processing OEM Machine Can Be Customized as Required Transport Package Export Safety Packing (Customized Packing) Specification L4950*W2610*H3982mm Trademark RBT Origin Quanzhou, China Production Capacity 200set/Month

Product Description

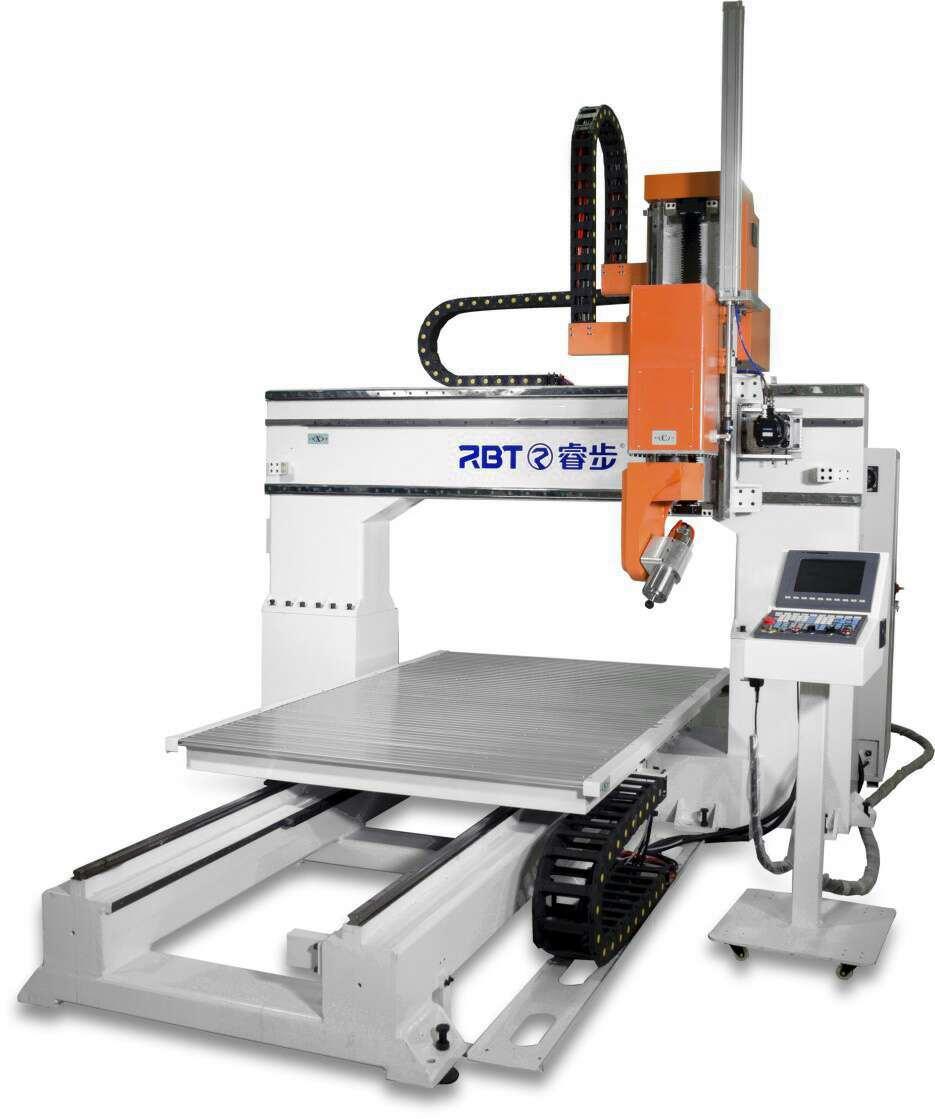

RBT Five 5 axis non-metal CNC machine

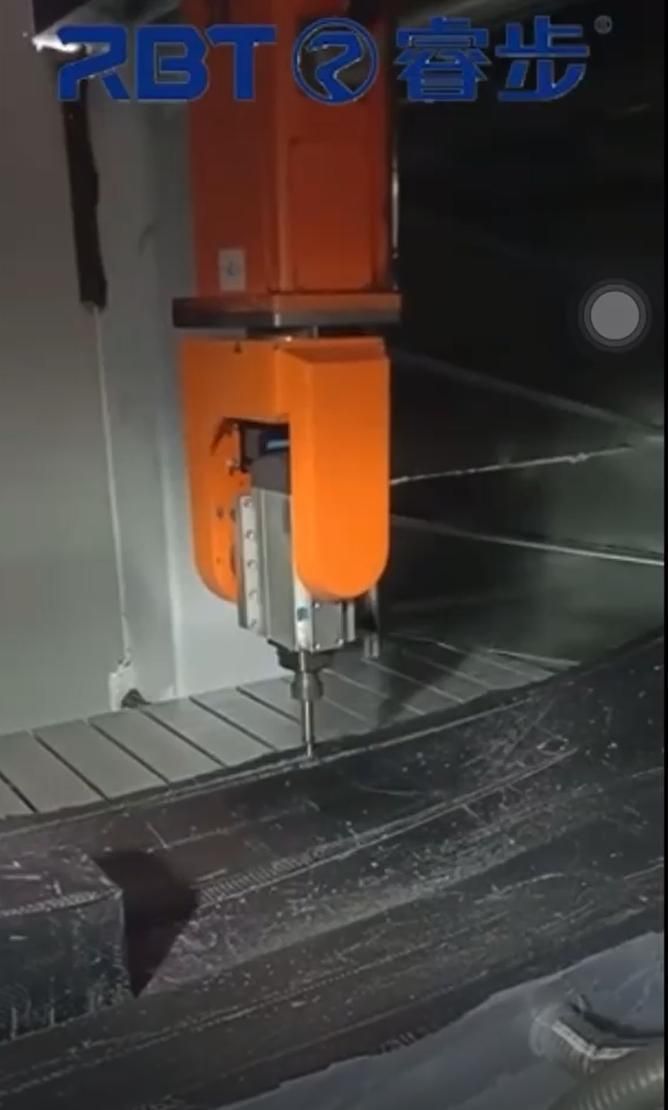

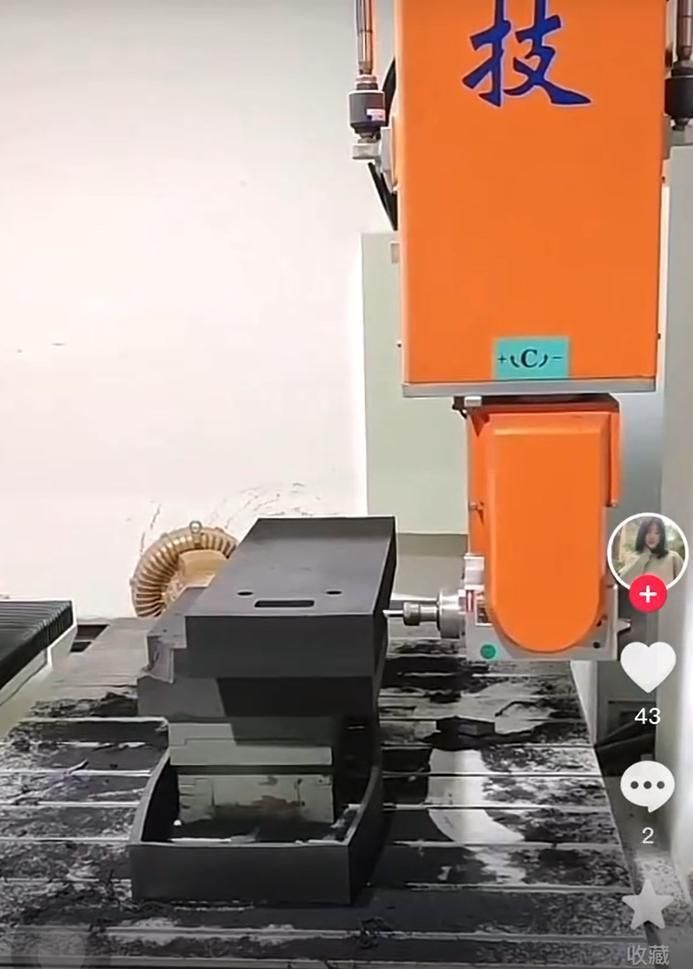

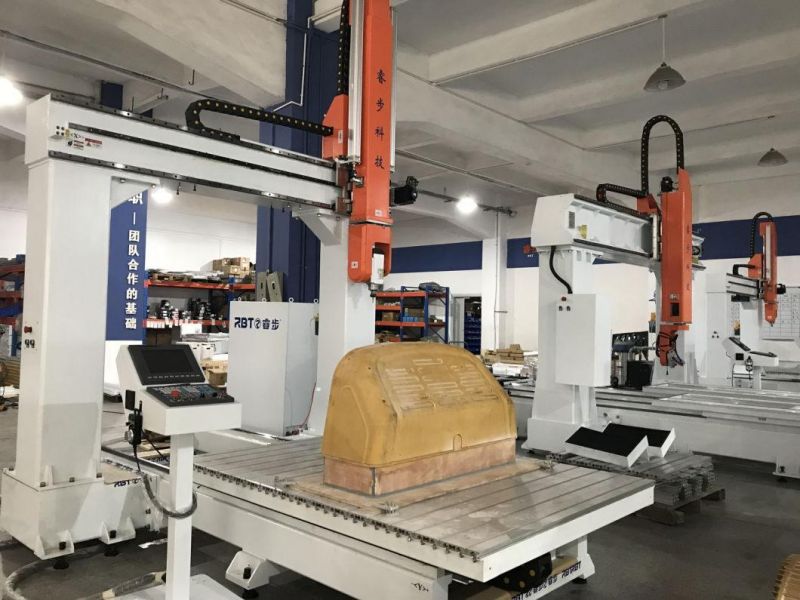

Rbt Five 5 Axis Non-Metal CNC MachineRbt Five 5 Axis Non-Metal CNC MachineRbt Five 5 Axis Non-Metal CNC MachineRbt Five 5 Axis Non-Metal CNC Machine

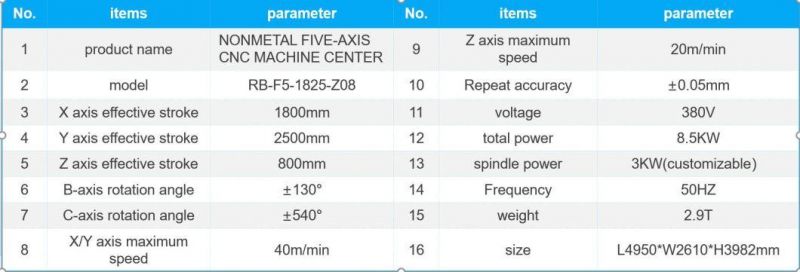

Parameters
Rbt Five 5 Axis Non-Metal CNC Machine




Machine Feature

1. Processing carbon fiber and its composite material products, the finished material for three-dimensional or multidimensional special-shaped cutting, drilling, etc.

2. Cutting, first of all, carbon fiber material products of high elastic modulus, very hard, not easy to process, and ruibu five-axis machining center spindle is imported spindle, fast speed, fast cutting.

3.
 Drilling, especially side drilling, need spindle swing Angle, five axis machine tool is imported double swing head spindle, can achieve 360° swing Angle, drilling processing.



 Application
Drilling, Punching, trimming and cutting of composite materials such as  carbon fiber, glass steel, resin, plastic, acrylic, XPE,  styrofoam foam (EPs), gypsum


Suitable Industry:
Aerospace, rail transit;
Car interior and exterior;
Composite materials, molds;


Home appliances, furniture, ceramic sanitary ware, etc.

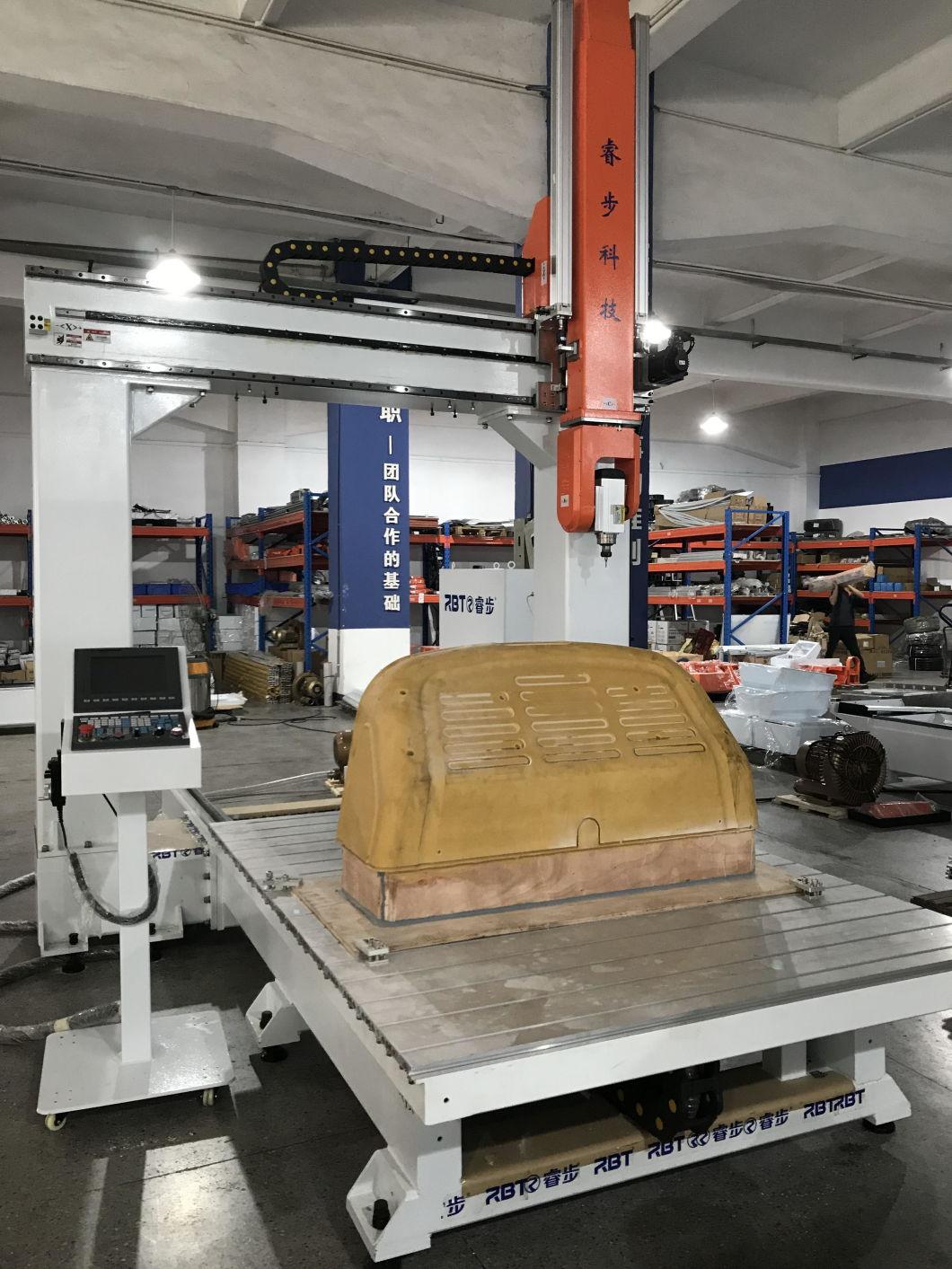

Rbt Five 5 Axis Non-Metal CNC Machine
Rbt Five 5 Axis Non-Metal CNC Machine

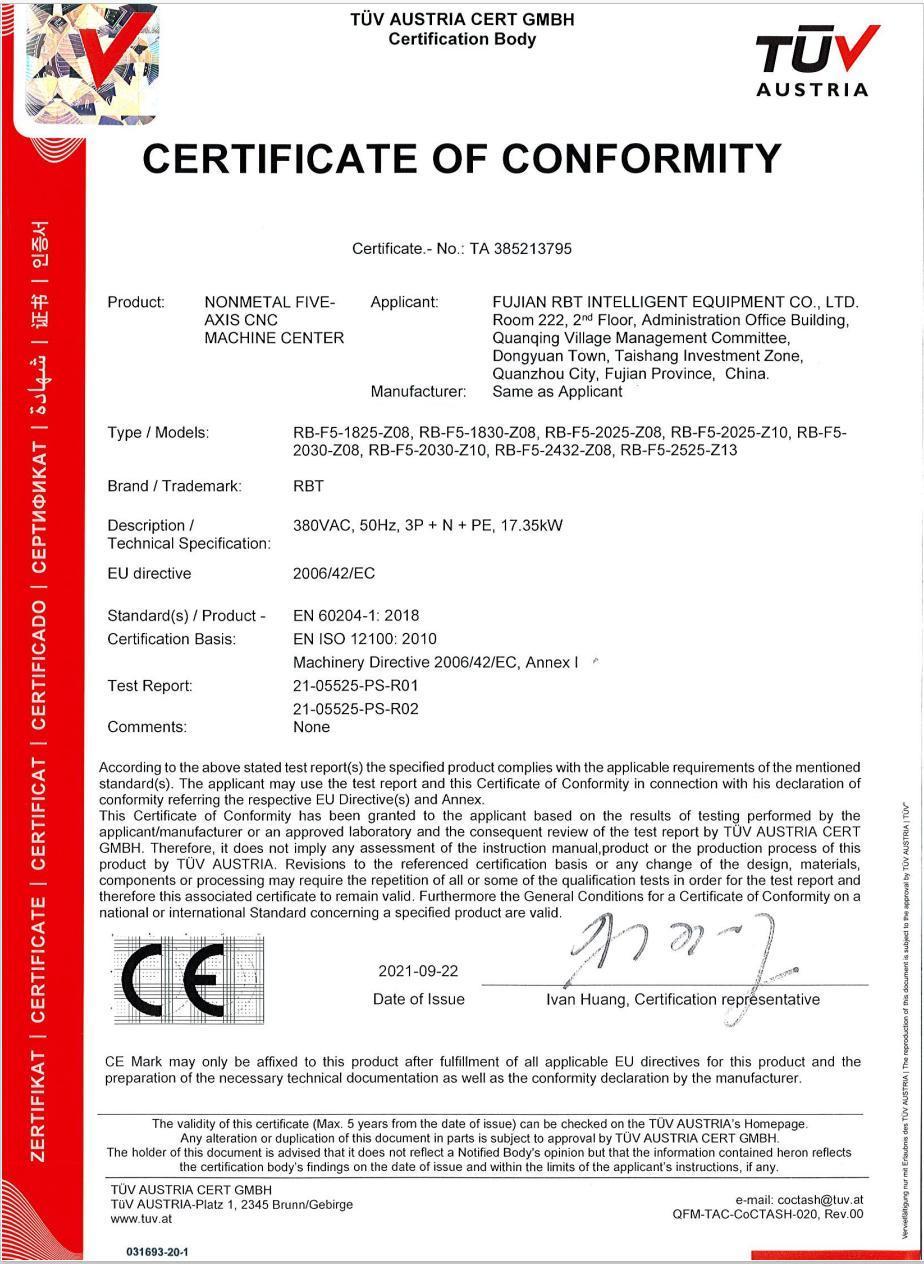

CE Certificate:
Rbt Five 5 Axis Non-Metal CNC Machine






PACKING & DELIVERY

1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.

Rbt Five 5 Axis Non-Metal CNC MachineRbt Five 5 Axis Non-Metal CNC MachineRbt Five 5 Axis Non-Metal CNC MachineRbt Five 5 Axis Non-Metal CNC Machine





FAQ

Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce or the spare parts.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How is your development ability?
A: We have a strong engineer team to support the drawing, technology proposal, test and certification; We can customize the machine per customer requirement.
Q7: How about your after sales service?

A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
