• Model NO.：GD-45-90
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Model No.：Gd-45-90
• Weight (Kg)：1000
• Tilting Saw Blade：0-90 Degree
• Blades Speed (U/Min)：60~114m,Min
• Dimension：3200*1100*1200mm
• Application：Wood Board Cutting
• Key Selling Points：Easy to Operation
• Gross Cut Capacity：200mm
• Saw Blade：300mm
• Width of Cut：1250mm
• Main Motor Power：5.5kw
• Scoring Motor Power：0.75kw for Normal, 1.1kw for Remake
• Max Cutting Thickness of 45 Degree：60mm
• Max Cutting Length：1600-3800mm
• Max Cutting Height(300mm)：80mm
• Transport Package：Plywood Case
• Specification：3200*1100*1200mm
• Trademark：Guandiao
• Origin：Shangdong, China
• HS Code：8465990000
• Production Capacity：10000pieces,Year

Dimensions sliding table3200× 370mmGross cut capacity3200mmWidth of cut between saw blade and rip fence1250mmSaw blade φ300mm(φ 250-φ 350)Height of cut φ 300mm80mmHeight of cut with saw blade at 45°55mmSpeed of main saw blade4000/6000rpmSpindle diameter30mmTilling saw blade0-45°Main motor4kwScoring saw blade120mm






Application

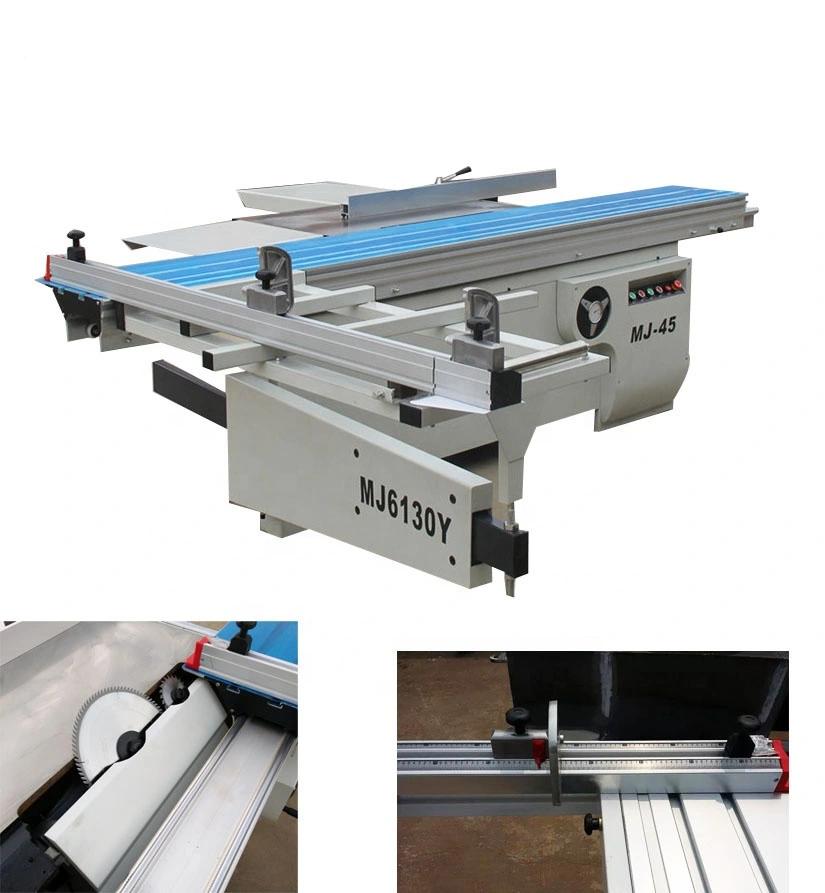

Sliding Saw machine is mainly used for cutting sheets into sized parts.It is easy to cut plywood
and melamine sheets into cabinet components.Our sliding table saw is applied to processing all
kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, solid
wood and others wood.





Company ProfileShandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,
production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting
machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam
CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting
machine, etc.



FAQ1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service
5.We accept the ODM,OEM
