Wide Belt Sander Machine for Making Plywood

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Type：Belt Wood Sander
  • Automatic Grade：Automatic
  • Variable Speed：Variable Speed
  • Certification：CE, ISO, FDA
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：SR13A
  • Color：Customized
  • Working Application：Plywood,Blockboard,Particleboard
  • Working Voltage：380V,415V,440V and So on
  • Feed Speed：10-70m,Min
  • Working Width：40-1300mm
  • Working Thickness：3-110mm
  • Transport Package：Container
  • Specification：2120x2980x2440mm
  • Trademark：METRO
  • Origin：China
  • HS Code：8465930000
  • Production Capacity：1000sets,Year

Description

Basic Info.

Model NO. SR13A Color Customized Working Application Plywood/Blockboard/Particleboard Working Voltage 380V/415V/440V and So on Feed Speed 10-70m/Min Working Width 40-1300mm Working Thickness 3-110mm Transport Package Container Specification 2120x2980x2440mm Trademark METRO Origin China HS Code 8465930000 Production Capacity 1000sets/Year

Product Description


Product Description:Automatic Plywood Wide Belt Sander Machine1. Main features:

The machine frame adopts welding integral structure to improve the machine's rigidity and service life of the machine.
The roller is made of steel and has been Dynamic balance detected precisely,which makes running smoothly and improves the sanding power.
The feeding drive adopts frequency-controller and conveyer belt,that can get high precise thickness.
The beam is strong and reliable ,which supplies a stable sanding precision.
2. Main technical specifications:
ModelSR13A
Working width40-1300mm
Working thickness3-110mm
Working length≥750mm
Abrasive belt speed20m/s
Feed speed10-70m/min
Size of abrasive belt (WxP)1330x2615mm
Total motor power64Kw
Main motor55Kw
Working air pressure0.55Mpa
Consumption of compressed air0.1m3/min
Volume of sucked air10000m3/h
Speed of sucked air25-30m/s
Overall dimension (LxWxH)2120x2980x2440mm
Net weight6500Kgs

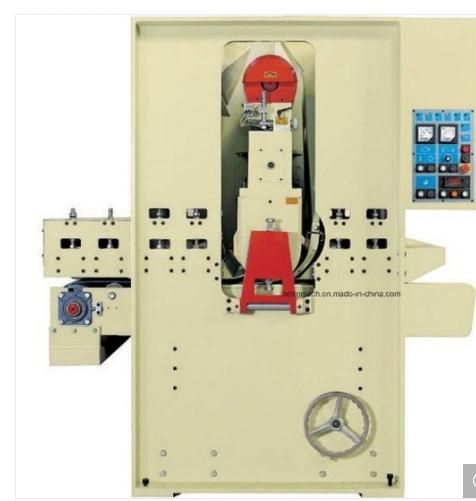

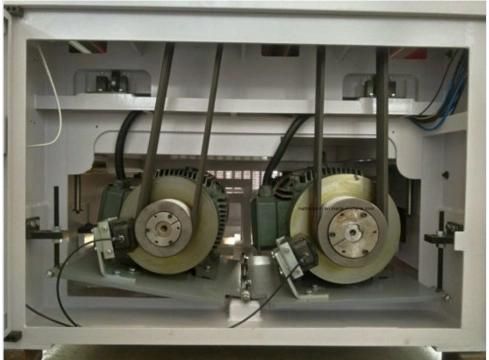

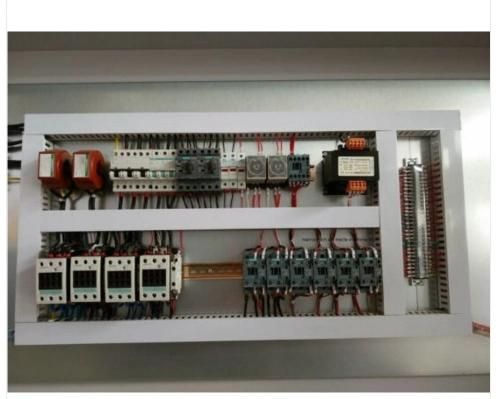

3. More Machine Pictures
Wide Belt Sander Machine for Making Plywood
Wide Belt Sander Machine for Making Plywood
Wide Belt Sander Machine for Making Plywood
4. Service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
