• Model NO.：ZD600
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Transport Package：Plywood Case
• Specification：4300*900*1500mm
• Trademark：ZD
• Origin：China
• HS Code：84659400
• Production Capacity：2 Sets,Week

Basic Info.

Model NO. ZD600 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized Transport Package Plywood Case Specification 4300*900*1500mm Trademark ZD Origin China HS Code 84659400 Production Capacity 2 Sets/Week

Product Description

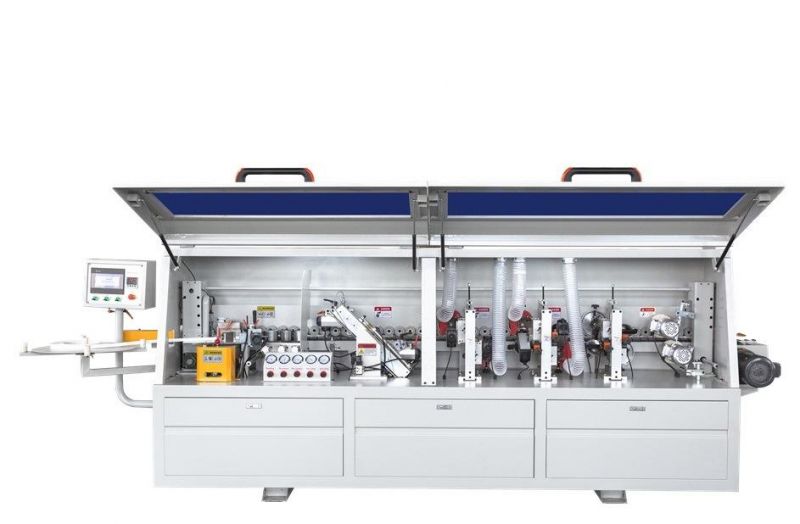

ZD600 Automatic Edge Bander Machine for Woodworking


Technical Specifications:

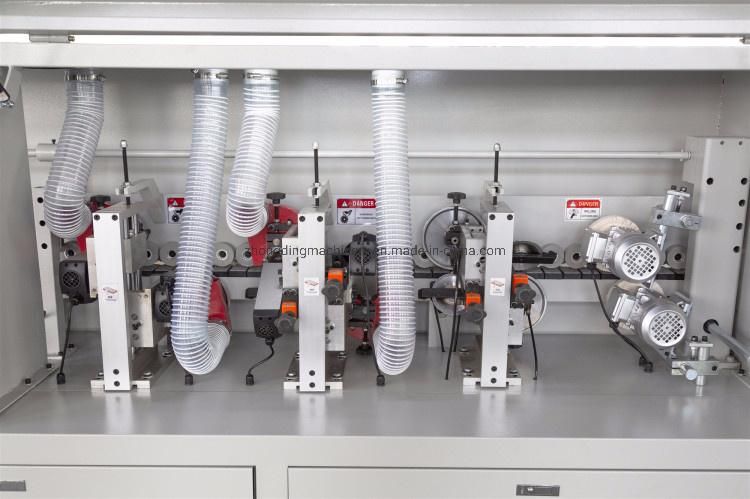

Functions: Gluing, edge banding, end trimming, rough trimming, fine trimming, scraping, buffing.


Model	ZD600
Banding tape thickness	0.4-3mm
Banding tape width	10-60mm
Workpiece thickness	10-60mm
Workpiece length	>=100mm
Workpiece width	>=50mm
Heating power	1.5kw

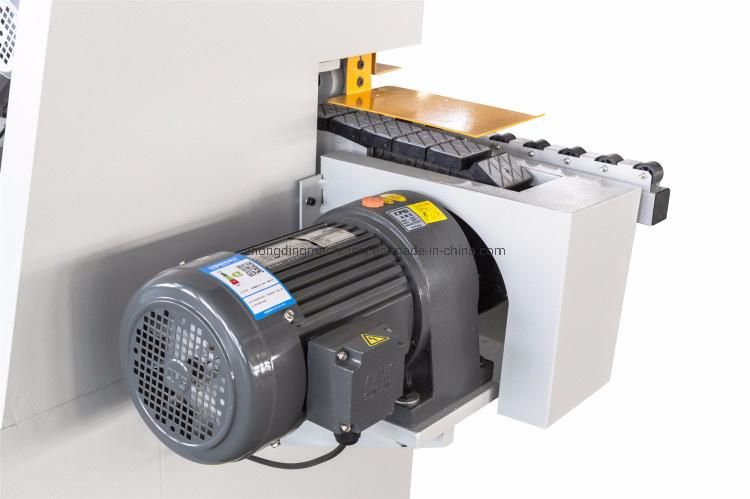

Feeding motor power	2.2kw

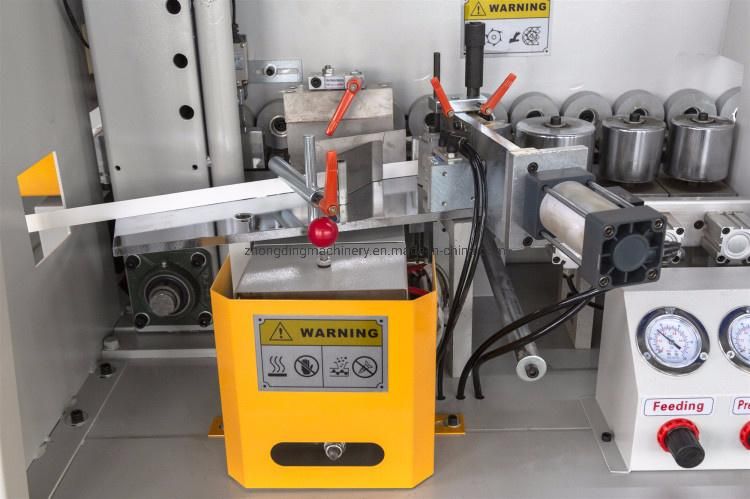

Glue spreading motor power	0.37kw

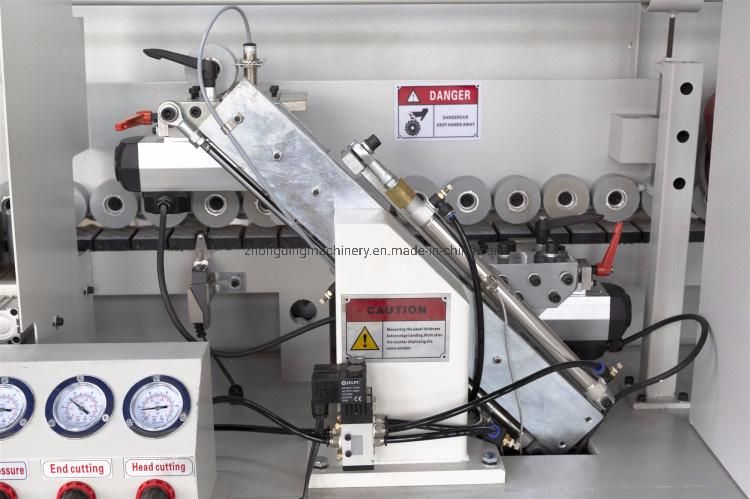

End trimming motor power	0.55kw*2
Rough trimming motor power	0.75kw*2
Fine trimming motor power	0.75kw*2
Polishing motor power	0.18kw*2
Feeding speed	13m/min
Air pressure	0.7Mpa
Overall dimension	4300*900*1500mm

Adopt to the linear sealing of PVC,wood plank and veneer etc.
1. Using imported quality engines and electric components
2. Serialized products,a wide range of selection by customers
3. High precision and efficiency

Advantages

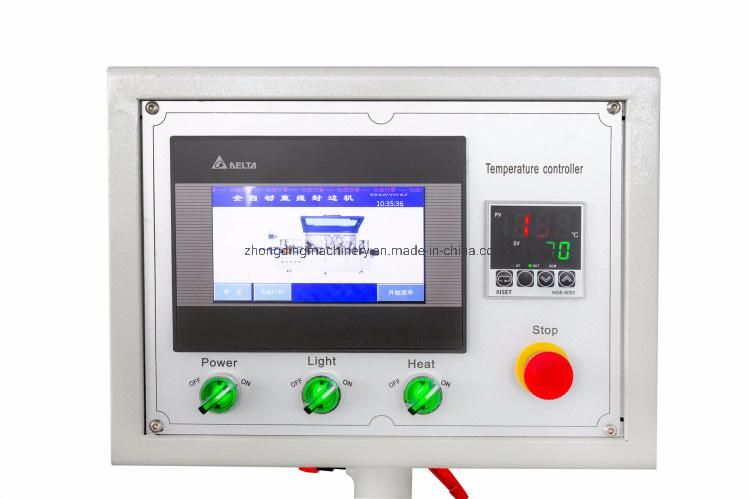

1). Multi functional control interface, pneumatic control, no manual tool adjustment, easy to use, no need for special post skill training.

2). Super cost performance
The equipment can meet the basic needs of small workshop edge sealing, and the price is very close to the people. It is suitable for personal or small workshops with low requirements, and can meet the simple personal DIY needs, while the equipment cost threshold is very low, which is easier to start.

3).Exquisite electricity saving
The equipment covers an area of only 4m², which is especially suitable for small workshops with tight production space. The total power of the equipment is only 9.5kw, with ultra-low power consumption and lower power consumption pressure.
Detailed pictures:
