• Model NO.：FX15030
• Working Area：15*3m
• Spindle：9kw Hsd and Real 4 Axis
• Laser Power：180W
• CNC Controller：Taiwan Syntec
• Laser Contoller：Rd6442
• Transport Package：Plywood
• Specification：15030
• Trademark：RUBY
• Origin：China
• HS Code：8456110090
• Production Capacity：100PC,Year

Basic Info.

Model NO. FX15030 Working Area 15*3m Spindle 9kw Hsd and Real 4 Axis Laser Power 180W CNC Controller Taiwan Syntec Laser Contoller Rd6442 Transport Package Plywood Specification 15030 Trademark RUBY Origin China HS Code 8456110090 Production Capacity 100PC/Year

Product Description

Large format 15x3m laser cutter and cnc router 2 in 1 machine

Features:
  15*3m working area, can meet up demands of large working area. laser cutter and cnc engraver all-in-one, with one machine body, but double usage, double function, can save big space.

Specifications:

Laser Part:

RECI W8 laser tube, 150-180w

RD6442 controller

Red dot pointer

15*3m honeycomb working table

Air compressor

Oxygen assistance device for metal cutting

WIFI transmission support

Exhaust fan

CW-5000 chiller

RD work Software/Driver for Autocad, Coreldraw

Router Part:

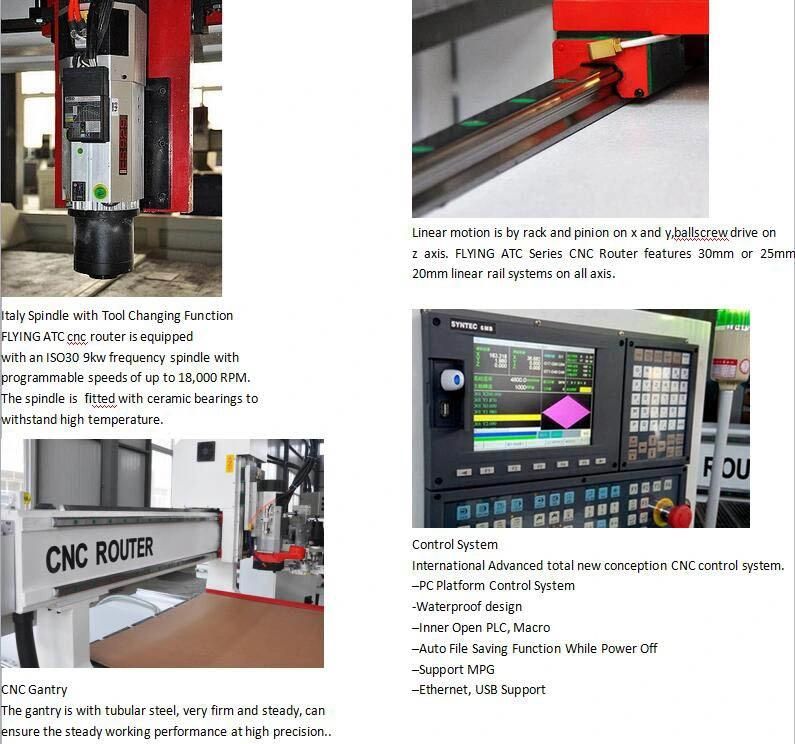

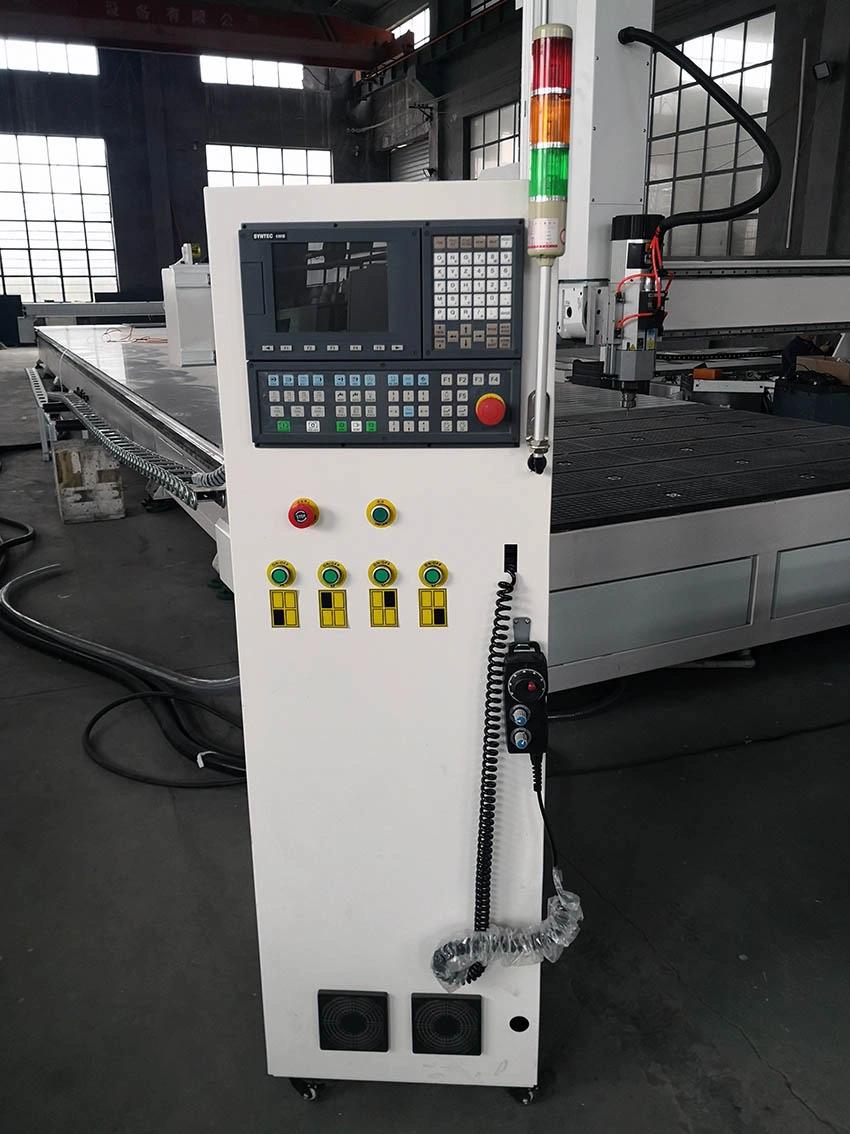

Taiwan Syntec controlling system

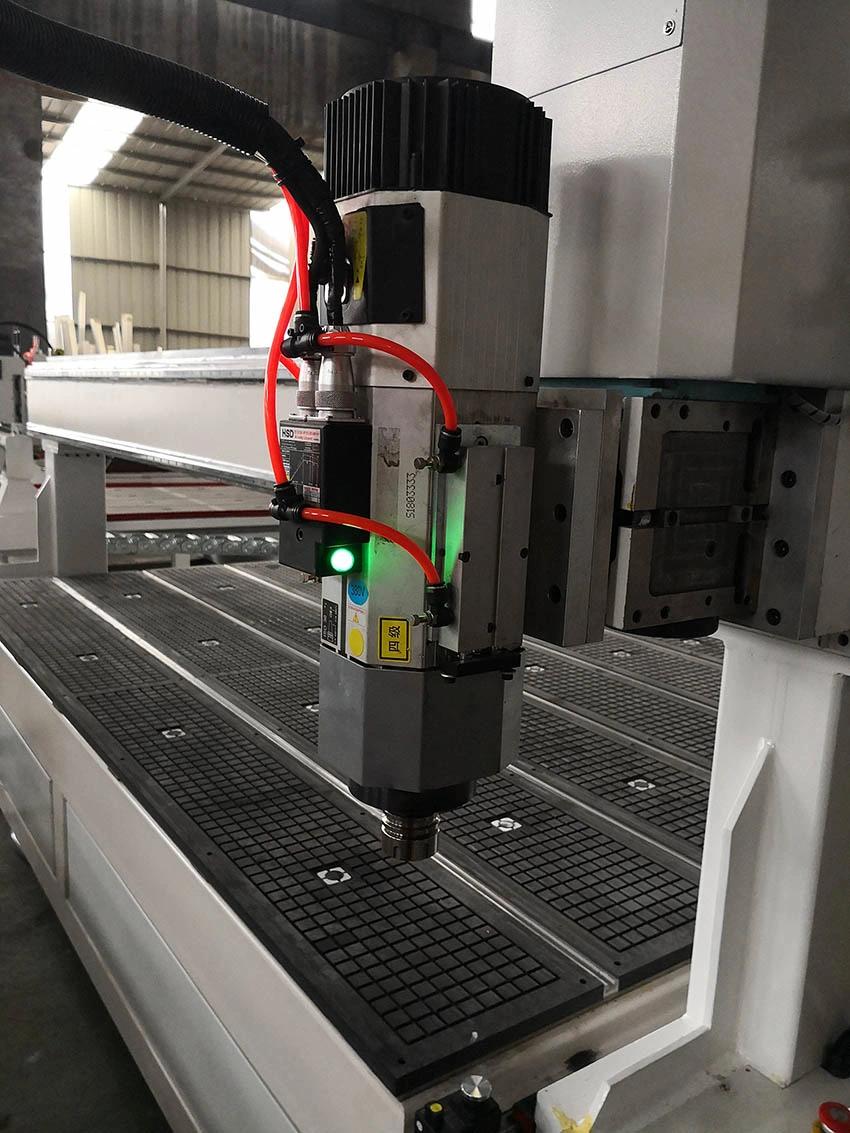

4 axis/4.5kw spindle/Z axis 50cm height

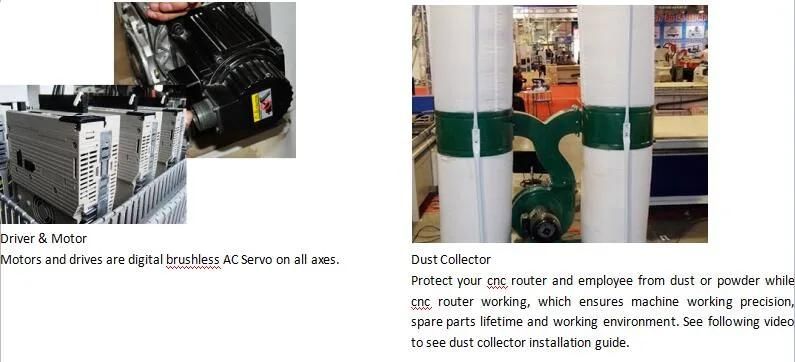

Yaskawa Servo motors

Delta Inverter

vacuum and T-slot

Automatic oil lubrication system

Rack and pinion for X/Y axis

Germany imported ballscrew for Z axis

Taiwan Hiwin rail linear bearing

Dust Collector(double bags)

Some other improvements:
1. The bed is changed to square gauge and rack side hanging, the joint is positioned in three directions to ensure that there is no size and position error at the butt joint,

2  The drag chain trough is externally installed,  to facilitate the stability of the second rapid installation of the equipment.( when machine arrive to you, or you need to move the machine to another place-- second installation)

3.  Now choose SYNTEC omnibus system and SYNTEC motor drivers of the ominibus to ensure the seamless connection of operation and transmission operation. This is to ensure that there will not have any size errors when we processing, if it does,  the motors will feed back the data to the system, and the system will issue a command to the motors to correct/compensate for the size error.







Samples Shown:
