High Quality Automatic Five Spindles Four-Side Planer

Qingdao Samac International Trading Co., Ltd.
  • Warranty：1 Year
  • Type：Four-Side Planer
  • Working Depth：100-200mm
  • Working Width：20-200mm
  • Motor Power：＞10Kw
  • Spindle Speed：＞5000rpm

Base Info

  • Model NO.：RMB520U
  • Process Type：Heavy Processing
  • Certification：CE
  • After-sales Service：1 Year
  • Feeding Speed：5-35m,Min
  • Transport Package：Soft Packing & Plywood Packing
  • Specification：RMB520U
  • Trademark：SAMACH
  • Origin：China
  • Production Capacity：70sets,Month

Description

Basic Info.

Model NO. RMB520U Process Type Heavy Processing Certification CE After-sales Service 1 Year Feeding Speed 5-35m/Min Transport Package Soft Packing & Plywood Packing Specification RMB520U Trademark SAMACH Origin China Production Capacity 70sets/Month

Product Description

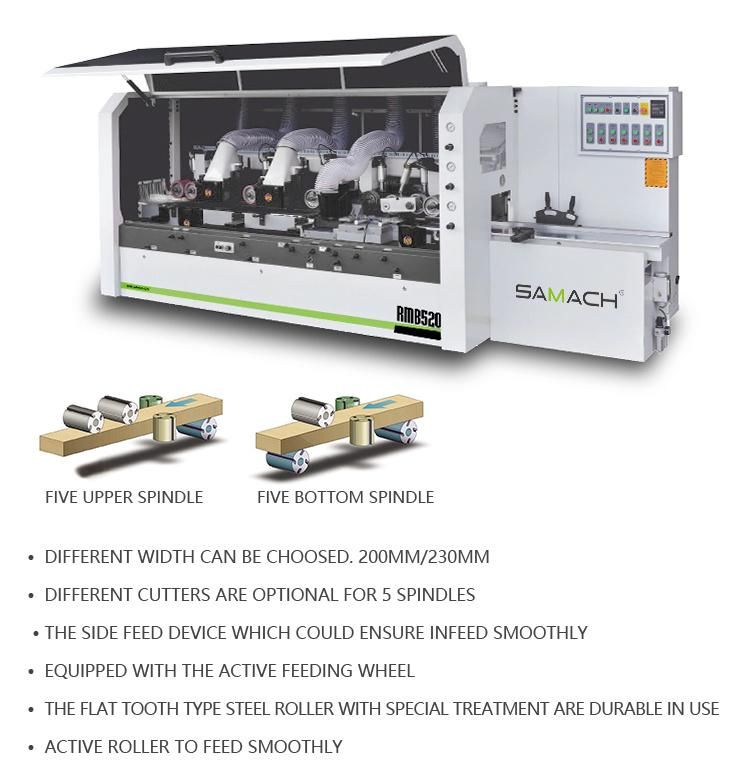

High Quality Automatic Five Spindles Four-Side Planer
High Quality Automatic Five Spindles Four-Side Planer
ModelRMB520URMB520D
Work Width20-200mm20-200mm
Work Thickness8-120mm8-120mm
Feeding Speed5-35m/min5-35m/min
Cutter Shaft DiameterФ40mmФ40mm
Cutter Shaft Speed7000r/min7000r/min
Air Pressure0.4-0.6Mpa0.4-0.6Mpa
The First Lower Shaft5.5kw/7.5HP5.5kw/7.5HP
The First Upper Shaft7.5kw/10HP7.5kw/10HP
Right Side Spindle5.5kw/7.5HP5.5kw/7.5HP
Left Side Spindle5.5kw/7.5HP5.5kw/7.5HP
 Second Top Spindle5.5kw/7.5HP-
Second Bottom Spindle-5.5kw/7.5HP
Feeding Motor4kw/5.5HP4kw/5.5HP
Feeding Lifting Motor0.75kw/1HP0.75kw/1HP
Total Power34.25KW/45HP34.25KW/45HP
First Lower ShaftФ125mmФ125mm
First Upper ShaftФ125-Ф180mmФ125-Ф180mm
Right Side SpindleФ125-Ф180mmФ125-Ф180mm
Left Side SpindleФ125-Ф180mmФ125-Ф180mm
Second Top SpindleФ125-Ф180mm-
Second Bottom Spindle-Ф125-Ф180mm
Feeding Wheel DiameterФ140mmФ140mm
Dust Collect DiameterФ150mmФ150mm
Weight2600kg2600kg
Dimensions3400*1600*1800mm3400*1600*1800mm
High Quality Automatic Five Spindles Four-Side PlanerHigh Quality Automatic Five Spindles Four-Side PlanerHigh Quality Automatic Five Spindles Four-Side PlanerHigh Quality Automatic Five Spindles Four-Side PlanerHigh Quality Automatic Five Spindles Four-Side Planer1. How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in shandong which is a famous city for producing the machine. Welcome to visit our factory any time.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide T/T, L/C ect. Any other ideas, please contact us for better support.


Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
