• Model NO.：LT-1325
• Working Area：1300X2500mm
• Max. Feeding Height of Z Axis：200mm,300mm

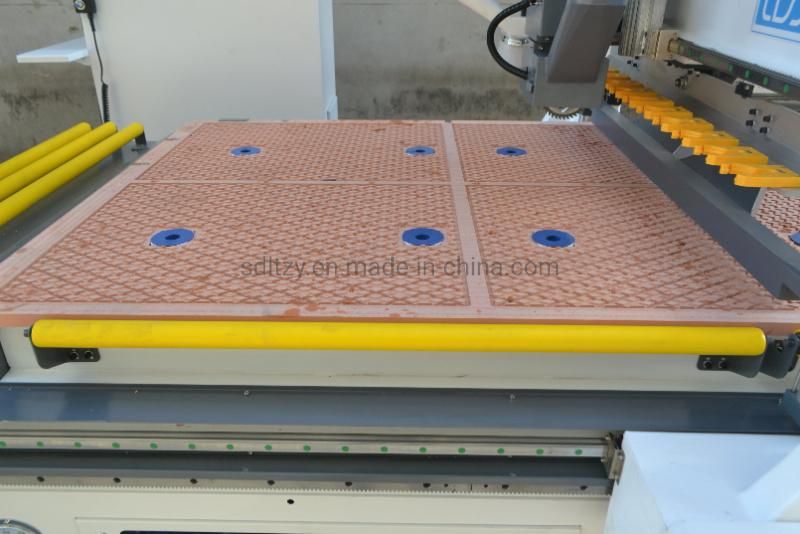

• Table Type：Vacuum Table with 7.5kw Vacuum Pump
• Spindle Power：Hqd 9kw Air Cooling Spindle
• Guide Rail：25mm Hiwin Linear Square Guide Rail
• X,Y Structure：Gear Rack
• Z Structure：Tbi Ball Screw
• Control System：Syntec FC Control System
• Invert：Fuling
• Lubricating：Oil Lubrication
• Transport Package：Plywood Case
• Specification：3300x1950x1950mm
• Trademark：LOOKE
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Year

Overview

Application

Product Description

ModelATC 1325 CNC RouterWorking area1300x2500mmMax. feeding height of Z axis200mm/300mmTable surfaceVacuum table with 7.5kw vacuum pumpX, Y axis StructureGear rackZ axis StructureTBI ball screwGuide railHiwin square guide railMotor and driverLeadshine 2206 easy servo motor and driverSpindle powerHQD 9KW Air cooling spindleSpindle speed0-18000 rpm/minMax. working speed25000mm/minMax. traving speed30000mm/minControl systemSyntec FC control systemValtage AC 380V, 50/60Hz

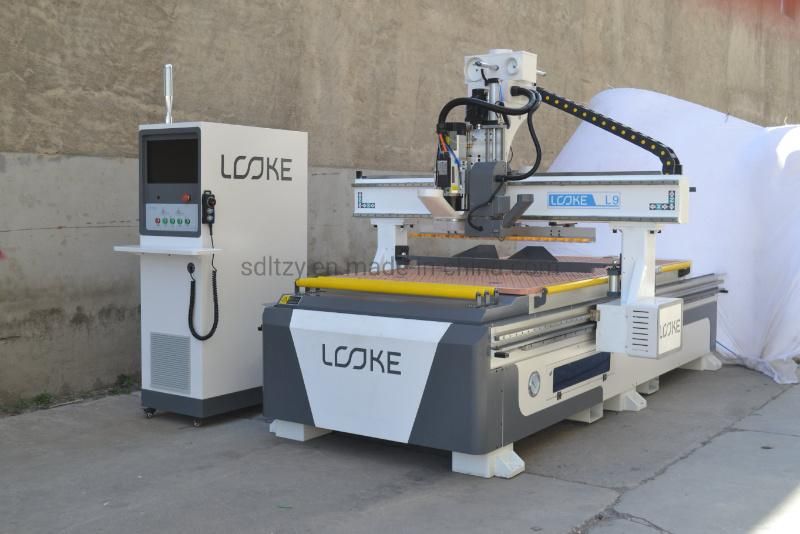

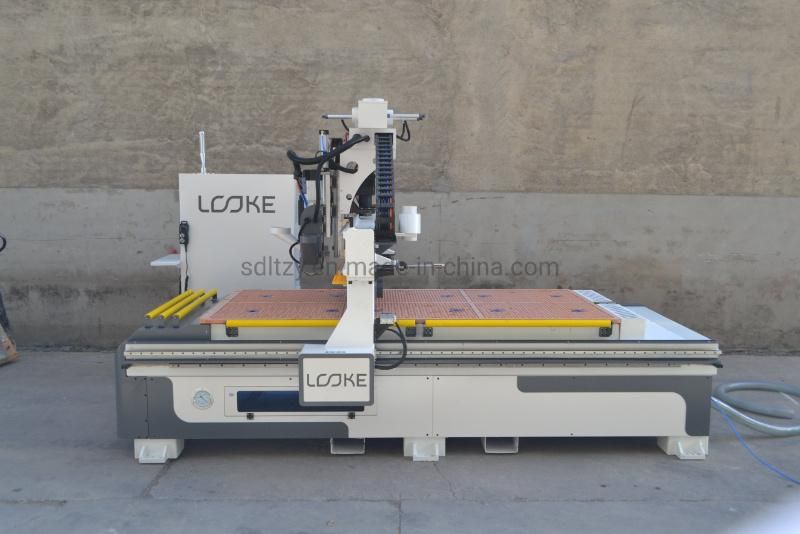

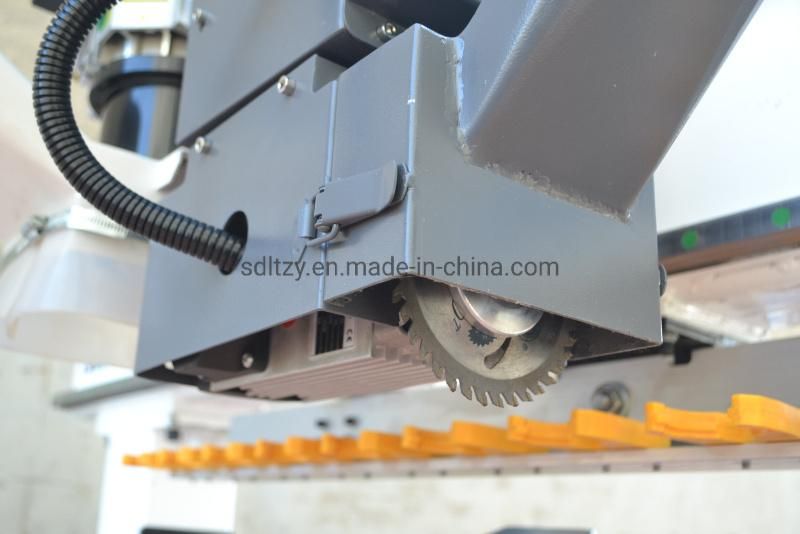

Detailed Photos

Packaging & Shipping

After Sales Service

Warranty: we provide 2 years warranty for the whole machine, 9 months for the spindle. During the warranty, if the machine parts have any damage, we will help you change it as free. And out of the warranty, you also can buy the parts easily, all the parts with famous brand.

Services: We will put the User manual, install video etc. in a USB flash driver, and mail the USB driver to you by DHL. So that you can learn it before the machine arrived. If you have any operational problem, our engineer will help you directly.
