• Model NO.：ELECNC2030-3s
• Control System：Weihong Pm95A-3L Control System with Handle
• Inverter：7.5kw Fuling Inverter
• Drivers and Motors：750W Japan Yaskawa Servo Motors and Drivers
• Table Surface：T-Slot and Vacuum Working Table with 6 Zones Sepa
• Vacuum Pump：7.5kw Air Type Vacuum Pump (380V, 3pH, 50Hz)
• Transport Package：Standard Export Wooden Case
• Specification：CE, FDA, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC2030-3s Control System Weihong Pm95A-3L Control System with Handle Inverter 7.5kw Fuling Inverter Drivers and Motors 750W Japan Yaskawa Servo Motors and Drivers Table Surface T-Slot and Vacuum Working Table with 6 Zones Sepa Vacuum Pump 7.5kw Air Type Vacuum Pump (380V, 3pH, 50Hz) Transport Package Standard Export Wooden Case Specification CE, FDA, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

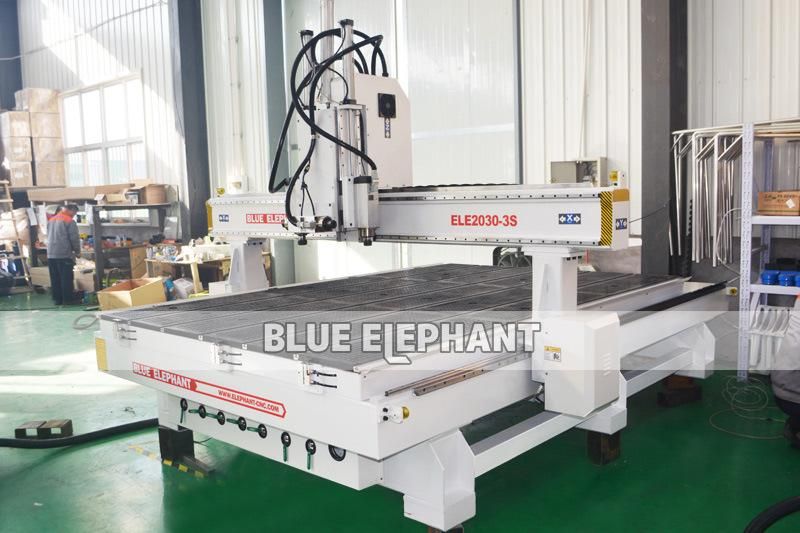

2030 3 Spindles Router CNC for Door Making with Air Cooling Spindls
Features

1) It combines the functions of four axes and automatic tool change.

2) A simple tool change operation can be performed, and engraving can also be done rotated to 90°.

3) Very economical and practical, especially suitable for making doors.

Technical Parameters

Description	Parameter
Model	ELE2030-3S
Product Name	Pneumatic System 3 Spindles CNC Router
Color	The whole machine is white with red logo (Color can be customized)
Working Voltage	AC380V, 3Phase, 50Hz (Voltage can be customized according to local conditions)
Working Area	2000*3000*300mm
Spindles	Vertical spindle: 1 set 6kw HQD air-cooled spindle 1 set 3.5kw HQD air-cooled spindle Horizontal spindle: 1 set 3.5kw Changsheng air-cooled spindle
Control System	WEIHONG PM95A-3L control system with handle
Control Box	An empty control box, you can put your own computer in it
Inverter	7.5kw Fuling inverter
Drivers and Motors	750w Japan YASKAWA servo motors and drivers
X,Y,Z Axis Transmission	X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw drive X,Y,Z rail: Taiwan PMI/ABBA linear square rail
Table Surface	T-slot and vacuum working table with 6 zones separately controlled
Lubrication System	Semi-automatic lubrication system
Gantry structure	Gantry moving
Mist cooling system	None (Optional: Water mist cooling sprayer, or Oil mist cooling sprayer)
Frame structure	New type 10-12mm thicker and bigger heavy duty welded frame and gantry
Vacuum Pump	7.5kw air type vacuum pump (380v, 3ph, 50hz)
Dust Collector	None (Optional: New type double bag dust collector)
Positioning cylinder	A total of 7 sets: X-axis has 3 sets, and Y-axis has 4 sets

PS:All the working area and specifications can be customized according to your requests.

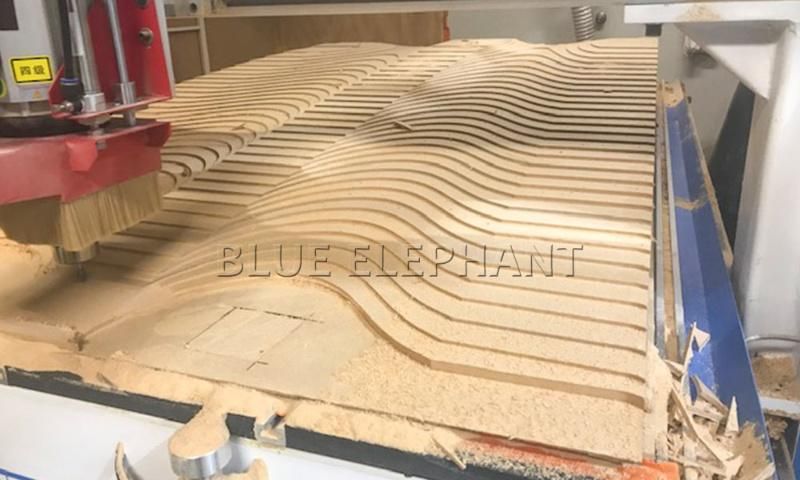

Sample & Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.



Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

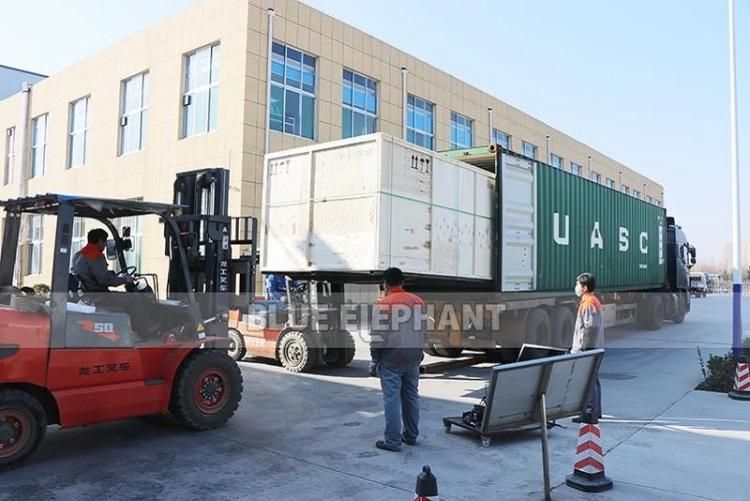

Packaging & Delivery

Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
