Woodworking Veneer Solid Wood Semi Automatic Finger Joint Machine

Qingdao Samac International Trading Co., Ltd.
  • Work Forms:Hydraulic Pressure
  • Pressing Shape:Flat Press
  • Platen Surface Pressure:High Pressure
  • Pressing Layer:Single Layer
  • Work Mode:Continuous
  • Controlling Mode:Artificial

Base Info

  • Model NO.:RZJ1525
  • Automatic Grade:Automatic
  • Transport Package:Standard Packing
  • Trademark:SAMACH
  • Origin:China
  • HS Code:99
  • Production Capacity:100sets,Month

Description

Basic Info.

Model NO. RZJ1525 Automatic Grade Automatic Transport Package Standard Packing Trademark SAMACH Origin China HS Code 99 Production Capacity 100sets/Month

Product Description

Woodworking veneer finger joint machine,RZJ1525

OEM and ODM are available.

Design of Whole factory is available. Professional Team of Strong Supports.


Full supports to partners is prompt. World-level Techniques Guarantee.

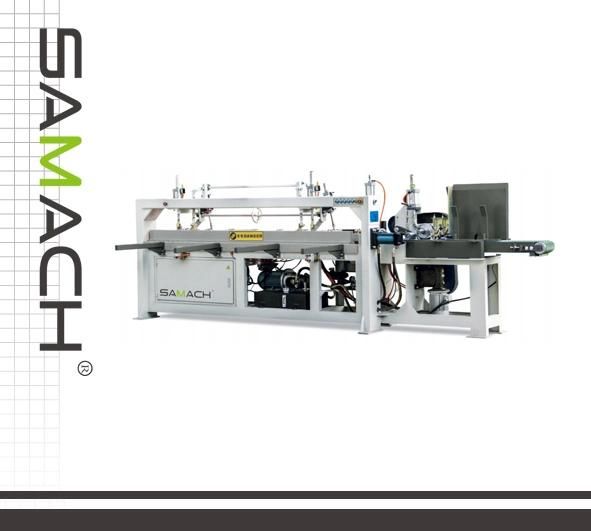

Woodworking Veneer Solid Wood Semi Automatic Finger Joint Machine


Specifications of RZJ1560A, Full Automatic Finger Jointing Machine

The second push part of finger joint assembler adopts long+short double pushing board
 design,by this kind of structure,it can assemble very short workpiece to reduce the cost.


The machine is controlled by PLC, boasts streamlined execution, reliable control and simple
operation.
ModelRZJ1560A
Max. Length of inoculation6000MM
Max. Width of inoculation150MM
Max. Thickness of inoculation80MM
Min.length of inoculation100MM
Min.width of inoculation30MM
Min. Thickness of inoculation18MM
Rotating speed of saw blade3700R/MIN
Diameter of saw blade355MM
Rated power of saw motor3KW
Rated power of Oil pump2.2KW
Air pressure of working0.5-0.8Mpa
Max. Engaging force7800KG
Max. Feed speed30M/MIN
Overall dimension7650*1000*1420MM

RZJ1525

Woodworking Veneer Solid Wood Semi Automatic Finger Joint Machine

Specifications of RZJ1525, Semi-automatic Finger Jointing Machine

ModelRZJ1525
Max. Length of inoculation2500MM
Size of working table2600X500M
Rated power of saw spindle3KW
Rated power of oil pump2.2KW
Max.push power of oil pressure7800KG
Rated power of feeding speed1.5KW
Max. size of inoculation2500X150X80MM
Overall dimension4200X1500X1500MM

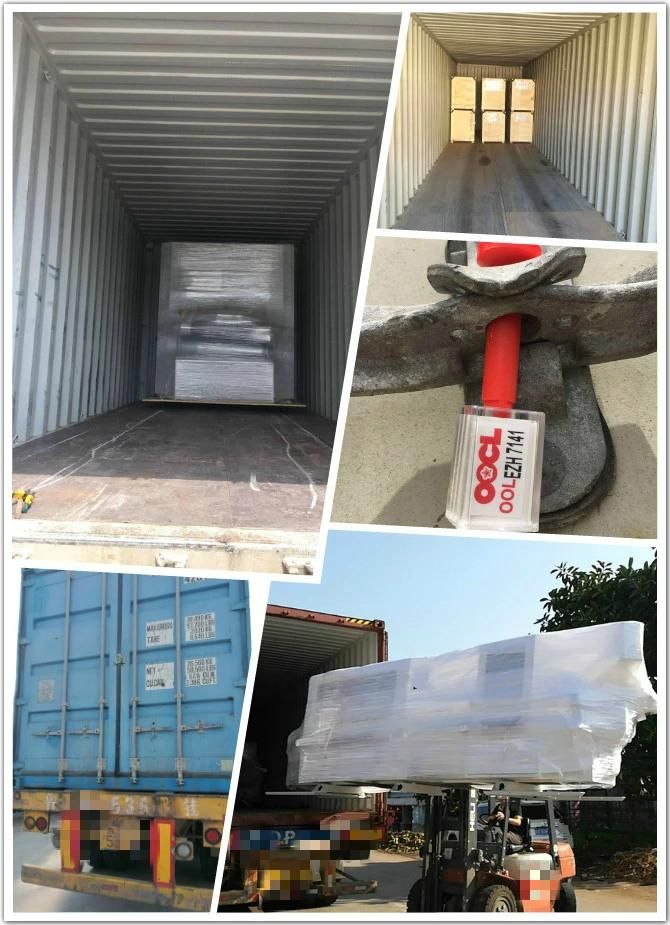

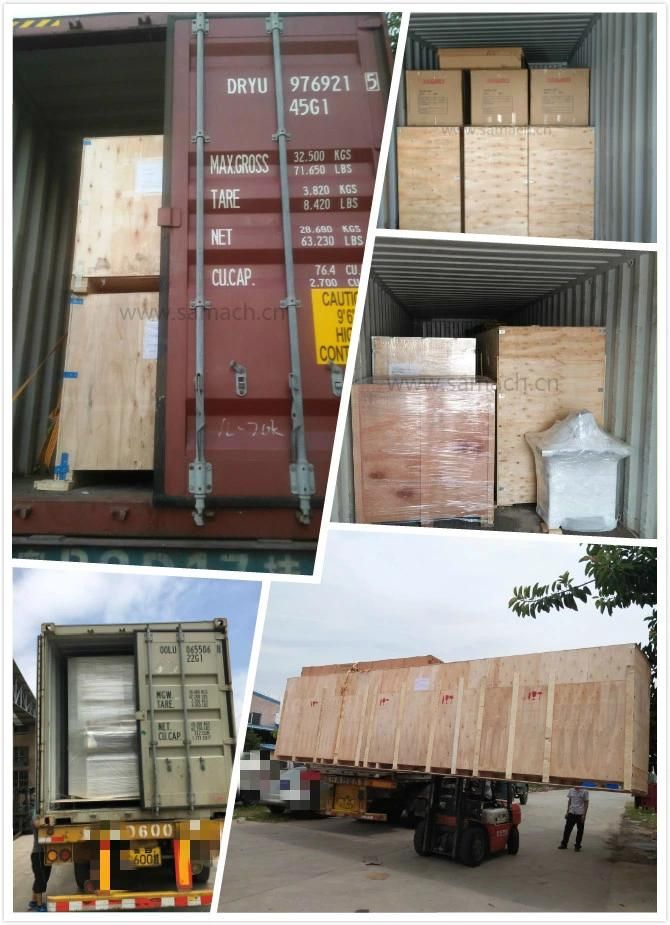

Packing and Delivery
Woodworking Veneer Solid Wood Semi Automatic Finger Joint Machine
Woodworking Veneer Solid Wood Semi Automatic Finger Joint Machine

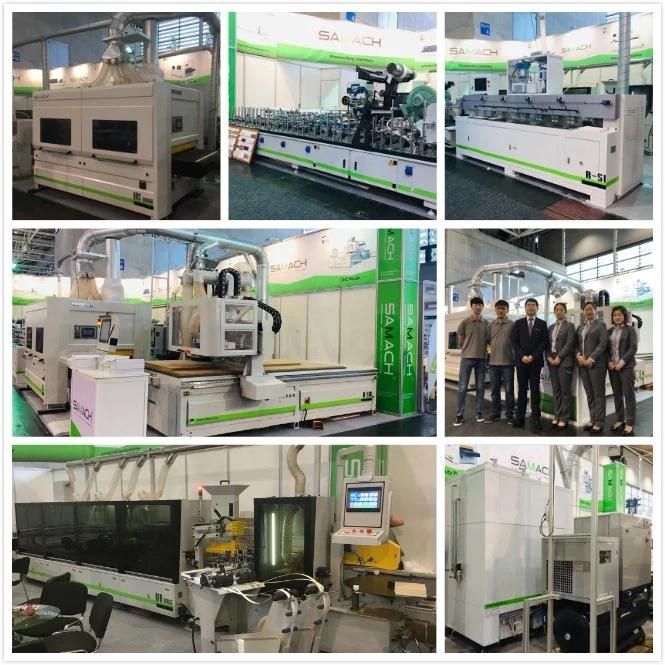

LIGNA IN GERMAN, WORLD TOP LEVEL EXHIBITION OF WOODWORKING MACHINES
Woodworking Veneer Solid Wood Semi Automatic Finger Joint Machine

Samach'S Services and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest and
improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees
,quality of our machine and sell-after service.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partner.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time!
