Mzb73032 Wood Hinge Boring Machine
Qingdao Zhongding Machinery Co., Ltd.- Structure：Vertical Drilling Machine
- Layout：Vertical
- Controlling Mode：Manual
- Automatic Grade：Automatic
- Precision：Precision
- Certification：CE, ISO
Base Info
- Model NO.：MZB73032
- Energy Saving：Energy Saving
- Warranty：1 Year
- Customized：Customized
- Condition：New
- Transport Package：Wooden Box
- Specification：1700*850*1700mm
- Trademark：QDZD
- Origin：China
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. MZB73032 Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Transport Package Wooden Box Specification 1700*850*1700mm Trademark QDZD Origin China Production Capacity 500sets/YearProduct Description

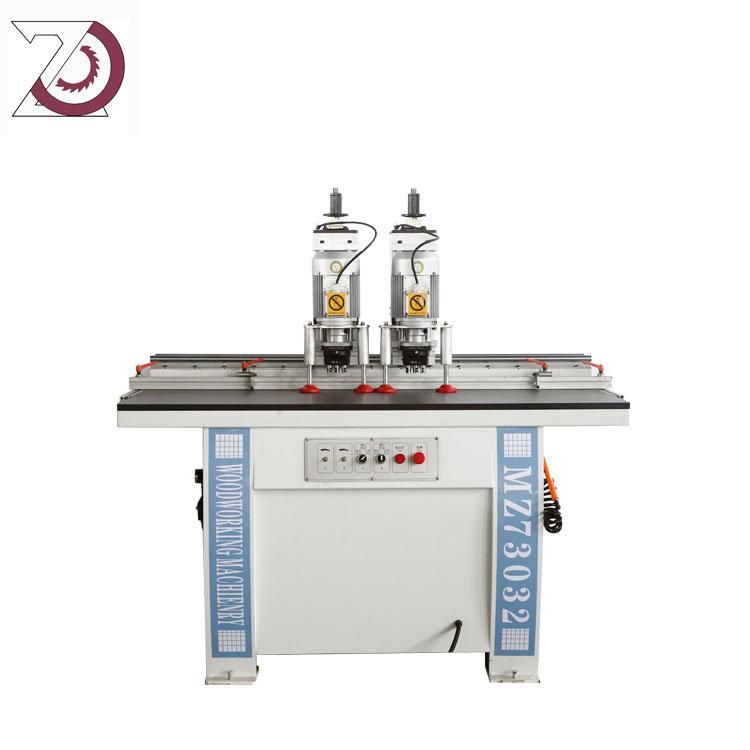

MZB73032 wood Hinge boring machine
Specification| Type | MZB73032 | MZB73033 |
| Max drilling diameter | 35 mm | 35 mm |
| Max drilling depth | 60 mm | 60 mm |
| Distance between 2 heads | 185-870 mm | 185-1400 mm |
| Number of spindles | 3spindle*2heads | 3spindle*3heads |
| Rotating speed | 2840 r/min | 2840 r/m |
| Motor power | 1.5kw * 2 | 1.5kw * 3 |
| Pneumatic pressure | 0.6-0.8 Mpa | 0.6-0.8 Mpa |
| Overall dimension | 1300*1100*1700mm | 1600*900*1700mm |
| Weight | 400 kg | 450 kg |
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
