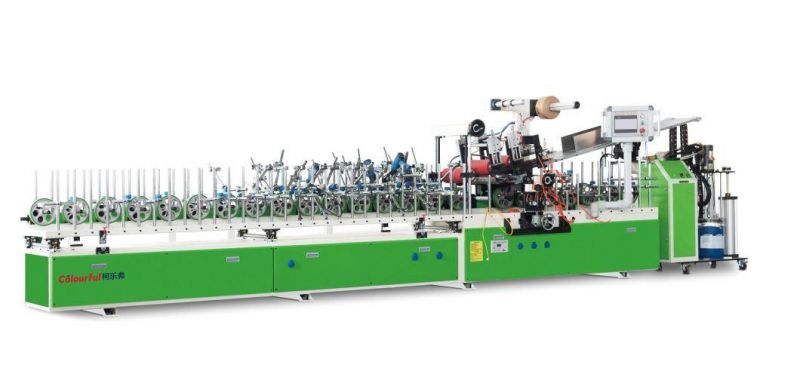

Profile Wrapping Wood Veneer Machine with Hot Melt Glue Coating System
Qingdao Colourful Machinery Co., Ltd.- Warranty：1 Year
- Certification：CE, ISO

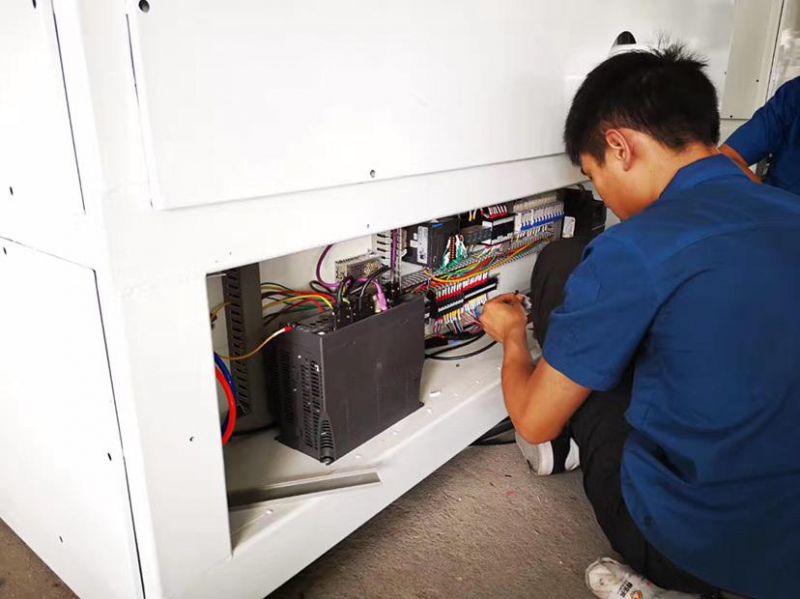

- After-sales Service：Field Installation, Commissioning and Training
- Model No.：Clf-PUR350d
- Voltage：380V
- Power(W)：20kw
Base Info
- Model NO.：CLF-PUR350D
- Width of Lamination：15-350mm
- Speed of Lamination：3-65m,Min
- Lamination Height：125mm
- Preheating Power：3kw
- Transmission Power：2.2kw
- Glue Machine Power：18kw
- Air Gun Power：10kw
- PUR Barrel Capacity：5gallon (20kg)
- Condition：New
- Control System：PLC
- Glue Type：PUR Hot Melt Glue
- Transport Package：Pree Film Package for Machine Body
- Specification：6000*1300*2000mm
- Trademark：COLOURFUL
- Origin：Qingdao, Shandong, China
- HS Code：8477599000
- Production Capacity：30 Set,Sets Per Month
Description
This machine is the fourth-generation product of our company's lamination machine series, with nationally recognized invention patents, leading the technology of similar products internationally; it is widely used, suitable for PVC plastic door and window profiles, aluminum alloy profiles; MDF, solid wood, wood plastic, door covers surface is covered with roll-shaped fabrics such as PVC film, coated paper, veneer, CPL, leather, aluminum foil, copper foil, etc.It is also suitable for sheet-shaped fabrics such as single veneer, fire-proof board, single CPL.This machine can quickly and stably change the mold by a linear guide side shifting method to achieve rapid product switching. The rapid changeover structure has good stability, saves time, saves space, and brings to the market. Over the past 3 years, we have received high praise from customers. This machine is equipped with a one-way feeding device as standard, which can facilitate fast and fast feeding. It is equipped with a mobile advance and retreat handle to facilitate machine adjustment. It can also be equipped with a continuous melter, automatic film connection, and brush cleaning , Affinity device, PVC film corona machine, unilateral side shift device, protective film device

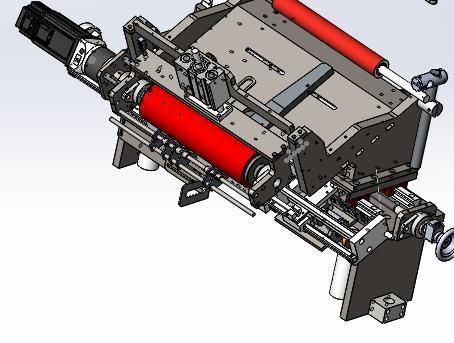

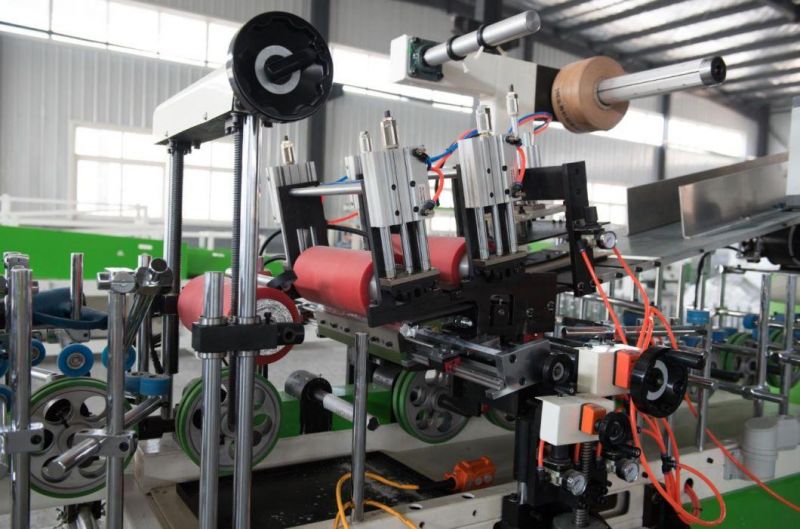

The glue head is inclined at a certain angle to make the glue spread more evenly and smoothly; it adopts 0.75KW servo motor with a transmission ratio of 1:10; and adopts a one-way bearing design structure. When the sheet is placed at the photoelectric switch position at the glue head exit, press up The roller cylinder presses down, and the glue head starts to apply glue. After the glue is applied, the sheet is pressed by the main pressing roller, the one-way bearing works, and the motor assists. The sheet bonding speed is driven by the conveying mechanism to ensure the bonding speed Synchronize with the conveying speed. When the sheet is finished, the upper pressure roller cylinder is lifted; the glue head outlet adopts the design of preventing the roll up of multiple ribs to prevent the veneer from rolling up after gluing; the glue head can be fine-tuned
Profile positioning deviceThe profile enters the conveying mechanism from the feed end and is smoothly conveyed to the stop forward mechanism. The veneer storage table manually sends a single veneer to the glue port. After the photoelectric detection of the profile, the cylinder at the stop presses down to make the profile pass smoothly The stopper mechanism ensures that the front end of the sheet and the front end of the profile maintain a certain length

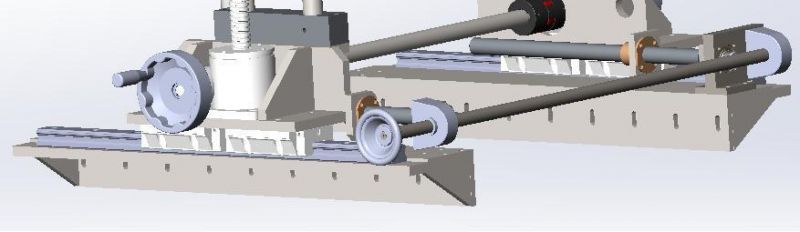

Front and rear adjustment deviceUsing linear guides with gears, manually adjust the glue head's glue part, the front and back positions along the production direction, the purpose is to realize that after the sheet is glued, it enters the main pressure roller smoothly at the best angle

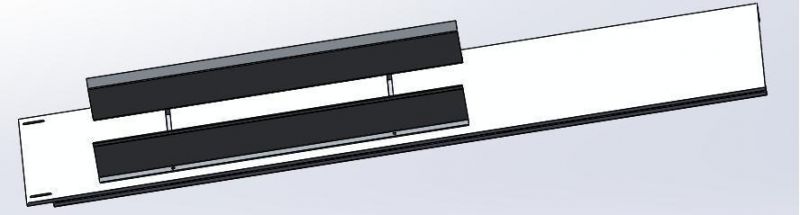

Sheet storage platformUsed to store a certain number of sheets, the baffle has the function of manually adjusting the width to meet the needs of different widths; under normal circumstances, it can store 100 sheets

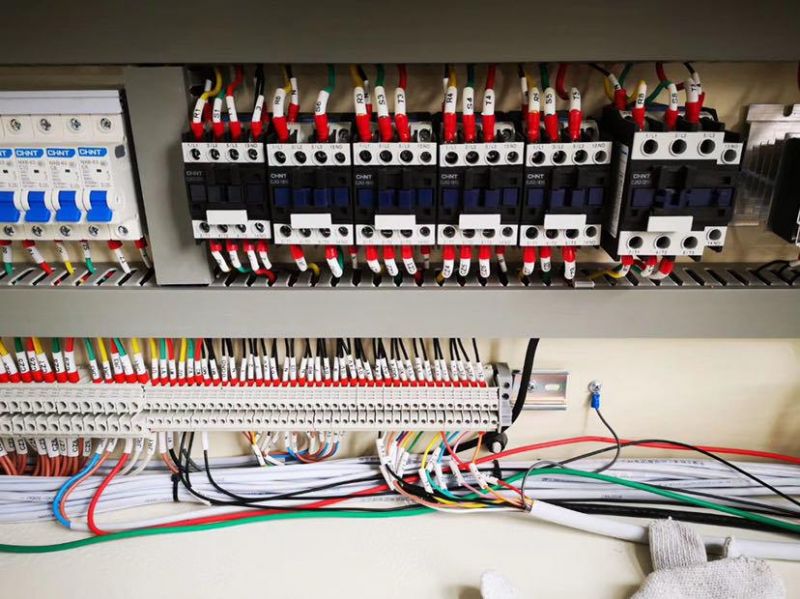

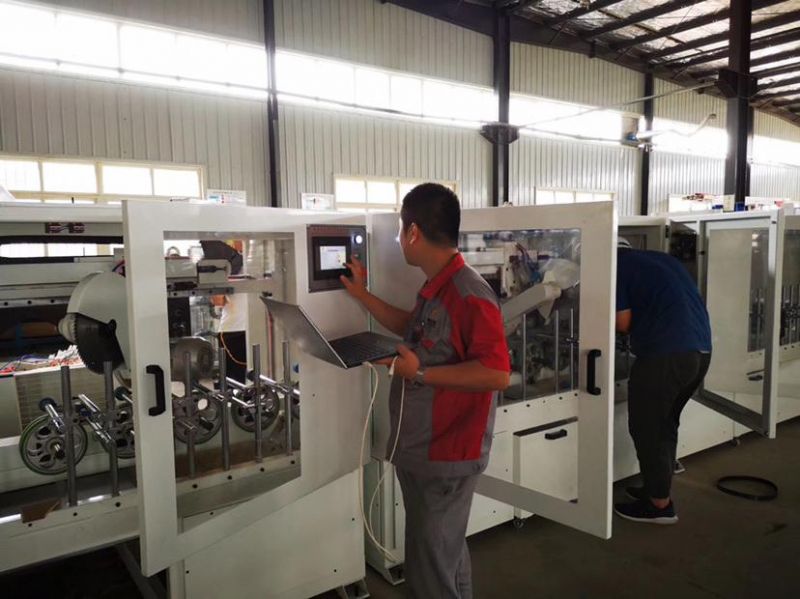

Low voltage electrical appliances adopt the Schneider brand, PLC, inverter and touch screen adopt Taiwan Delta brand, and the main drive motor adopts Xiamen Dongli or Taibang.

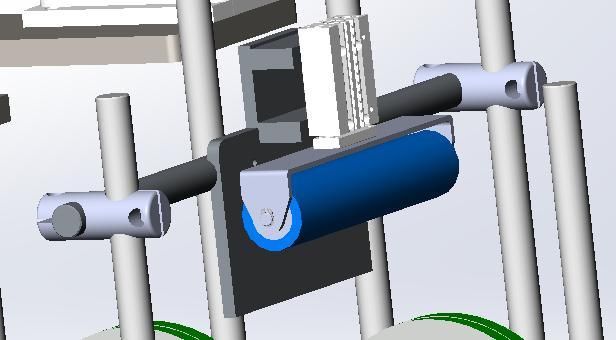

The gluing part of the glue head is designed to be lifted up and down. The height of the glue head and the profile is adjusted by the handwheel on both sides, and the two sides are adjustable to ensure that the height and angle of the glue head entering the main pressure roller are the most suitable.The surface of the rubber head is treated with Teflon, and the rubber head and film winding roller all adopt adjustable movement functions, and are equipped with a counter to display the actual working size. The glue head is equipped with a scale, which is easy to set the glue width and is clear at a glance
