• Specification：20FT Container
• Trademark：INVECH MACHINERY
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Specification 20FT Container Trademark INVECH MACHINERY Origin China Production Capacity 5000PCS/Year

Product Description

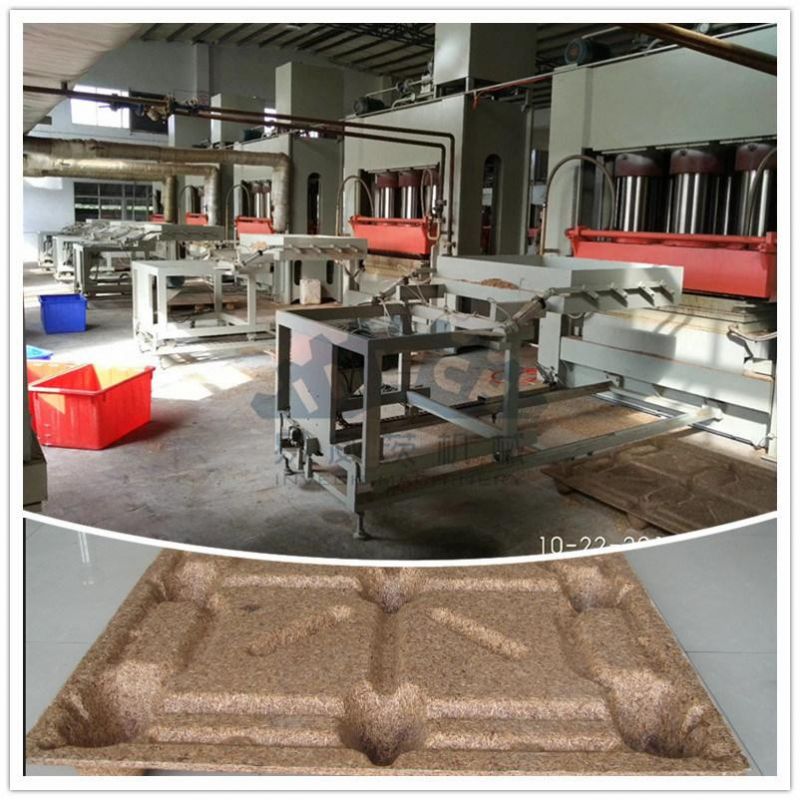

9 Feet Wood Sawdust Pallets Modling Machine


1.Brife Introduction:Wood pallet compressed machine is using sawdust and wood shavings to make moulded wood pallet, you can use it directly for packaging or transportation, no need for nails and pallet blocks.
The whole compressed wood pallet production line includes four parts: crushing machine, drying machine, glue mixing machine and the sawdust pallet moulding machine.

2.Technical Parameters

Model	YCP800
Working pressure	800t
Pallet density	800-850KG/ m³
Oil tank QTY	290/4Pcs
Pressing heal cycle	35s
Capacity	150-180pcs/day
Shaping cycle	450s
Dimension	2300*1300*4300mm
Weight	9800 kg

3.Advantages of compressed wood pallet

1. Nestable: 4-way Entry.
2. High density: 800-850kg/m3
3. Waterproof, antiseptic, insect-preventive, low flammable and suitable for out-door use.
4. Eco-friendly (E2) and 100% degradable.
5. Fumigation-free: Our molded pallets are made of wood fibers by high pressure and high temperature during production. They are resin bonded and are fungus and pest resistance. No fumigations or heat treatment are required for exporting to countries complying to ISPM15 Guidelines.
6. The reasonable design makes our products have the advantage of saving storage space, light weight and elegant appearance.
7. High loading capacity, strong and durable physical properties, and long service life.
Formed by one time molding, without any metal parts.

4.Compressed wood pallet production line

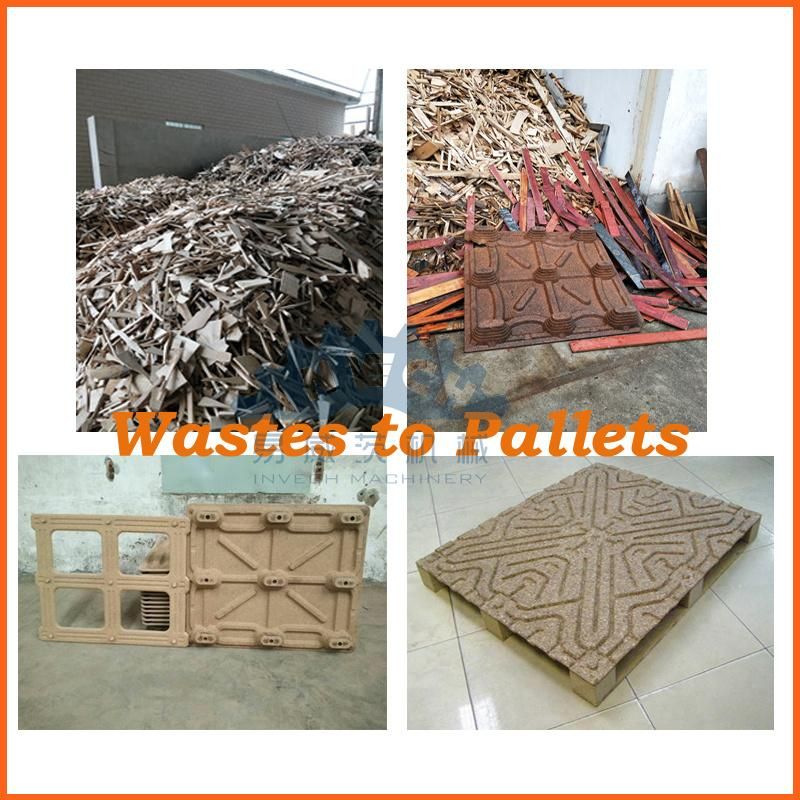

1.Raw material:wood wastes,wood chips,wood sawdust,wood shavings etc.

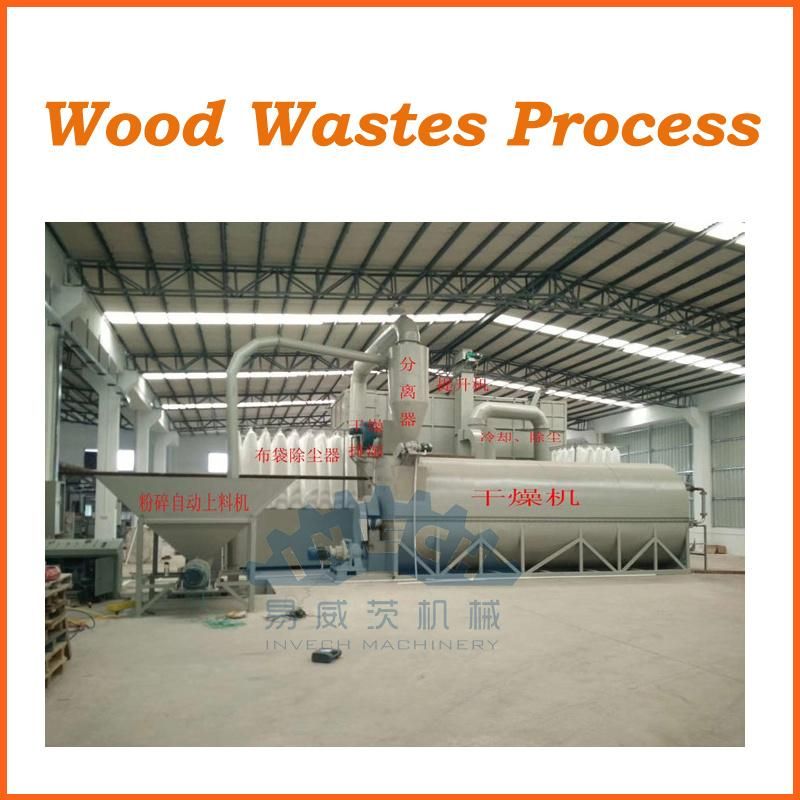

2.Wood wastes processing---Crushing-Drying

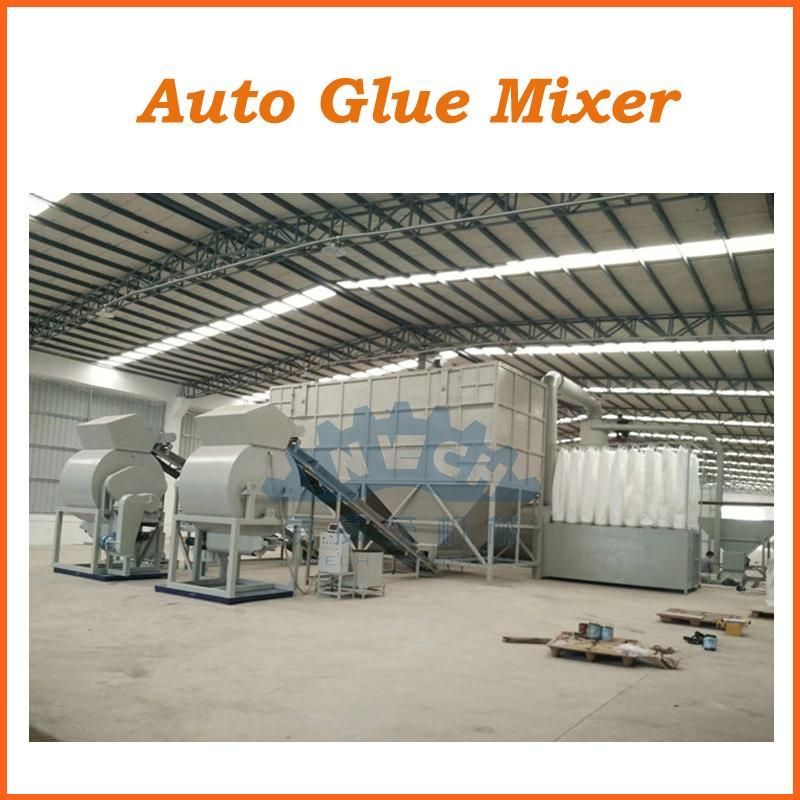

3.Auto mixing with glue



4.Wood sawdust pallet moulded machine
