Manual Double Glue Woodworking Edge Banding Machine Edge Bander
Qingdao Zhongding Machinery Co., Ltd.- Function：Gluing, Edge Banding, Fine Trimming, Scraping, Buffing
- Type：Straight Line
- Edging thickness：0.15-3mm
- Automatic Grade：Semiautomatic
- Panel Feeding Speed：1-18m,Min
- Certification：CE, ISO
Base Info
- Model NO.：ZD-515B
- Panel Thinkness：10-60mm
- Min.length panel：Adjusted
- Min.width panel：10-60mm
- Manufacturing Principles：Glue Tank Overhead
- Customized：Customized
- Glue Pot Volume：3kg
- Sending Power：0.37kw
- Heating Power：1.8kw
- Shipping Port：Qingdao
- Speed Adjustment：Stepless Speed Regulation
- Shape of Work Piece：Straight & Curve
- Weight：160kg
- Transport Package：Wooden Box
- Specification：800*1080*1120mm
- Trademark：QDZD
- Origin：China
- HS Code：84659900
- Production Capacity：500sets,Month
Description
Basic Info.
Model NO. ZD-515B Panel Thinkness 10-60mm Min.length panel Adjusted Min.width panel 10-60mm Manufacturing Principles Glue Tank Overhead Customized Customized Glue Pot Volume 3kg Sending Power 0.37kw Heating Power 1.8kw Shipping Port Qingdao Speed Adjustment Stepless Speed Regulation Shape of Work Piece Straight & Curve Weight 160kg Transport Package Wooden Box Specification 800*1080*1120mm Trademark QDZD Origin China HS Code 84659900 Production Capacity 500sets/MonthProduct Description

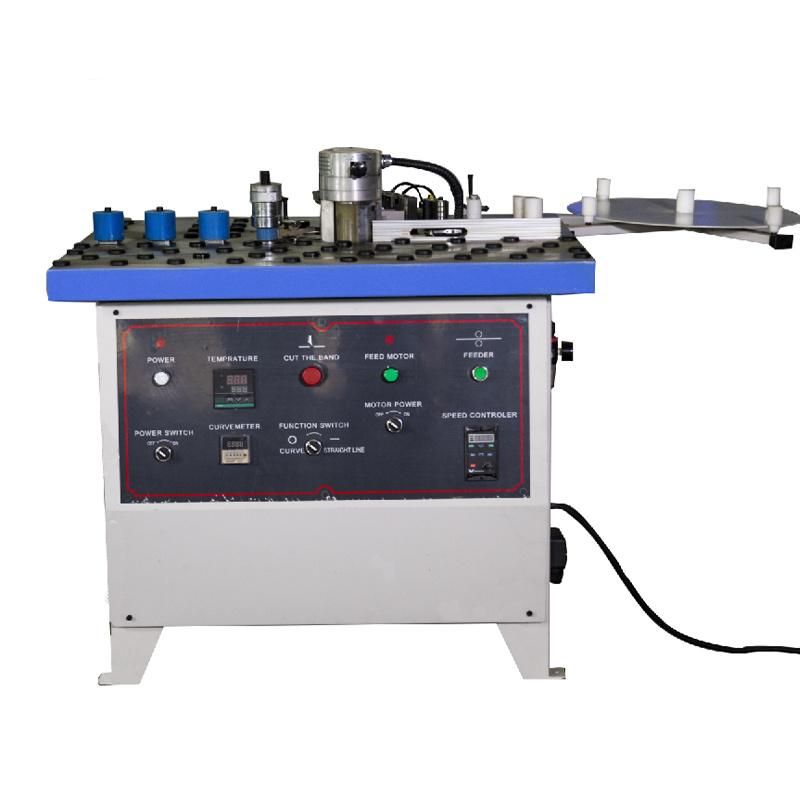

Manual Double Glue Woodworking Edge Banding Machine Edge Bander
Technical Parameters
| Glue pot volume | 3kg |
| Width of banding | 10-60mm |
| Sending power | 0.37kw |
| Heating power | 1.8kw |
| Thickness of banding | 0.15-3mm |
| Speed adjustment | Stepless speed regulation |
| Shape of work piece | Straight&curve |
| Feeding speed | 1-18m/min |
| Air pressure | ≥4kg/cm² |
| Weight | 160kg |
| Size | 800*1080*1120mm |
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
The Workshop
Feature:
Customer Visiting:
Our Certificate:
The package:
