• Model NO.：LT-1325
• Z Axis：200mm
• Table Type：Aluminum T-Slot Table with PVC
• Spindle：3.0kw Water Cooling Spindle
• Collet：Er20
• Spindle Speed：0-24000rpm,Min
• Guide Rail：Hiwin Square Guide Rail
• Transmission：X, Y Axis by Helicia Gear Rack
• Z Axis Transmission：Ball Screw
• Motor：Stepper Motor 86byg-450b
• Driver：Leadshine Drivers Ma860h
• Control System：Nc Studio,Mach3,DSP
• Software：Artcam
• Transport Package：Wooden Case
• Specification：3300x1950x1950mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Year

Overview

Product Description

Product Parameters

Working Area1300x2500mmMax. feeding height of Z axis200mmMachine structureWelded steel tube, cast iron vertical shafts and steel gantryTable surfaceAluminum T-slot table with PVCSpindle3.0kw Water cooling spindleColletER20Spindle speed0-24000rpm/minGuide railHiiwn square guide railTransmissionX, Y axis by helicia gear rack, Z axis by TBI ball screwMotor and driverStepper motor 86BYG-450B and Leadshine driver MA860HControl systemNC studio/Mach3/DSPMax. traving speed25000mm/minMax. working speed12000mm/minRotary axis300mm diameter Rotary axis

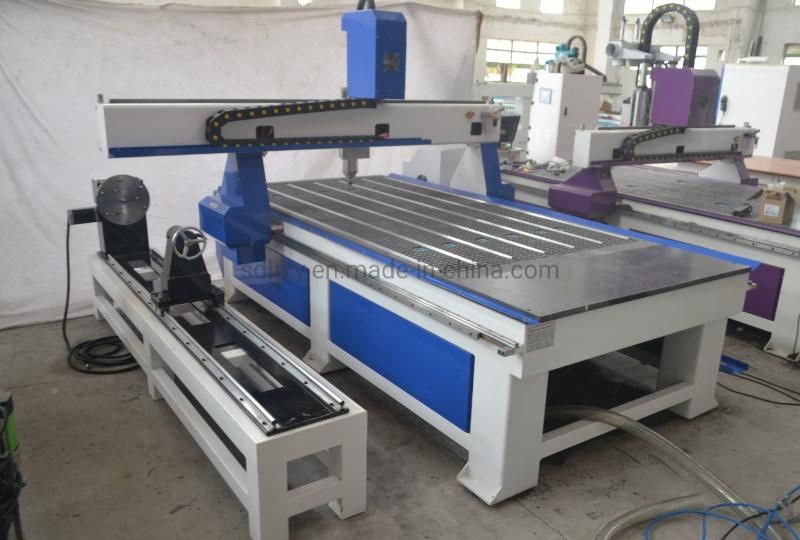

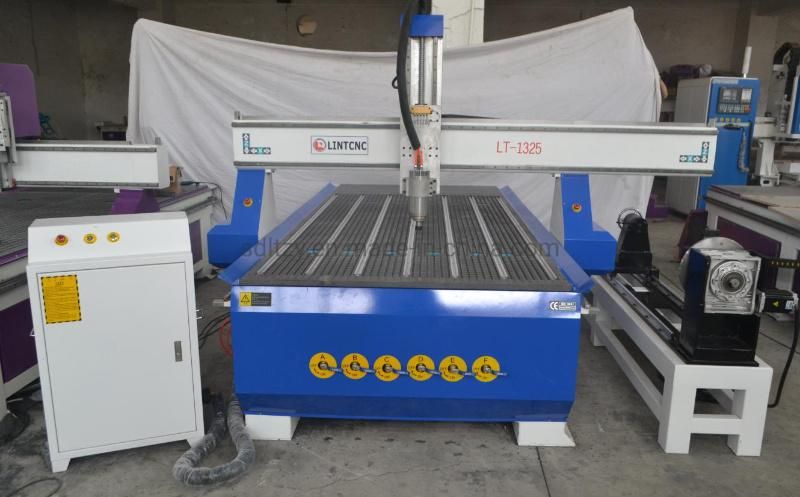

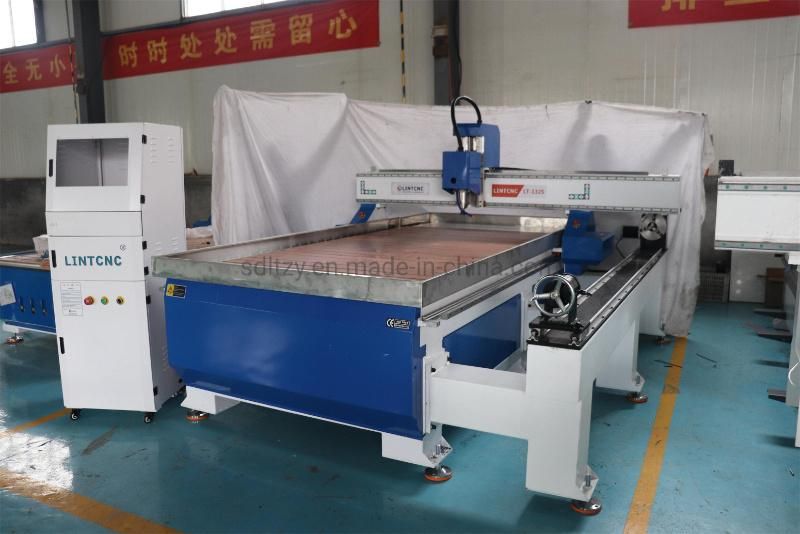

Detailed Photos

Packaging & Shipping

After Sales Service

Warranty and After-sales Services: Warranty: we provide 2 years warranty for the whole machine, 9 months for the spindle. During the warranty, if the machine parts have any damage, we will help you change it as free. And out of the warranty, you also can buy the parts easily, all the parts with famous brand.

Services: We will put the User manual, install video etc. in a USB flash driver, and mail the USB driver to you by DHL. So that you can learn it before the machine arrived. If you have any operational problem, our engineer will help you directly.
