• Model NO.：ZDP-R-RP1000
• Color：Customized
• Transport Package：Plywood Case
• Specification：Net weight: 2200kg
• Trademark：QDZD
• Origin：China
• HS Code：84659300
• Production Capacity：500sets

Basic Info.

Model NO. ZDP-R-RP1000 Color Customized Transport Package Plywood Case Specification Net weight: 2200kg Trademark QDZD Origin China HS Code 84659300 Production Capacity 500sets

Product Description

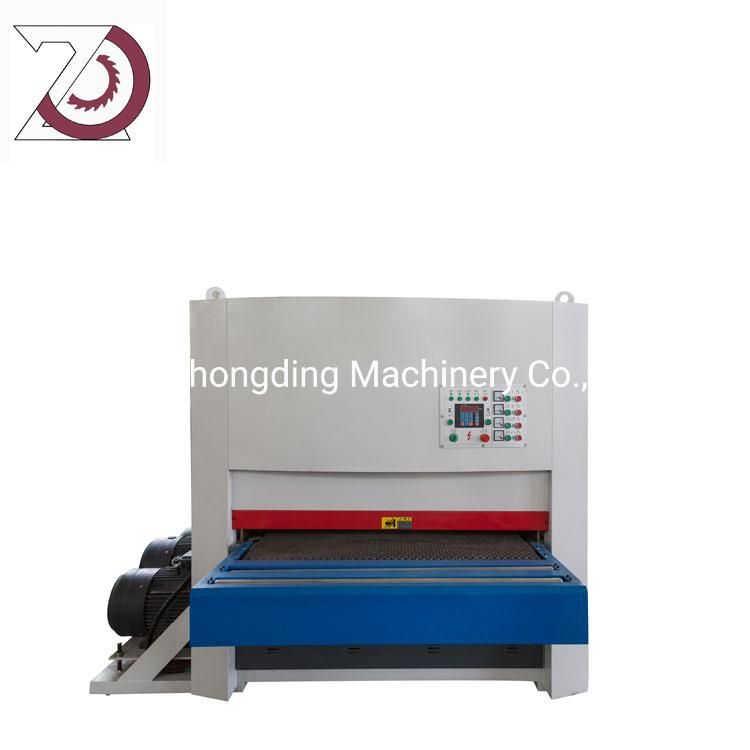

Planing and sanding machine wide belt sander with planer
Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, block board, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.
Specification:


Max. working width	630mm	1000mm	1300 mm
Working thickness	2.5-110 mm	2.5-110 mm	2.5-110 mm
No.1 sanding belt speed	20 m/s	20 m/s	20 m/s
No.2 sanding belt speed	18 m/s	18 m/s	18 m/s
Sanding belt size	650*1900mm	1020*2020	1320*2020 mm
Conveyor speed	6~38 m/min	6~38 m/min	6~38 m/min
Total power	29.5kw	41kw	81kw
Working pressure	0.55 MPA	0.55 MPA	0.55 MPA
Consumption of compressed air	5000 m³/h	5000 m³/h	5000 m³/h
Overall dimension	1450*2450*2050mm	1700*2450*2050mm	2150*3000*2050mm
Net weight	3000kg	3600kg	4500kg

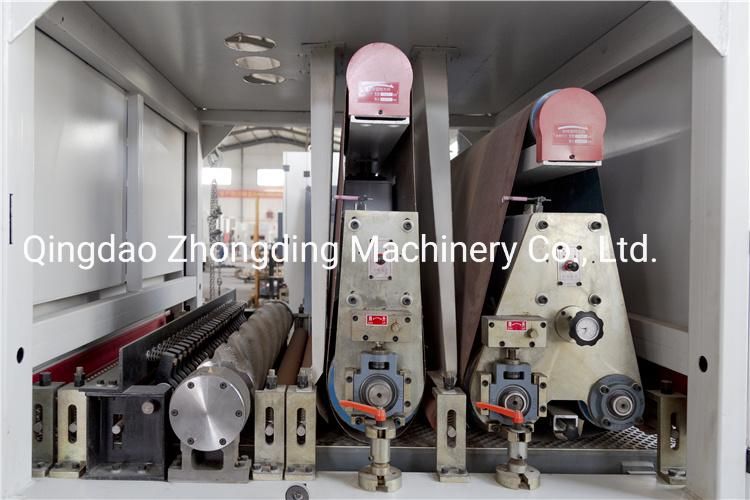

 Product details:








Similar product:





Feature:

1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.

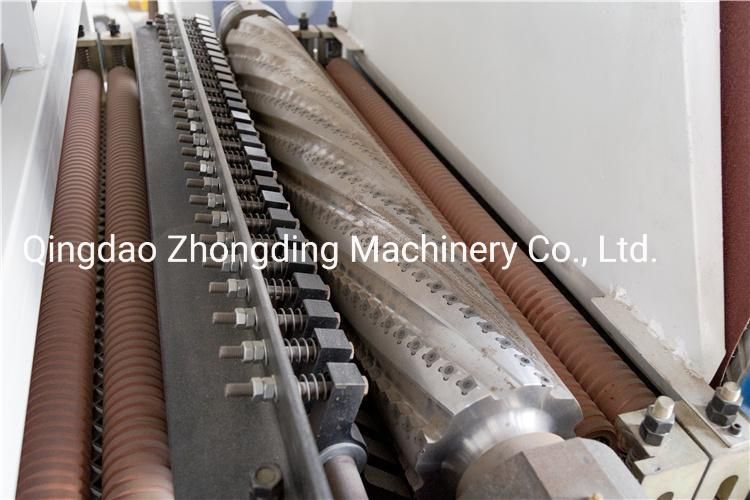

3. Steel roller goes up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.
Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, block board, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.
1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.
3. Steel roller go up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.

Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO


Package:





factory:
Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
