• Model NO.：MH13120-1
• Usage：Wood Board Production
• Type：Cold Press Machine
• Next Process：Planing and Sanding
• Pressure：16 MPa
• Control Method：PLC
• Transport Package：40hq Container
• Trademark：STX
• Origin：China
• HS Code：846594
• Production Capacity：2000 Sets, Year

No.DescriptionData1Max. working length12000mm2Max. working width1300mm3Working thickness10-200mm4Top cylinder diamter100mm5Top cylinder amounts30 pieces6Side cylinder diamter40mm7Side cylinder amount30 pieces8Total power10KW9Max. Unit pressure when fully loaded15.3kg/cm²10Overall dimensions (L x W x H)14200x 2850 x 2980mm11Weight14000-15000kg12Rated pressure16Mpa

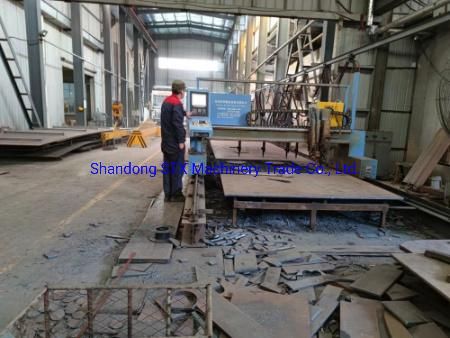

Detailed ImageProduction process: Laser cutting to prepare machine bodyProduction process:

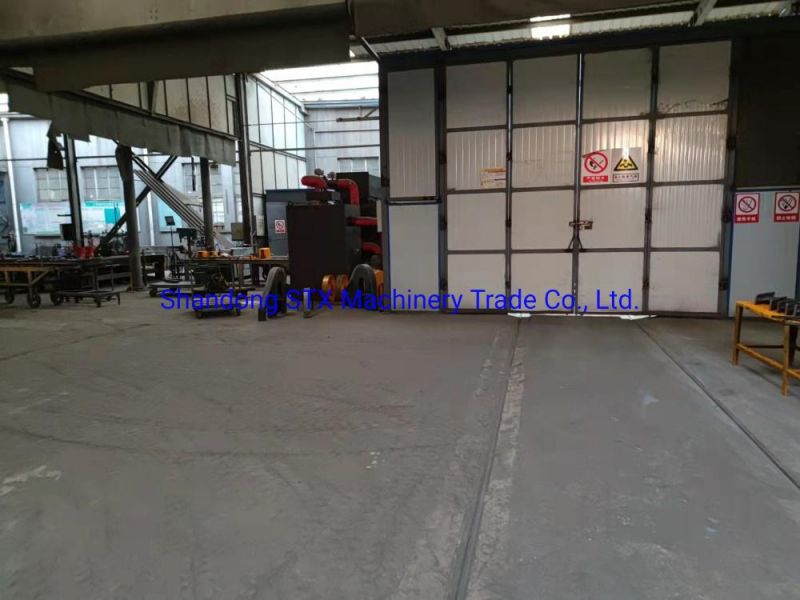

Painting shop, machine parts are painted by ourselt, ensure the painting appearance and qualityProduction process:

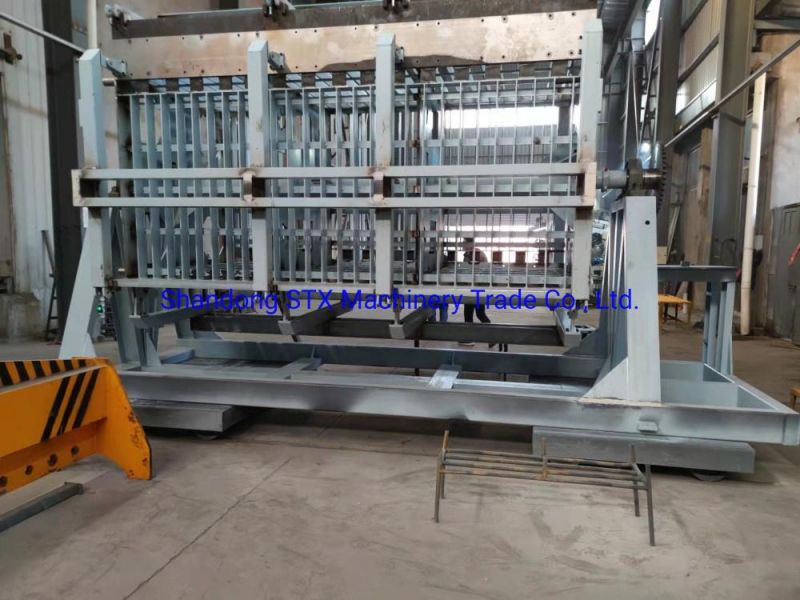

Welding and assemblyProduction process:

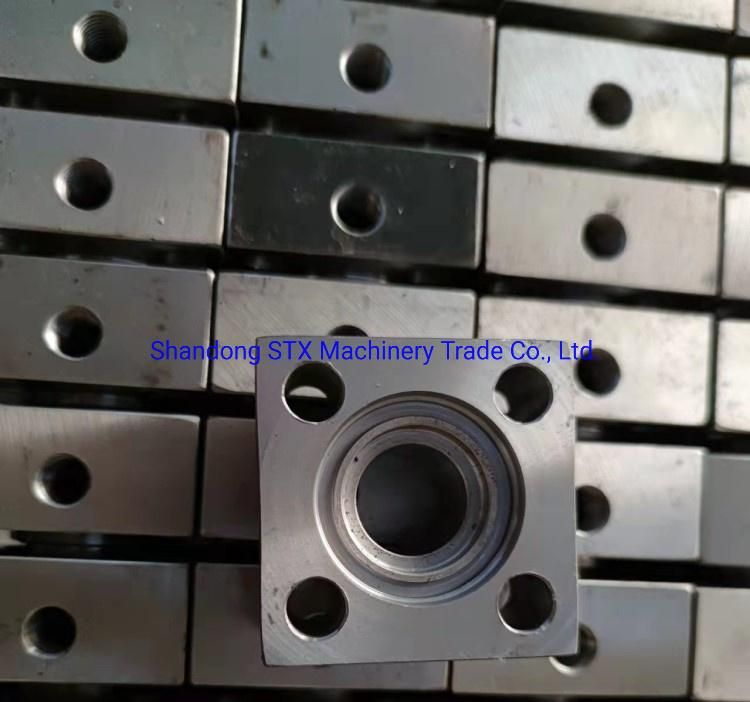

AssemblyHydaulic parts (oil sealing) are made by ourselt, can garantee the quality and we assure all service life warranty for these parts.
