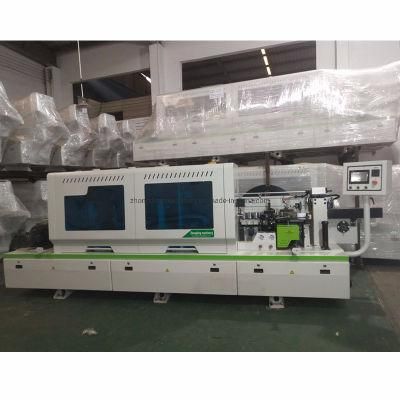

Manufacturer Woodworking Auto Corner Rounding Edge Banding Machine Wood Machine

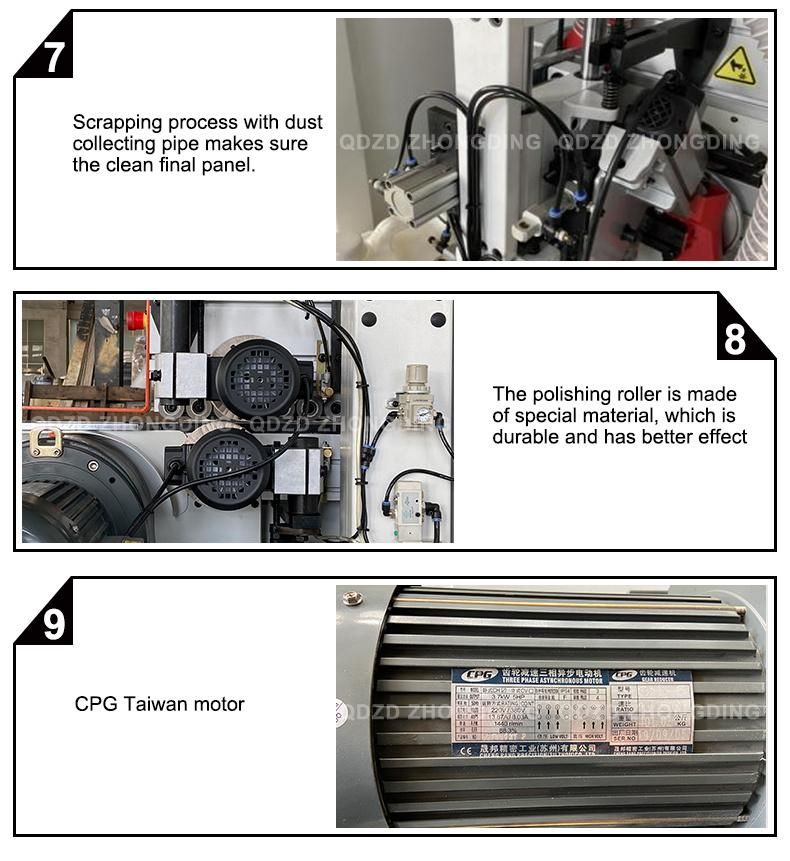

Qingdao Zhongding Machinery Co., Ltd.- Function：Pre Milling, Gluing, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
- Type：Linear Edge Banding Machine
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：10-23m,Min
- Certification：CE, ISO
Base Info
- Model NO.：ZD450A
- Panel Thinkness：10-60mm
- Min.length panel：100mm
- Min.width panel：50mm
- Manufacturing Principles：Glue Tank Overhead
- Customized：Customized
- Heating Power：1.8kw
- Feeding Motor Power：3.7kw
- Pre-Milling Motor Power：2.2kw*2
- Glue Spreading Motor Power：0.75kw
- End Trimming Motor Power：0.5kw*2
- Rough Trimming Motor Power：0.75kw*2
- Fine Trimming Motor Power：0.75kw*2
- Corner Rounding Motor Power：0.5kw*2
- Polishing Motor Power：0.37kw*2
- Air Pressure：0.8MPa
- Transport Package：Wooden Case
- Specification：9.3CBM
- Trademark：QDZD
- Origin：Qingdao
- HS Code：84659400
- Production Capacity：500sets,Year
Description
Overview
Product Parameters

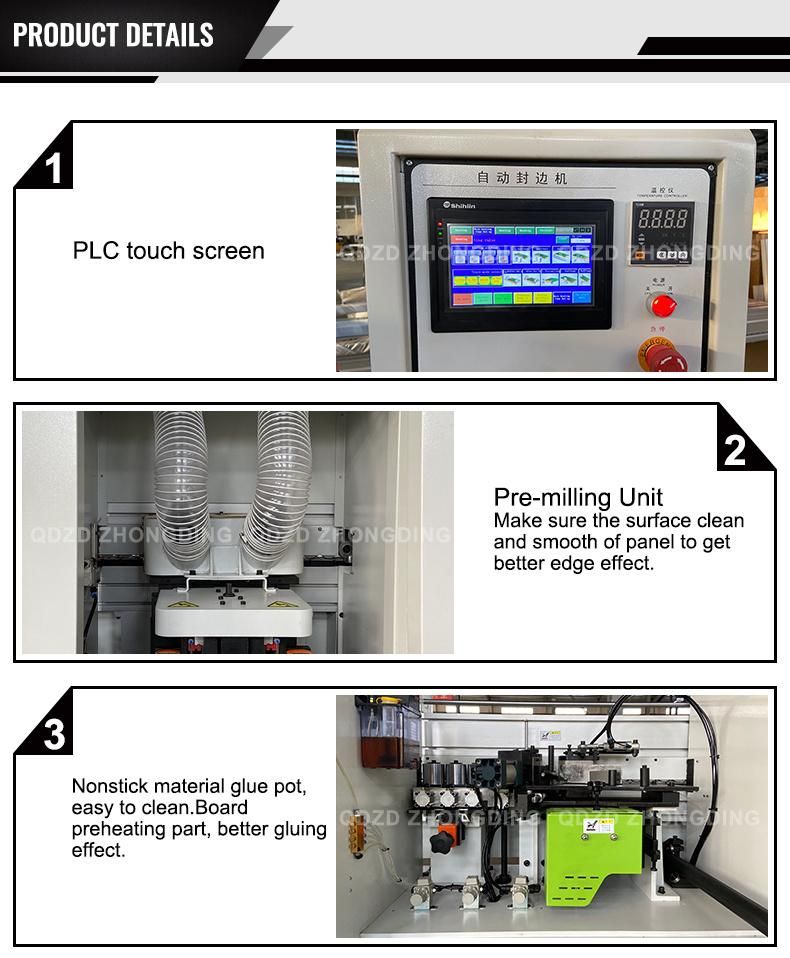

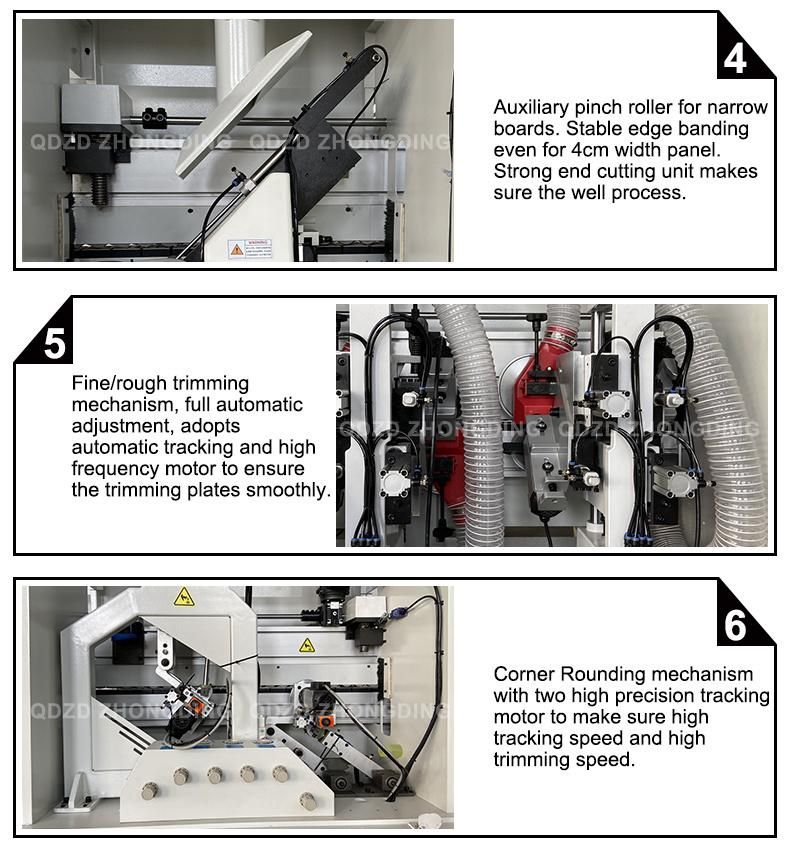

Detailed Photos
Certifications
Packaging & Shipping

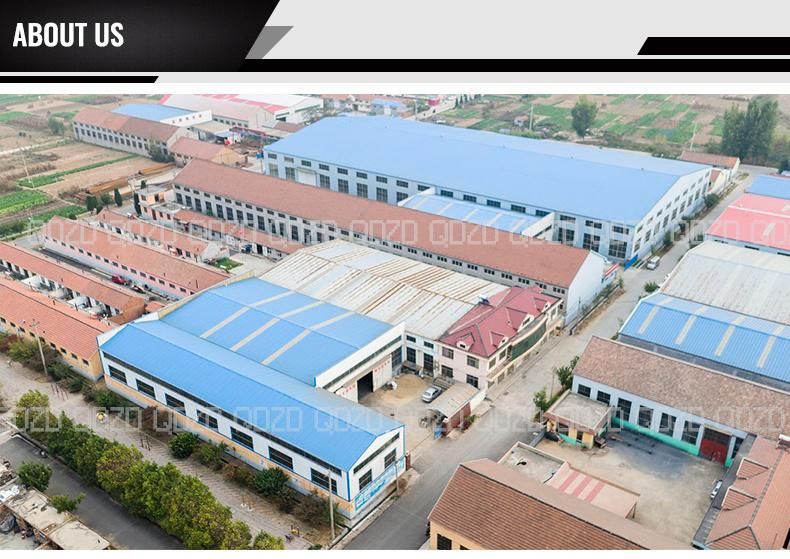

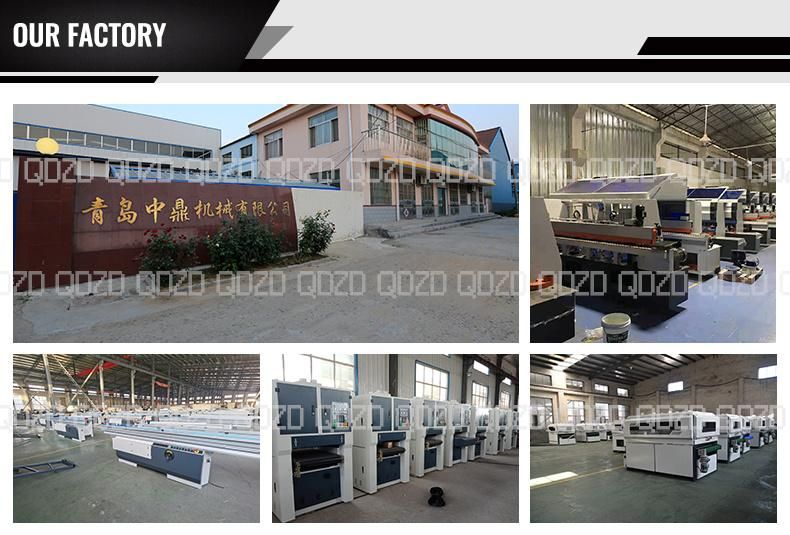

Company Profile
After Sales Service
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
