Automatic Heavy Duty Panel Board Turnover Machine for Plywood, Particle Board, OSB, MDF, LVL

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Type：Turnover Machine
  • Automatic：Automatic
  • Certification：CE, ISO
  • Transport Package：Container
  • Specification：2040x2100x2265mm
  • Trademark：METRO MACH

Base Info

  • Model NO.：YFB48-I
  • Origin：Linyi City, China
  • HS Code：8428392000
  • Production Capacity：200set,Month

Description

Basic Info.

Model NO. YFB48-I Origin Linyi City, China HS Code 8428392000 Production Capacity 200set/Month

Product Description

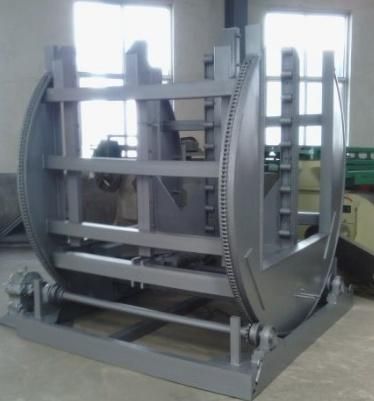

Overturning machine for plywood production line

1. The structure of this turnover machine is made of section steel and steel plate by fine welding, ensuringits structural strength and stability.

2. The hydraulic oil cylinder is of smooth and uniform compaction and easy to control, and the clamping force is adjustable.

3. The plate blank is fed in by means of rolling bearing,which causes no damage to the plate blank.

4. The control button and the indicating lamp are all located on the control panel, easy for operation as well nice and practical.

Technial Parameters:

ItemsYFB48-I
Cylinder diameter and strokeΦ 100x500mm
Max opening1250mm
Overturning angle180°
Overturning size2600x1250mm
Motor3+1.5kw
Overall size2040x2100x2265mm
Weightaround 1.87 T
Characteristic1.It can overturn 180°.
2.Good structure, sturdy and durable ,easy operation and good maintanance.
3. It has culinder automatic chucking system, work stable, and high efficency.

Automatic Heavy Duty Panel Board Turnover Machine for Plywood, Particle Board, OSB, MDF, LVLAutomatic Heavy Duty Panel Board Turnover Machine for Plywood, Particle Board, OSB, MDF, LVL
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
