Short Cycle Hot Press Machine for Laminate Plywood

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Work Forms：Hydraulic Pressure
  • Processing Technics：Hot Press
  • Structure：Frame Type
  • Pressing Shape：Flat Press
  • Platen Surface Pressure：High Pressure
  • Pressing Layer：Single Layer

Base Info

  • Work Mode：Continuous
  • Controlling Mode：CNC
  • Automatic Grade：Semiautomatic
  • Certification：CE, ISO, FDA
  • Transport Package：Standard Export Packing
  • Specification：about 40000 kg
  • Trademark：metro
  • Origin：China
  • HS Code：847930000
  • Production Capacity：8 Sets,Year

Description

Basic Info.

Work Mode Continuous Controlling Mode CNC Automatic Grade Semiautomatic Certification CE, ISO, FDA Transport Package Standard Export Packing Specification about 40000 kg Trademark metro Origin China HS Code 847930000 Production Capacity 8 Sets/Year

Product Description

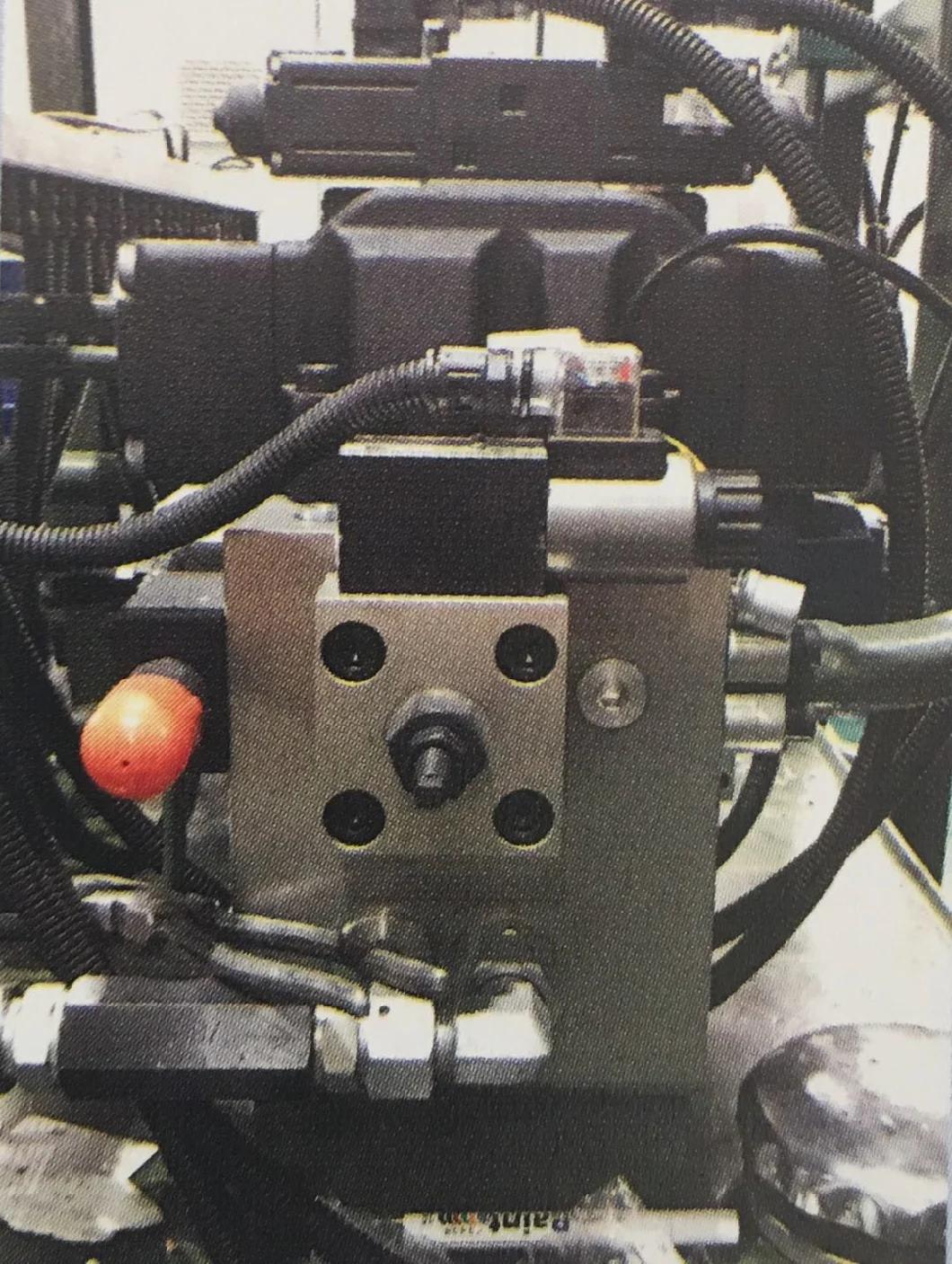

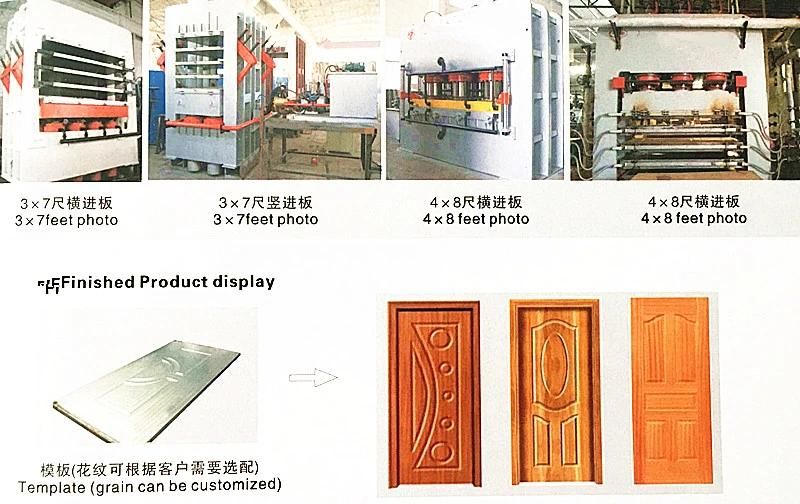

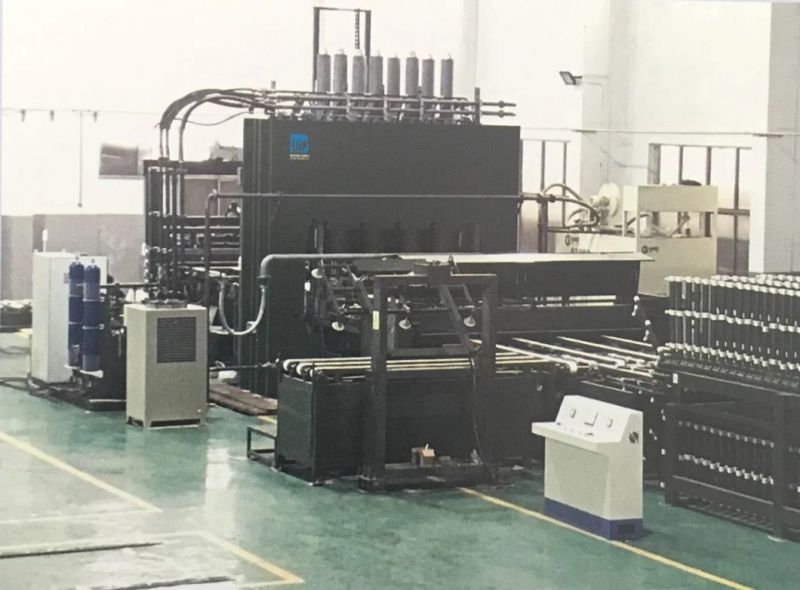

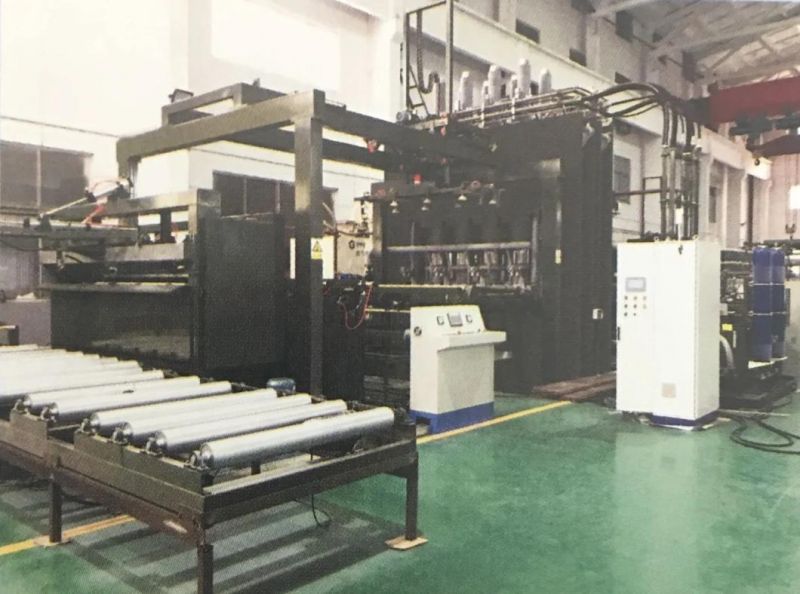

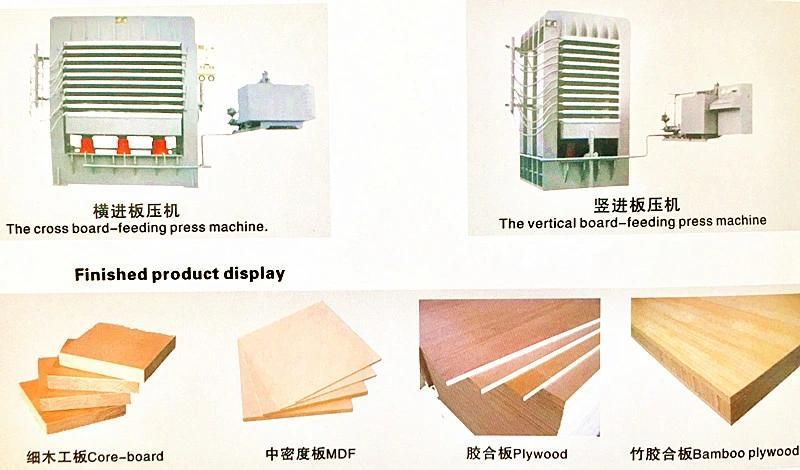

PHOTOS SHOW:

Short Cycle Hot Press Machine for Laminate Plywood
Short Cycle Hot Press Machine for Laminate Plywood
Short Cycle Hot Press Machine for Laminate Plywood
Short Cycle Hot Press Machine for Laminate Plywood
Short Cycle Hot Press Machine for Laminate Plywood
Short Cycle Hot Press Machine for Laminate Plywood

 SPECIFICATION:
 ModelBR214X8/5.0-10
Layers No.10 Layers
Dimension of the Heating Platen2700x1370x52
Daylight of the Opening 80mm
Heating MediumHeat Conduction Oil
Direction of Board EnteringCross
Dia.&Qty of the Cylinderø360x2
Intensity of Working Pressure of the Hydraulic System25Mpa
Installed Capacity of the Hydraulic System37.5kw
Overall Dimension5108x1370x5408

PRODUCTS INTRODUCTION:

1.  The portal frame is made by high-quality frame design,welding process, point through strict caculation, no deformation and high stability.

2. Multi-layer design, simple operatio, reliable performance, automatic control of tempeture and time, to ensure that hot plate temperature uniformity.

3. The hydraulic system for the rapid closure of pumping stations, advanced structure, low failure rate, large flow, pressure quicly, improve procuction efficiency.

4. This machine is widely used in plywod, block board, melamine panels and other decorative veneer.


CERTIFICATES:

Short Cycle Hot Press Machine for Laminate Plywood

SERVICES:

PRE-SALE SERVICES:

1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

SERVICES DURING THE SALE:

1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

AFTER SALE SERVICES:

1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
