• Model NO.：ML353, ML540
• After-Sales Service：24 Hours Technical Support by Email, Call, Video
• Working Experience：Twenty Years′ Experience
• Machine Painting Color：Be Made According to Your Need
• Delivery Detail：Quick Delivery in 20 Days
• Certification：CE, ISO
• Transport Package：Standard Package, Be Made According Cutomer Requi
• Specification：1720X2650X1360mm
• Trademark：XLH
• Origin：Qingdao
• HS Code：84659900
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. ML353/ ML540 After-Sales Service 24 Hours Technical Support by Email, Call, Video Working Experience Twenty Years′ Experience Machine Painting Color Be Made According to Your Need Delivery Detail Quick Delivery in 20 Days Certification CE, ISO Transport Package Standard Package, Be Made According Cutomer Requi Specification 1720X2650X1360mm Trademark XLH Origin Qingdao HS Code 84659900 Production Capacity 1000PCS/Month

Product Description

1 Product Application
Function: Panel saw, Moulder, Mortiser, Surface planer and Thicknesser
2 Parameter

Type	ML353
Panel saw:
Main saw speed	4375rpm
Main saw diameter	300mm
Spindle diameter of main saw	30mm
Scoring saw speed	7000rpm
Scoring saw diameter	90mm
Spindle diameter of scoring saw	22mm
Motor power	2.2kw
Aluminium table size	1500x310mm
Moulder:
Spindle diameter	30mm
Max.tool diameter	160mm
Cutter block length	105mm
Cutter block vertical stroke	115mm
Rotation speed	4300/6000rpm
Motor power	2.2kw
Mortiser:
Working table	230×500mm
Longitudinal stroke	200mm
Cross stroke	100mm
Vertical stroke	60mm
Tool coupling diameter	16mm
Surface planer:
Working table	300×1500mm
Planer shaft diameter	70mm
Planer shaft rotation speed	5700rpm
Knives	3pcs
Work piece min.length	15mm
Infeed table max.adjustment	4mm
Thicknesser:
Working table	300×660mm
Work piece min.length	200mm
Max. removal thickness	5.5mm
Infeed speed	7m/min
Piece passage	220mm
Min.piece passage	4mm
Motor power	2.2kw
Total power	2.2X3kw
Overall dimensions	1720X2650X1360mm
Net weight	580kg

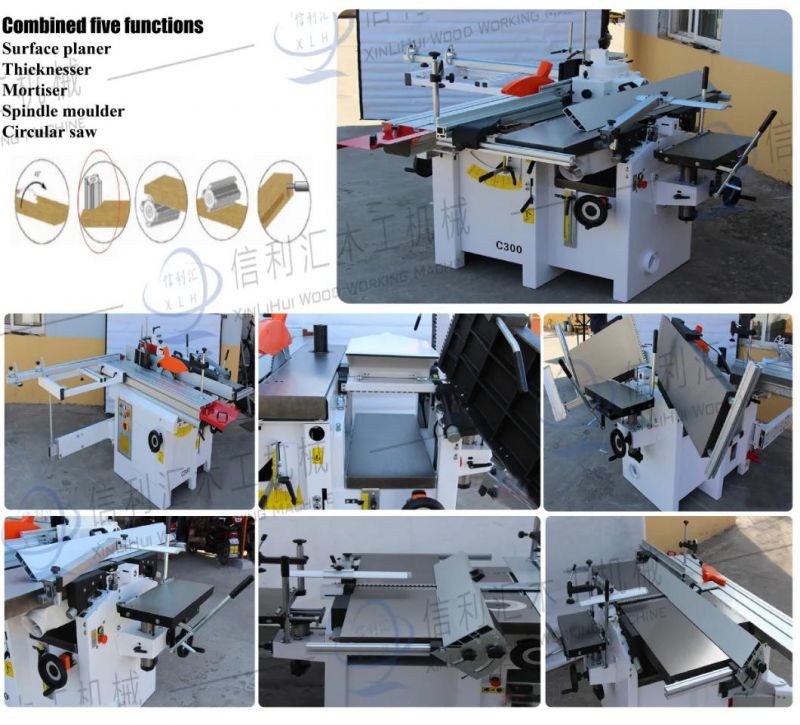

3,Some machine pictures for you

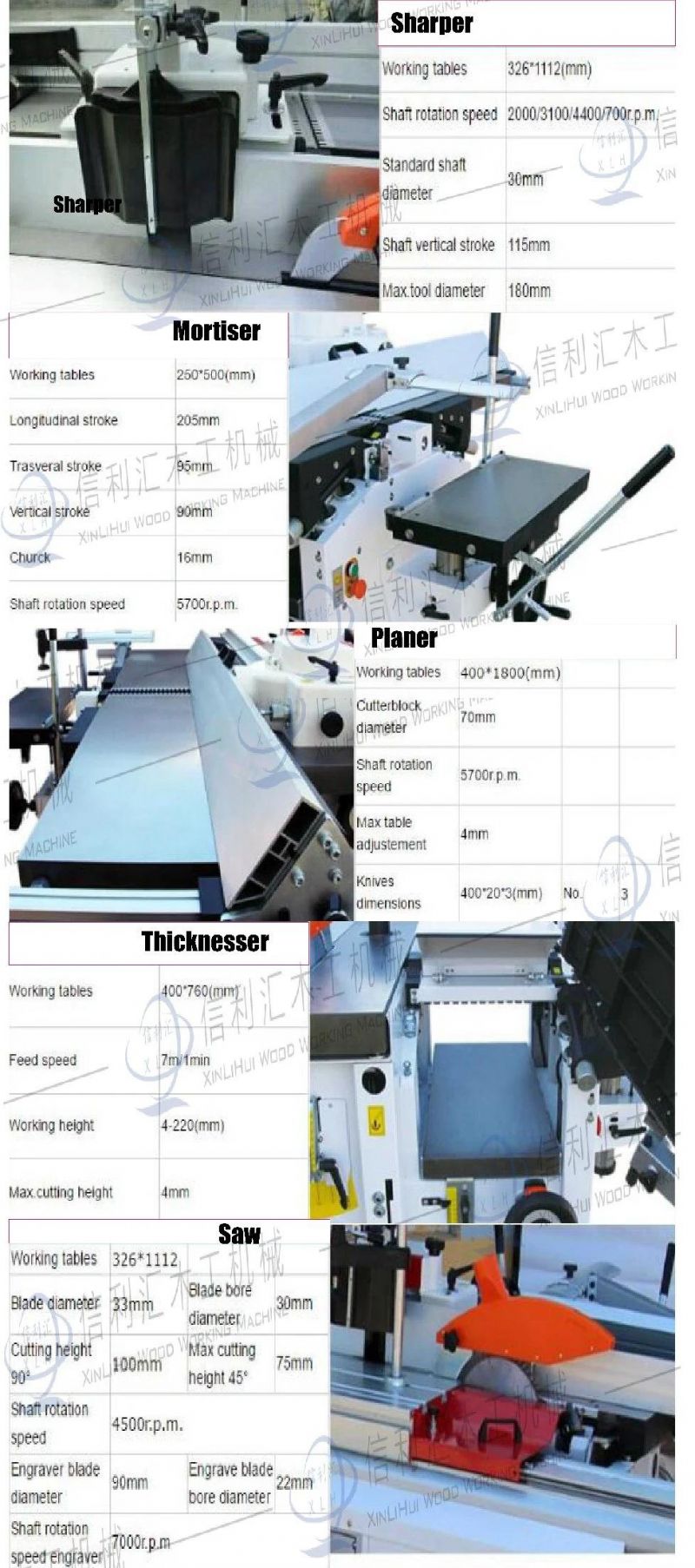

4,Detail pictures for you


Feature:
Functions including planer , thicknesser ,sawing ,morting, spindle moulder ,profiling .More compact frame structure design,top quality requirements for the products finishing
Tilting saw unit diameter 315mm with scoring saw blade ,max cutting depth 90mm
Aluminum alloy sliding table length 1800mm ,max cross cut width 650mm
New improved carriage : stronger carriage ,bigger carriage support
Four speed of spindle : 1400,3500,6000,8000r/min




8, Company Information
Qingdao  Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.

Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.

The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards.  With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad.  Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.  It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.
