• Model NO.：LT-2130
• Model：2130
• Working Area：2100(X)*3000(Y)*200(Z)mm
• Machine Structure：Welded Steel Tube, Cast Iron Vertical Shafts and S
• Working Table：Vacuum Table with Vacuum Pump
• Spindle：Hqd 9.0kw Atc Air Spindle
• Spindle Rotating Speed：12000-24000rpm
• Collet Size：ISO30
• Guide Rail：Taiwan Hiwin Linear Square Guide Rail
• Drivers：Leadshine 2206 Hybrid Servo Motor & Drivers
• Control System：Syntec FC Control System
• Inverter：Fuling Inverter
• Working Accuracy：<0.05,300mm
• Compatible Software：Type3,Castmate,Coreldraw,Autocad and Other Cam,CAD
• Transport Package：One Plywood Case
• Specification：4300*2550*1950mm; 1700KGS
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300

Product Description

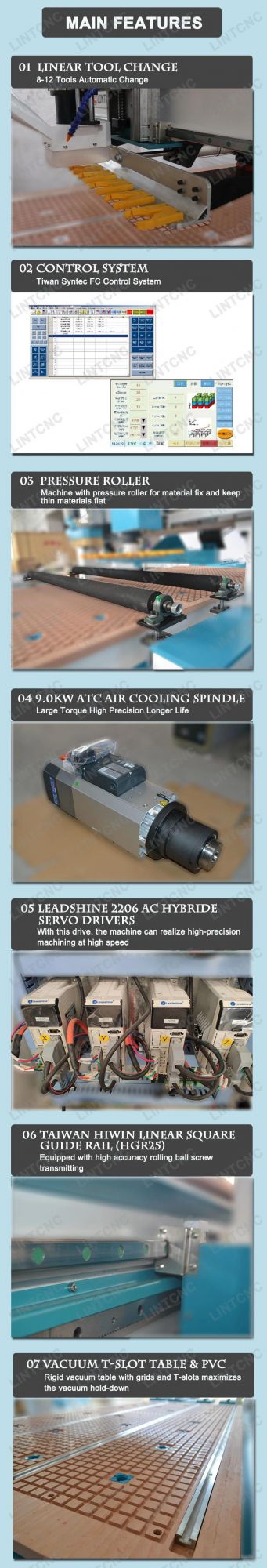

Product Parameters

1. Z axis feeding height 200mm

2. Square tube welded steel frame structure-8mm thickness

3. Vacuum table +5.5kw Vacuum pump

4.  X,Y axis by helicia gear rack, Z axis by pneumatic

5. Leadshine 2206 Hybrid servo motors & drivers

6. HQD 9.0KW ATC air cooling spindle

7. Syntec FC control system

8. Taiwan HIWIN linear square guide rail

9.With dust collector to suck the processing dust

Samples

Wood Processing: processing of various furniture such as door, window, cabinet, screen

and so onAdvertisement: engraving and cutting various labels and number plate.

Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.

Applicable materials wood, aluminum bord, brass board, plastic, density board, MDF board, wave board, PVC,

acrylic, crystal, light marble and other nonmetal materials and light metal materials.

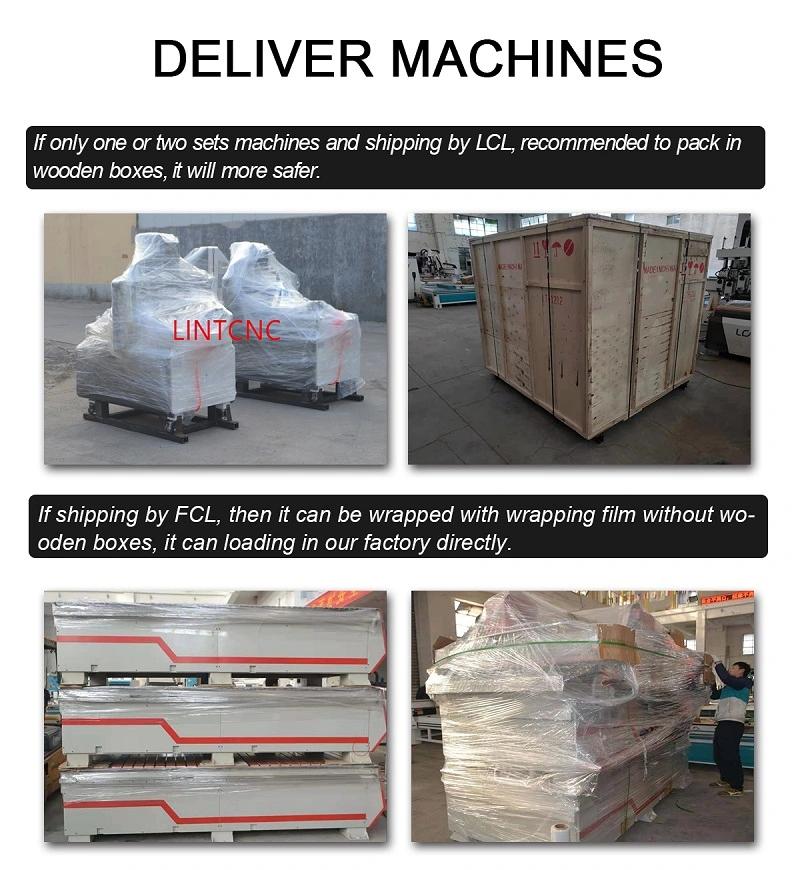

Packaging & Shipping

After Sales Service

--Warranty: 24 months for cnc router; 9 months for spindls.

--Technical support for the whole lifetime of laser machine

--If there is any part broken during warranty, then change it for free. if out of warranty, you can buy the

part at your market easily as we use very famous brand and we tell you the model, or you can buy it from

us and cost price can be promised.

Company Information

FAQ

 1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
