• Model NO.：DW1325
• Table：T-Slot or Vacuum Table
• Inverter：Fuling Inverter
• Spindle：Water Cooling or Air Cooling Spindle
• Application：Nonmetal or Softmetal
• Working Voltage：220V,380V
• Transmission：X,Y Axis Rack & Pinion, Z Axis Ball Screw
• Certificate：Ce SGS
• Working Area：1300*2500*200mm
• Customized：Yes
• Atc：6tools or 8 Tools or 12 Tools
• Transport Package：Plywood Package
• Specification：1300*2500*200mm
• Trademark：Dwin Made In China
• Origin：Jinan City, Shandong Province
• HS Code：8465990000
• Production Capacity：50 Sets,Month

DescriptionsParametersModleDW1325Working area1300*2500*200mmControl systemNC studio control systemSpindle3.0/ 5.5kw /water cooling spindle or air cooling spindle Spindle speed0-24000RPMMotorleadshine stepper motor or yaskawa servo motorDriverleadshine or yaskawa Inverter5.5kw/7.5KW Fuling InverterTable surfaceT-slot and vacuum working table with 4 or 6 zonesStructureNew type thicker and bigger heavy duty welded frame and gantryVoltage220v, 1ph, 50Hz (380v for optional)Lubrication systemManual lubrication system (automatic for optional)Transmission

X,Y rack and pinion drive; Z Taiwan TBI ball screw

Taiwan HIWIN linear square rail 20# for X,Y,Z axis

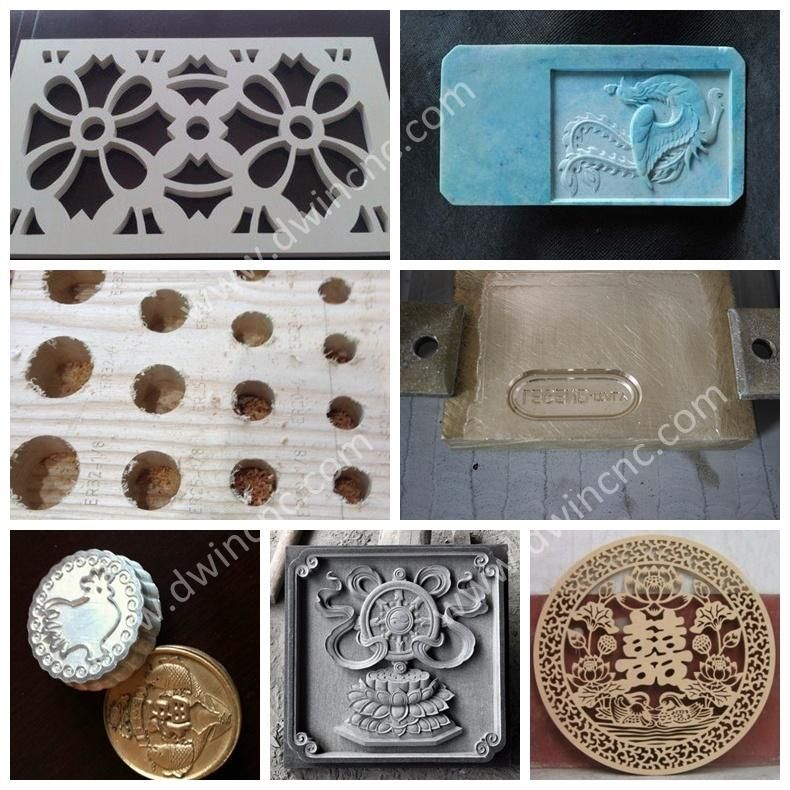

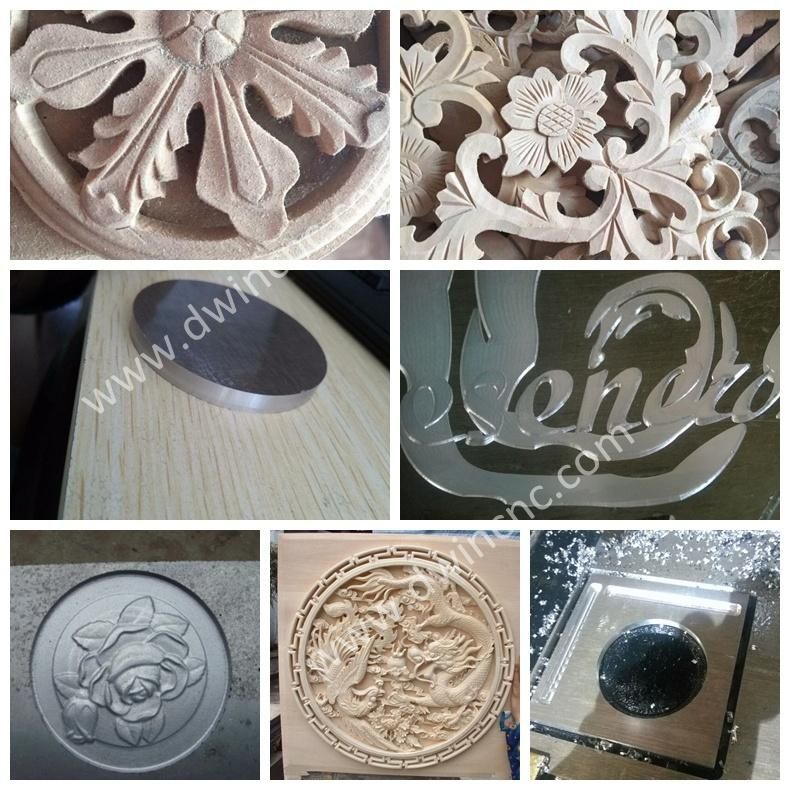

Traveling speed32m/minWorking speed20m/minColletER25Tool sensor calibrationSimple tool sensor calibrationOptionalCW3000 Industrial ChillerSample picture :



Application

1. Wood furniture industry


Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box
Certificate :


exhibition (2019)




Our service

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.
