Portable Edge Banding Machine with Straight and Curve Panel
Qingdao Zhongding Machinery Co., Ltd.- Function：Gluing, Edge Banding, Fine Trimming, Scraping, Buffing
- Type：Straight Line
- Edging thickness：0.3-3mm
- Automatic Grade：Portable
- Panel Feeding Speed：5m,Min
- Certification：CE, ISO
Base Info
- Model NO.：JBD80
- Panel Thinkness：Adjusted
- Min.length panel：Adjusted
- Min.width panel：45mm
- Manufacturing Principles：Glue Tank Overhead
- Customized：Customized
- Glue Pot Volume：270ml
- Total Power：765W
- Temperature：120-150
- Shipping Port：Qingdao
- Speed Adjustment：Constant
- Shape of Work Piece：Straight & Curve
- Weight：34kg
- Motor Power：15W
- Edge Glue：Single Glue Cover
- Transport Package：Wooden Box
- Specification：375*300*420mm
- Trademark：QDZD
- Origin：China
- HS Code：84659900
- Production Capacity：500sets,Month
Description
Basic Info.
Model NO. JBD80 Panel Thinkness Adjusted Min.length panel Adjusted Min.width panel 45mm Manufacturing Principles Glue Tank Overhead Customized Customized Glue Pot Volume 270ml Total Power 765W Temperature 120-150 Shipping Port Qingdao Speed Adjustment Constant Shape of Work Piece Straight & Curve Weight 34kg Motor Power 15W Edge Glue Single Glue Cover Transport Package Wooden Box Specification 375*300*420mm Trademark QDZD Origin China HS Code 84659900 Production Capacity 500sets/MonthProduct Description

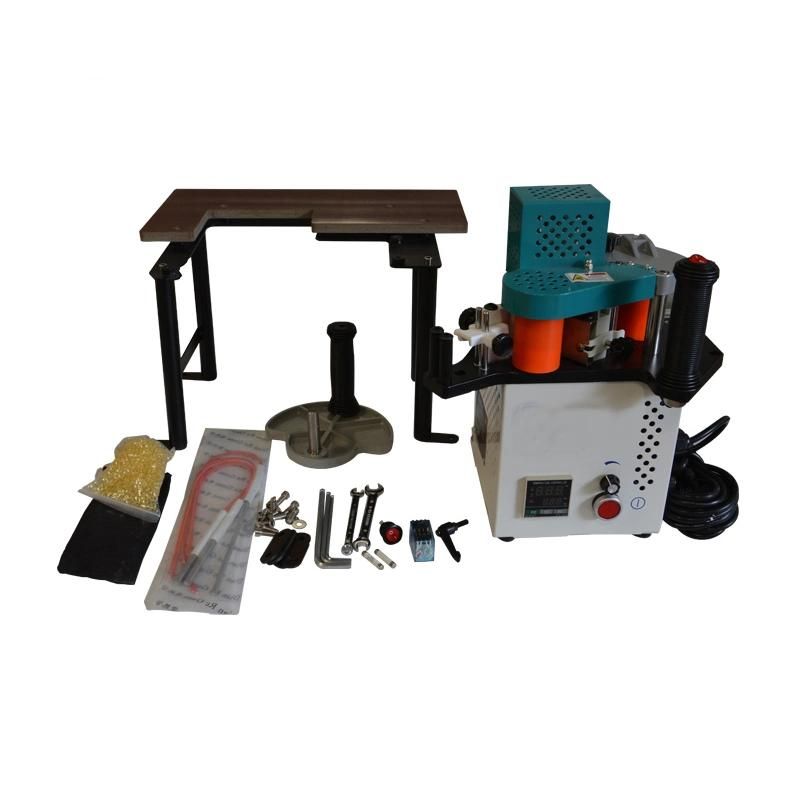

Portable edge banding machine with straight and curve panel
Technical Parameters
| Banding thickness | 0.3-3.0mm |
| Min. edge diameter | 40mm |
| Edge glue | single glue cover |
| Shape of workpiece | straight & curve |
| Total power | 765w |
| Banding width | 45mm |
| Feeding speed | 5m/min |
| Speed adjustment | constant |
| Motor power | 15w |
| Temperature | 120-150ºC |
| Glue pot volume | 270ml |
| Weight 1 | 14kg |
| Weight 2 | 34kg |
| Package size 1 | 375*300*420mm |
| Package size 2 | 465*430*515mm |
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
The Workshop
Feature:
Customer Visiting:
Our Certificate:

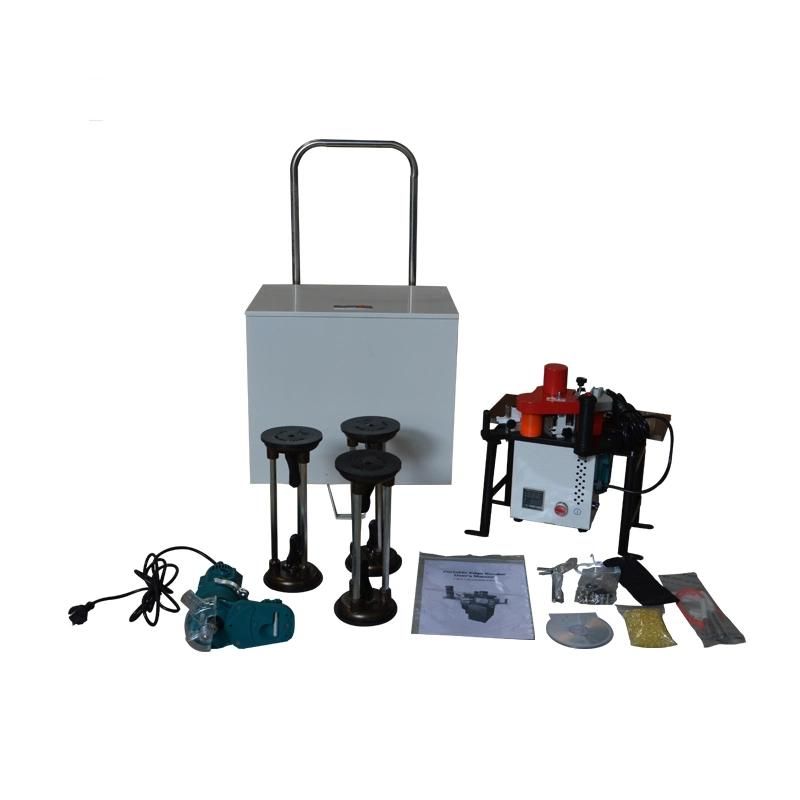

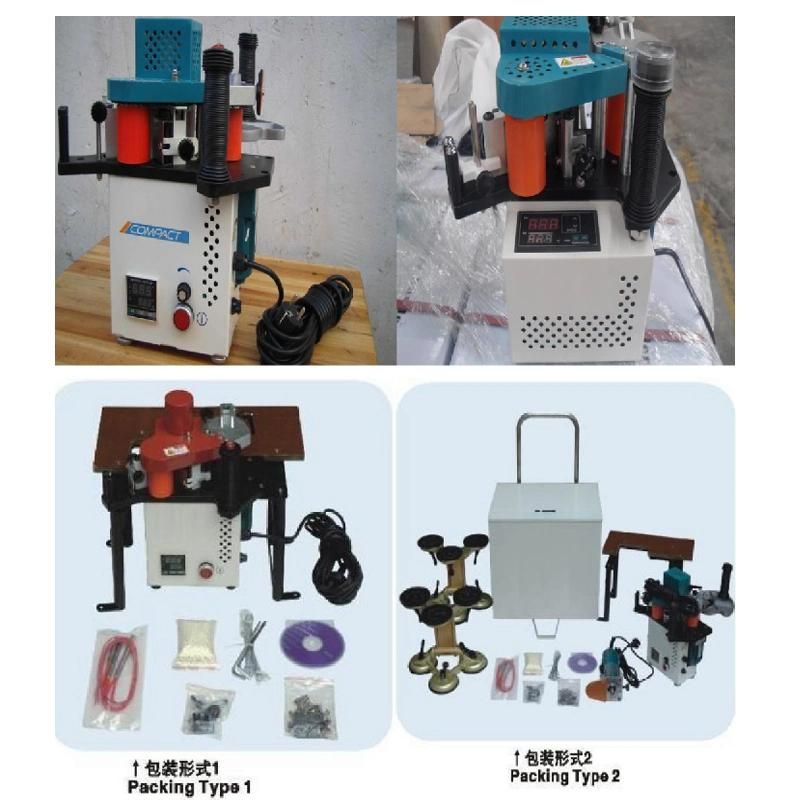

The package:
