• Model NO.：MF450A
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Customized：Customized
• Banding Tape Thickness：0.4-3mm
• Banding Tape Width：12-65mm
• Workpiece Thickness：10-60mm
• Workpiece Length：>=100mm
• Workpiece Width：>=50mm
• Feeding Speed：10-23m,Min
• Air Pressure：0.8MPa
• Transport Package：Plywood Case
• Specification：6700*850*1520mm
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659900
• Production Capacity：200 Set, Month

Basic Info.

Model NO. MF450A Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Customized Customized Banding Tape Thickness 0.4-3mm Banding Tape Width 12-65mm Workpiece Thickness 10-60mm Workpiece Length >=100mm Workpiece Width >=50mm Feeding Speed 10-23m/Min Air Pressure 0.8MPa Transport Package Plywood Case Specification 6700*850*1520mm Trademark QDZD Origin Qingdao HS Code 84659900 Production Capacity 200 Set/ Month

Product Description

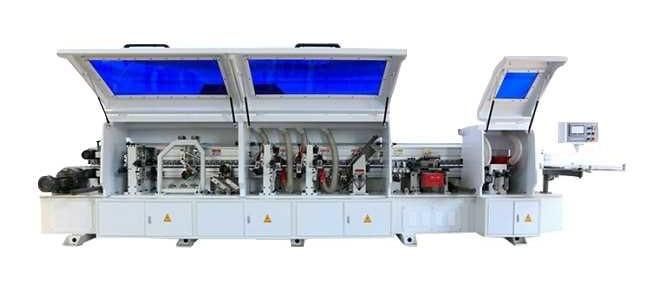

Woodworking automatic edge banding machine with CE

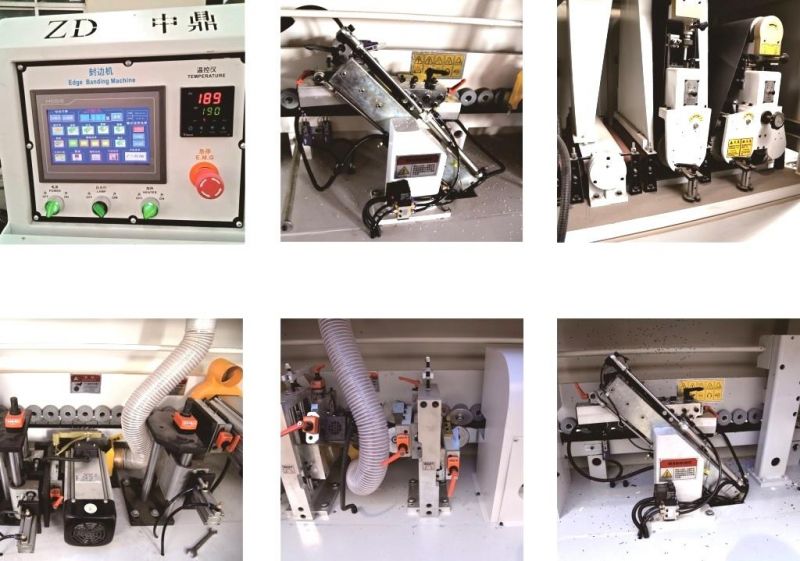

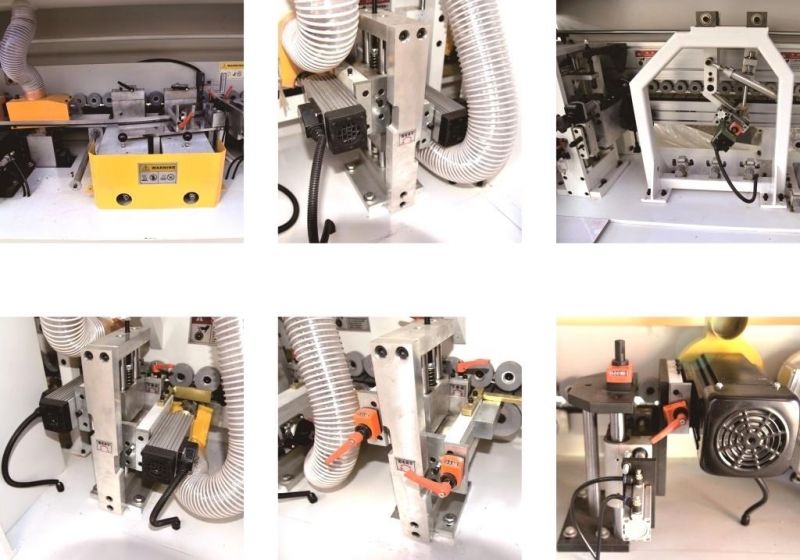

Product details:


Specification:


Banding tape thickness	0.4-3mm	Feeding speed	10-23m/min
Banding tape width	12-65mm	Air pressure	0.8Mpa
Workpiece thickness	10-60mm	Function	Pre-milling, Gluing, End trimming, Rough trimming, Fine trimming, Corner trimming, Scraping and Buffing
Workpiece length	>=100mm	Overall dimension	6700*850*1520mm
Workpiece width	>=50mm	Packaging	Plywood case

Advantage:

-The glue mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid conglutination.

-End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.

-Scraping unit for a perfect finishing of the applied edge.

-Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.













Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO

FAQ:

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.

Package:



About us:


Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
