• Model NO.：S100
• Working Voltage：AC380,3pH,50Hz
• Configuration：9kw Spindle with Linear Atc
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：1300*2500*300 mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. S100 Working Voltage AC380/3pH/50Hz Configuration 9kw Spindle with Linear Atc Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 1300*2500*300 mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

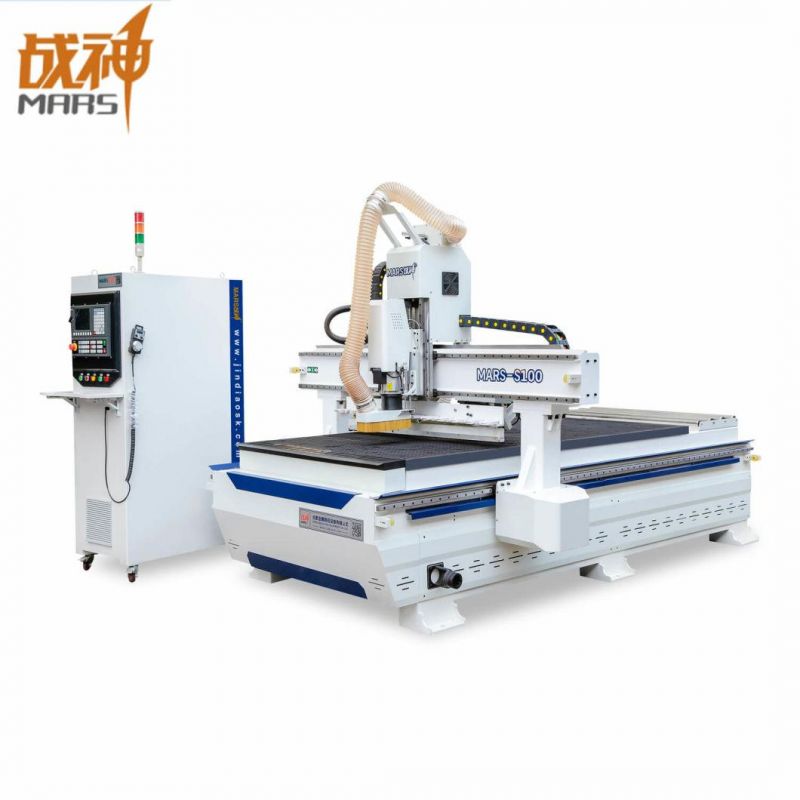

S100 9KW Spindle with CE Approved CNC Machine for Cabinet doors
Keywords:15 years experience of production
                     ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                     Three Brand: Mars, Golden Eagle,Borio



Description:
S100 9KW Spindle with CE Approved CNC Machine for Cabinet doors is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include cutting,milling,drilling and slotting.


Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.


 Parameters:

Model	S100 ATC woodworking cnc router center machine with linear ATC
X/Y/Z axis working stroke	1300*2500*100mm
Table surface	vacuum Table
Frame machine	Thick steel tube welded structure, w/ aging treatment
Spindle power	9KW Italy HSD ATC air cooling spindle
Spindle speed	0-24000 rpm
Automaitc tool change	Straight, 8pcs
Control system	Taiwan Syntec 4 axis control System
Drive sytem	Japan Yaskawa servo motor & driver
Transmission	X/Y axis helical rack & pinion, Z axis ball screw
Guide rail	Taiwan imported linear guide rail
Vacuum pump	7.5kw vacuum pump
Inverter	Fuling or Zoncn
Oil lubrication	Automatic
Positioning Accuracy	± 0.03mm

Accessories:

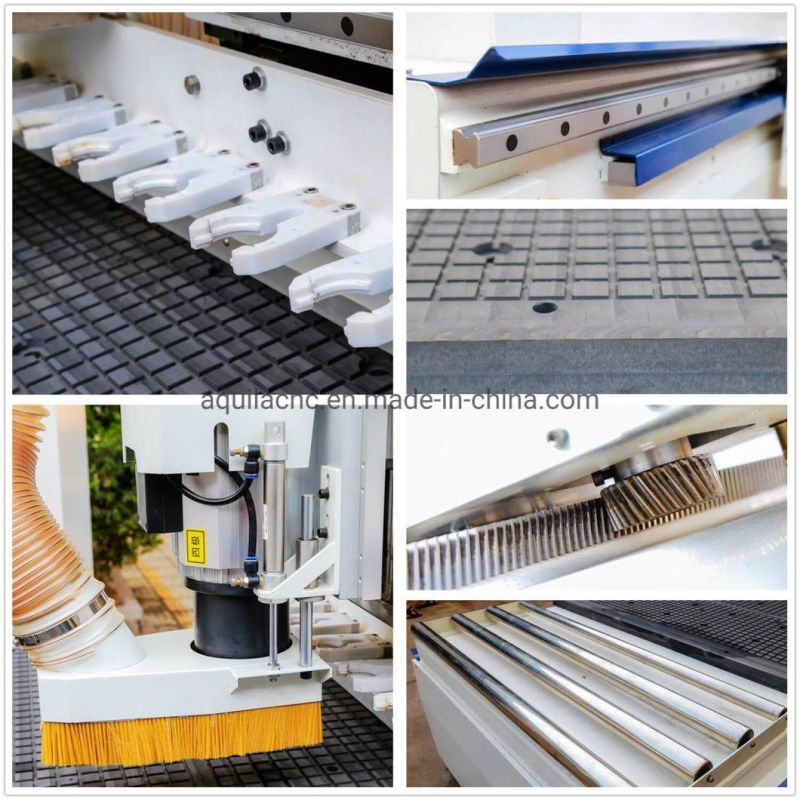

Performance Features:1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Linear type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
5. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
6. Taiwan planetary reducer, small volume, withstand large torque, high transmission efficiency, wide range of deceleration.
7. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
8. Syntec CNC control system can automatically accomplish multi-layer 3D job. Easy to operate, fully support automatic production. Samples:

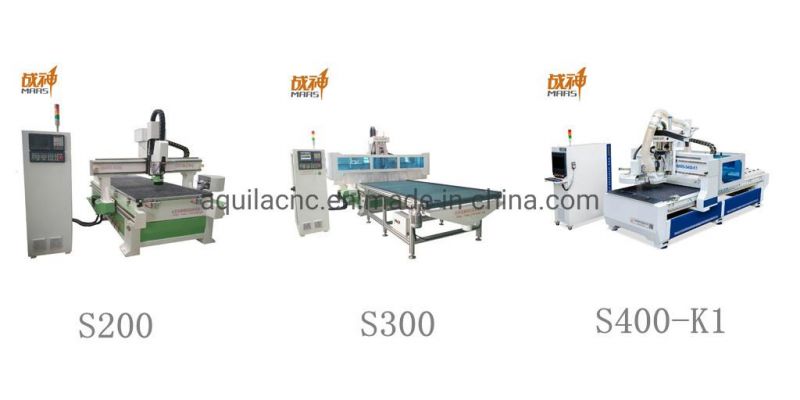

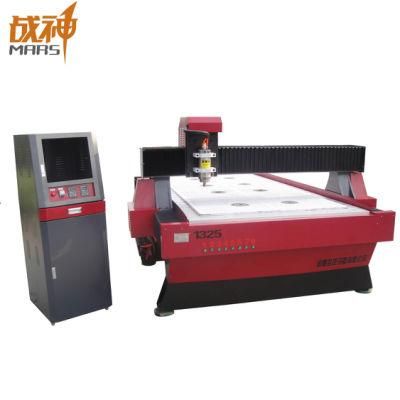

Similar products:
