• Model NO.：JC1530-5AXIS
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：CNC Router Engraving Machine with Rotary
• Structure：Thick Steel Wall Structure
• Table：T-Slot or Vacuum
• Working Area：1500X3000X1000mm
• Driving System：Servo Motor and Driver
• Option：Rotary Device
• Transport Package：Wrapped with Protection Film,Fasten by Metal Wires
• Specification：customized
• Trademark：CHAODA
• Origin：China

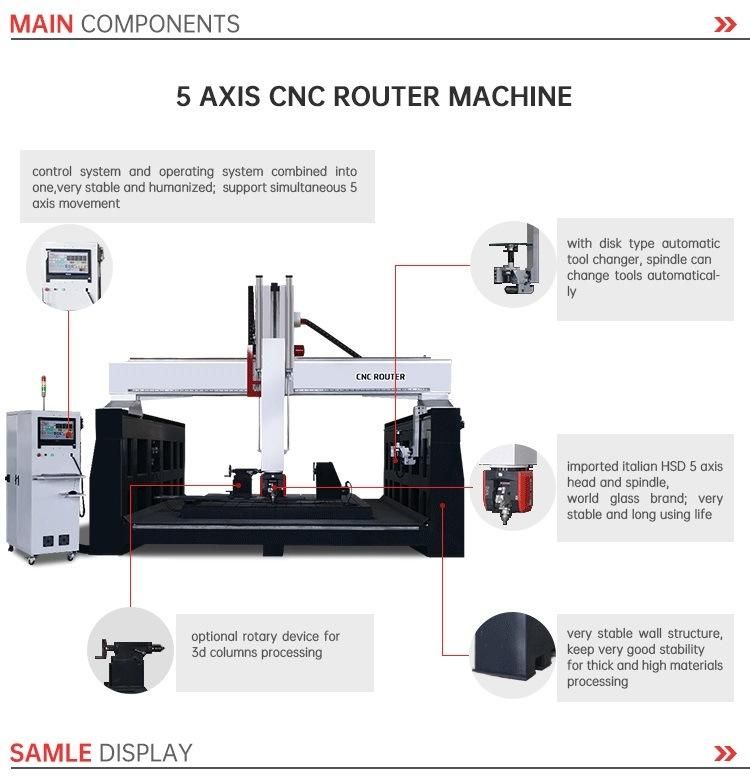

Model No.JC1530-5AXISX,Y,Z,A,C working size1500*3000*1000mm* ±120°* ±245°Whole structureheavy duty steel wall structureTable surfaceT-slot with clamps(option:vacuum table)Spindle10KW ATC spindle, cooled by liquidTool magazine Disk type automatic tool changer, with 8pcs tool magazine Driving systemJapan YASKAWA servo motor and driverInverterDeltaOperating system5 axis Syntec (option:OSAI) Operation languageG codeWorking voltageAC380V, 3-phase, 50HzRunning environmentTemperature: 0ºC-45ºC; Relative humidity:30%-75%

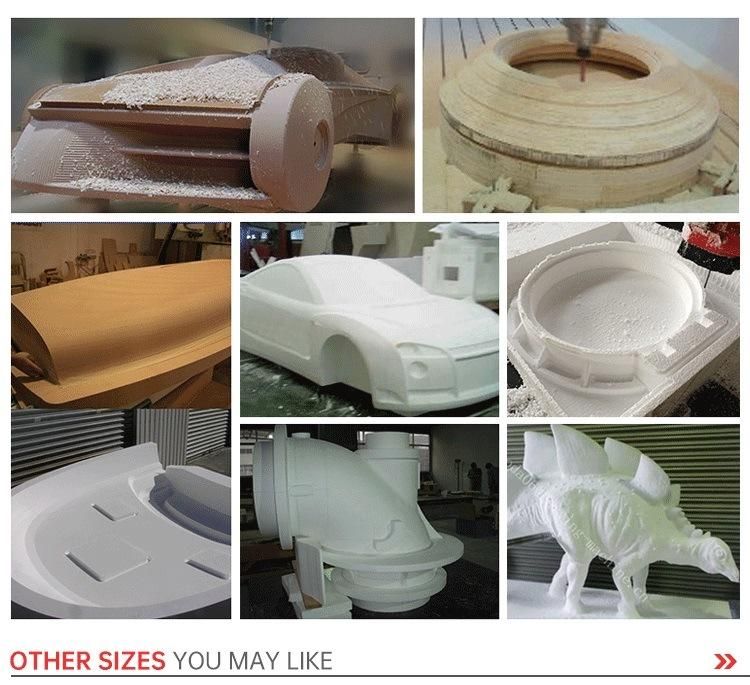

It can process many materials,like eps foam,woods, MDF, Composite boards, Alucobond,PVC, Rigid plastics,polyester, fiberglass,
Acrylic,Organic glass, Aluminum,etc.






1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
