• Model NO.：R7A
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Transport Package：Wooden Case
• Specification：9.3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. R7A Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Transport Package Wooden Case Specification 9.3CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

high quality pre milling functions automatic edge banding machine

Type	R7A
Banding tape thickness	0.4-3 mm
Banding tape width	12-65 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.8 KW
Feeding motor power	3.7 KW
Pre-milling motor power	2.2 KW x 2
Glue spreading power	0.75 KW
End trimming power	0.5 KW x 2
Rough trimming motor power	0.75 KW x 2
Fine trimming power	0.75 KW x 2
Corner rounding motor power	0.5 KW x 2
Polishing motor power	0.37 KW x 2
Feeding speed	10-23 m/min
Air pressure	0.8 Mpa
Overall dimension	6700x850x1520 mm
Packing size	6730x880x1580 mm
N.W.	2800 KGS
G.W.	2950 KGS

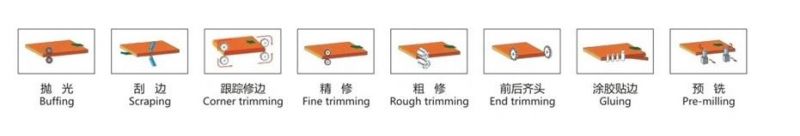

Feature:

1. Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.
2. The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
3. End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
4. Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
5. Profiling unit is to make the board ending more smooth and aesthetic.
6. Scraping unit is for a perfect finishing of the applied edge.
7. The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.

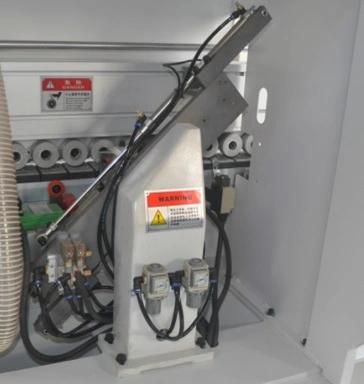

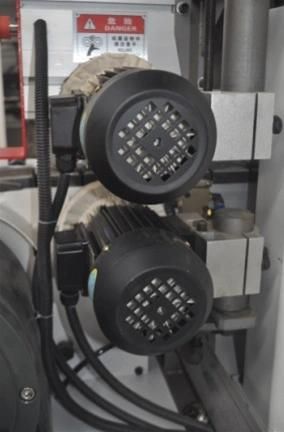

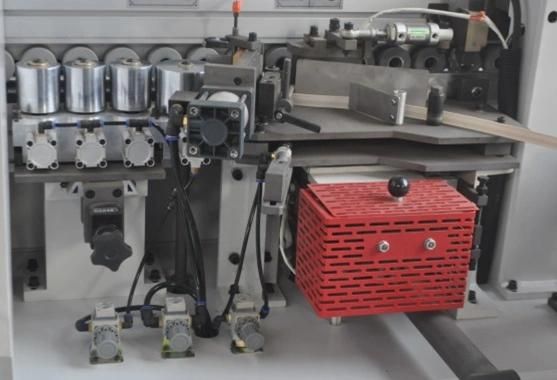

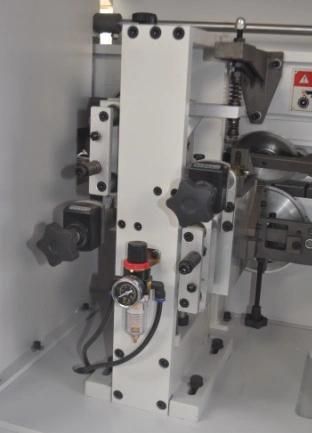

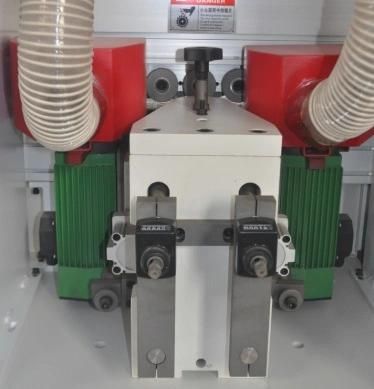

Product Details:

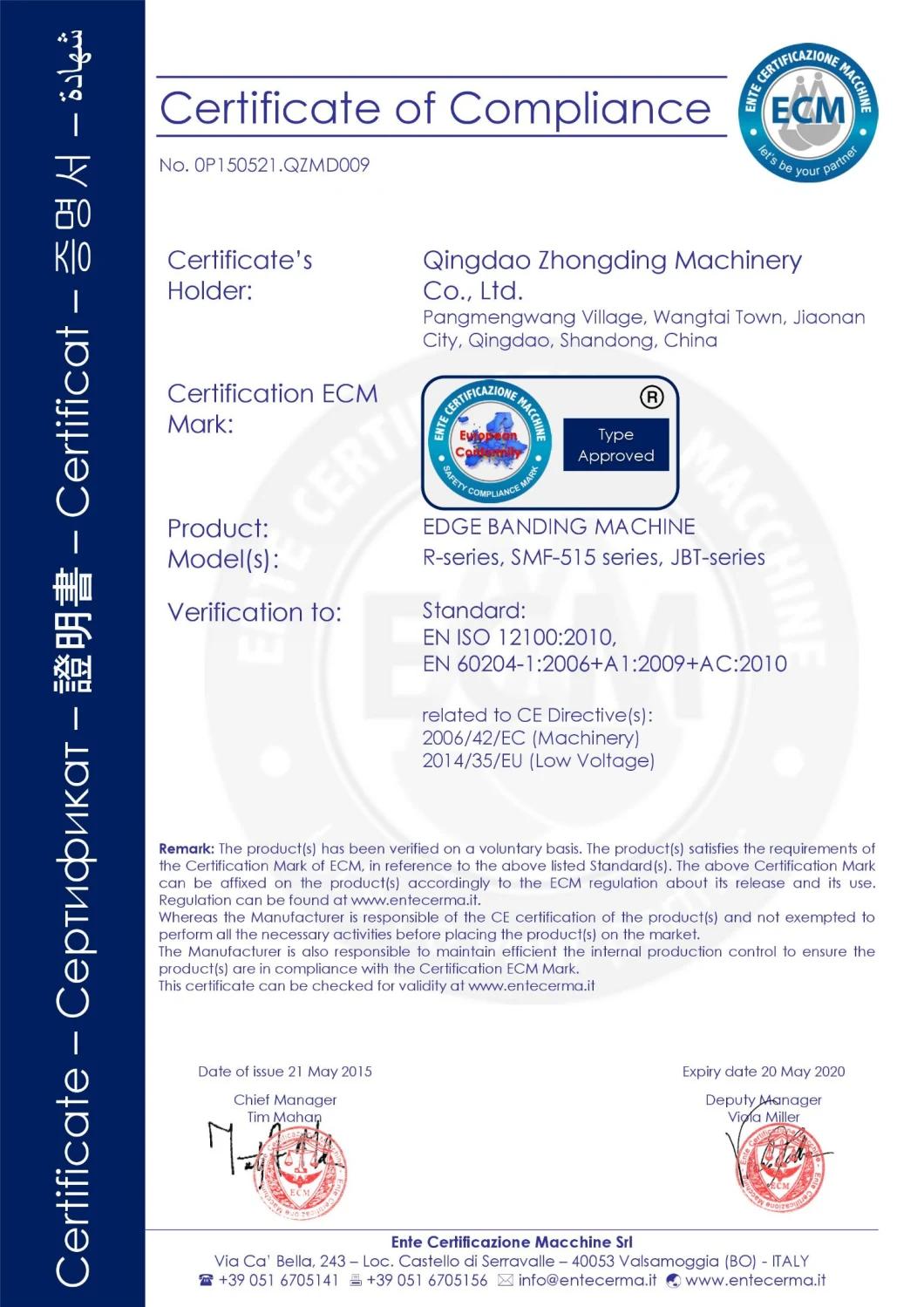

Certificate:

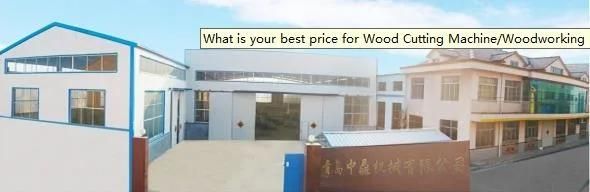

Our company:



Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
