Sawdust Wood Pellet Machine
Shandong Kingoro Machinery Co., Ltd.- Type：Vertical Ring Die Wood Pellet Machine
- Voltage：OEM According to Customer′s Requirement
- Automatic Grade：Semiautomatic
- Controlling Mode：Artificial
- Energy Saving：Energy Saving
- Certification：ISO
Base Info
- Model NO.：560
- Warranty：1 Year
- Customized：Both
- Condition：New
- Color：Green
- Material：Steel
- Capacity：1.2-1.5t,H
- Power：90kw
- Weight：5.6ton
- Transport Package：Wooden Box
- Specification：2600x1300x2300mm
- Trademark：Kingoro
- Origin：Jinan, China
- HS Code：8474802000
- Production Capacity：1000,Pieces
Description
Advantages:
1. Feeding vertically and direct in place, with stationary die and rotary pinch roller, the material is centrifugal and equispaced around the die

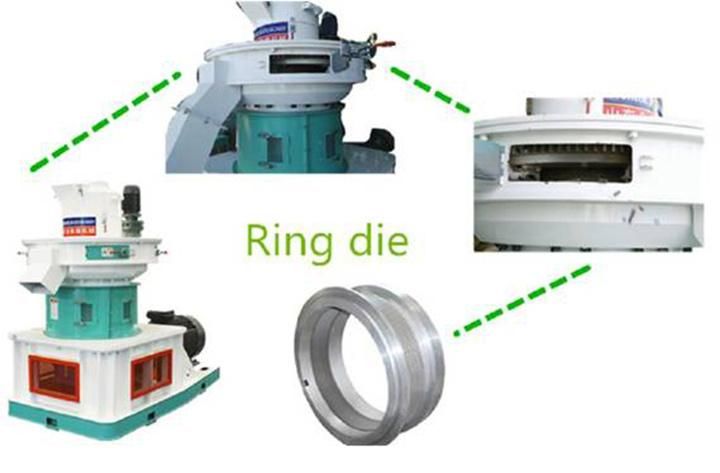

2. Double-ring die, can use for substitute
3. Unique automatic lubricating system: lubricate the bearing, dies and rollers, increase the produce efficiency and reduce energy consumption. It can work continuous 20 hours
Whole sections:
Vertical ring die sawdust pellet machine is involved in the whole wood pellet production line, and the whole wood pellet production line consist of pre-crushing section; Hammer mill; Drying; Pelletizing; Cooling & Package.
Technical Support:

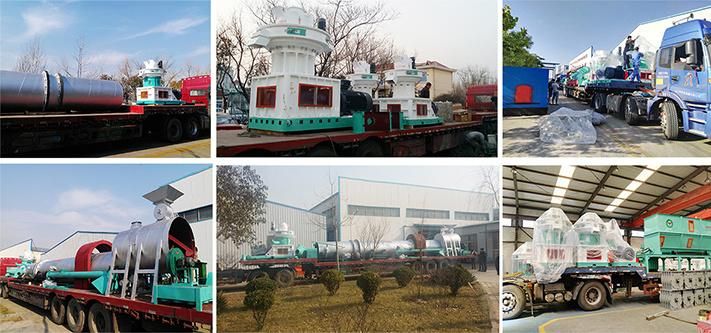

Delivery photo:
Common questions from client:
1).Q:How did you define your model as 560/760/850?
A: The SZLH series 560/580/850 is defined according to the main parts mold's size.
for example, 560, the mold's diameter is 560mm.
2).Q: What's the suitable moisture of material that to be granulated?
A:The moisture should be controlled under 20%, and in the range of 12%-16%.
3). Q: How long is your warranty??
A: One Year warranty for the machine, do not include the wearing parts, the main wearing part is the ring die, the lifetime is 800-1000hours for 2 layers, customer's feedback can use 1200hours
4). Q: Will you send engineers to install the plant?
A: Yes, overseas engineer service is available when needed.
5). Q:What kind of raw material can be used to press pellets? what is the requirement?
A: Raw material: hard and soft wood, agricultural straw, EFB fiber, rice husk, peanut shell etc.
the size should be about 5-8mm, moisture should be between12-16%. Otherwise,
it need other related equipment to crush and dry your raw material. To ensure the raw material can press smoothly.
