• Model NO.：MBQ416A
• Cutter Shaft：3
• Spindle Speed：＜5000rpm
• Process Type：Heavy Processing
• Certification：CE, ISO
• Machine Item：Four Side Moulder Planer
• Voltage：380V, 220V 50herz, Can Be Customized
• Machine Painting Color：Be Made According to Your Need
• Price：More Competitive Price Than Other Competitors
• After-Sales Service：24 Hours Technical Support by Email, Call, Video
• Warranty Time：Offer Free Spare Parts and Service Within 12 Month
• Working Experience：Twenty Years′ Experience
• Delivery Time：Quick Delivery in 15days
• Max.Working Width：160mm
• Min.Working Width：25mm
• Transport Package：Customized
• Specification：2700x1400x1710mm
• Trademark：XINLIHUI
• Origin：Qingdao
• HS Code：8465920000
• Production Capacity：100,Week

Basic Info.

Model NO. MBQ416A Cutter Shaft 3 Spindle Speed ＜5000rpm Process Type Heavy Processing Certification CE, ISO Machine Item Four Side Moulder Planer Voltage 380V, 220V 50herz, Can Be Customized Machine Painting Color Be Made According to Your Need Price More Competitive Price Than Other Competitors After-Sales Service 24 Hours Technical Support by Email, Call, Video Warranty Time Offer Free Spare Parts and Service Within 12 Month Working Experience Twenty Years′ Experience Delivery Time Quick Delivery in 15days Max.Working Width 160mm Min.Working Width 25mm Transport Package Customized Specification 2700x1400x1710mm Trademark XINLIHUI Origin Qingdao HS Code 8465920000 Production Capacity 100/Week

Product Description

1, Introduction:

Professional solution for heavy-duty four-side cutting operation of the wooden panel in the floor,doors and windows,solid furniture,finger jointing board and decorative wood moulding plant. Mainly used for processing wood square, board, adornment wood line, top and down sides for planing light treatment. Leabon Machinery is specialized in the manufacture and R&D for woodworking machines,your special requirements are welcome.

2 Parameter:

Model	MBQ416A
Max.working width	160mm
Min.working width	25mm
Max.working thickness	100mm
Min.working thickness	8mm
Spindle amounts	4pcs
Spindle speed	6000rpn
Feed speed	6-35m/min
Spindle diameter	φ40mm
Cutter diameter First bottom cutter	φ125
Right vertical cutter	φ125-φ160
Left vertical cutter	φ125-φ160
First top cutter	φ125-φ160
Motor power First bottom cutter	4kw/5.5hp
Right vertical cutter	3kw/4hp
Left vertical cutter	3kw/4hp
Fist top cutter	3kw/4hp
Feed motor	3kw/4hp
Beam elevation	0.55kw/0.75hp
Suction hood Dia.	φ125

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!
Product show:

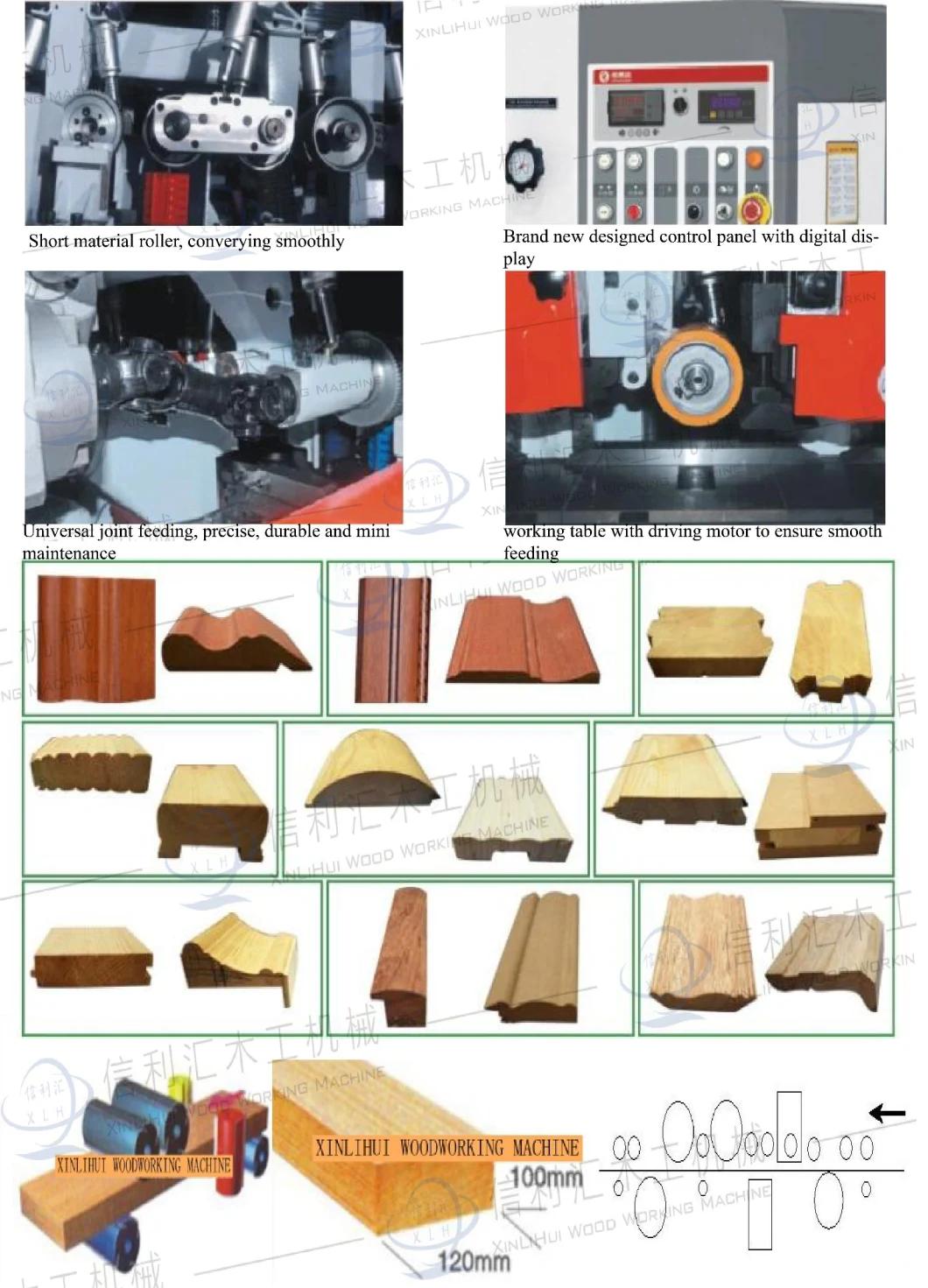

Detail Show:


Main features:

1.Each main shaft is driven by independent electric motor,cutting force is powerful

2.Main shaft is adjusted to focus on the front,operation is convenient.

3.Hard chrome plating work table is durable.

4.Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.

5.Multi-group drive rollers improve feeding efficiency.

6.Pneumatic compressed feeding roller is applied,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.

7.Adopts central charging system,features convenience and promptness.

8.International brands electrical parts are applied for good stability.

9.Spare parts are thick and solid to maintain high precision,high stability and high reliability.

10.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.

11.The universal shaft system is designed specially for machining various complicated products.



8, Company Information
Qingdao  Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.

Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.

The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards.  With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad.  Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.  It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.
