Wood Working Saws High Speed Electronic Automatic Cut-off Saw for Wood
Qingdao Samac International Trading Co., Ltd.- Type：Frame Saw
- Power Type：Electric
- Layout：Horizontal
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Precision：High Precision
Base Info
- Certification：CE, ISO
- Customized：Non-Customized
- Condition：New
- Color：Iron Grey
- Transport Package：OEM
- Specification：CE Standard
- Trademark：SAMACH
- Origin：China
- HS Code：84659902
- Production Capacity：90sets,Month
Description
Basic Info.
Certification CE, ISO Customized Non-Customized Condition New Color Iron Grey Transport Package OEM Specification CE Standard Trademark SAMACH Origin China HS Code 84659902 Production Capacity 90sets/MonthProduct Description

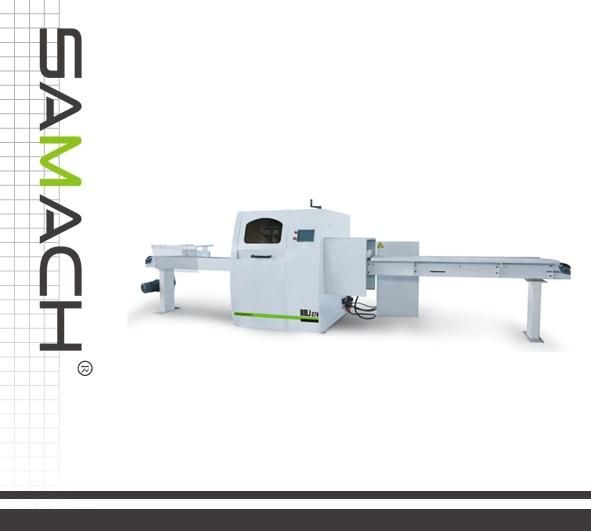

Solid Wood Machine Optimizing Cut Off Saw RMJ200
Specifications
| models | RMJ100 | RMJ200 |
| Max.cutting section | 75*125(50*180)mm | 75*125(50*180)mm |
| Sawing thickness | 5-70mm | 5-70mm |
| Cutting width | 10-120mm | 10-120mm |
| Feeding length | 350 - ∞ | 450-6300mm |
| Max. feeding speed | 100m/min | 100m/min |
| Saw diameter | 455mm | 455mm |
| Saw shaft speed | 4000rpm | 4000rpm |
| Saw shaft power | 5.5kw | 5.5kw |
| Servo feeding power | 4.5kw | 4.5kw |
| Saw lifting power | 4.5kw | 4.5kw |
| Total installed power | 16kw | 16kw |
| Voltage | 380V/50HZ | 380V/50HZ |
| Machine body dimension | 6000*1400*1550mm | 1800*1400*1550mm |
| Weight | 1800kg | 2500kg |
| Kick number | - | optional |
| Top roller number | 6 | 6 |
| Bottom roller number | 6 | 6 |
| Preferred way | Defect removal Order cutting Size cutting | Optimal yield cutting length cutting Order cutting Quantity cutting Defect removal Zero waste cutting |
1. Optimal yield cutting: according to the max wood yield.calculate the best possible
length combination from the available fixed lengths in the cutting list.
2. Optimal value cutting:according to the max wood value,calculate the best possible
value combination from the available values in the cutting list.
3. Grade sorting cutting:According to the 200 lengths and 8 grades,downgrade the
high grade residual material to lower grade material automatically for the optimal value.
4. Defect removal:only cut out the material defects, such as knots,tear-outs and rots.
5. Longest length cutting:always cut the longest length first available in the cutting list.
6. Joint cutting:cut out the residual workpiece and waste material.and then joint them
through finger jointing technology, redoing material waste.
7. Quantity(order)cutting:according to the quantity stated in the order,calculate the best
possible length combination from the available fixed lengths ins the cutting list and fulfill
the quantity task on various lengths automatically.
8.Variable width cutting:according to the material width,select the proper cutting list automatically among the 16 cutting lists.(Optional)

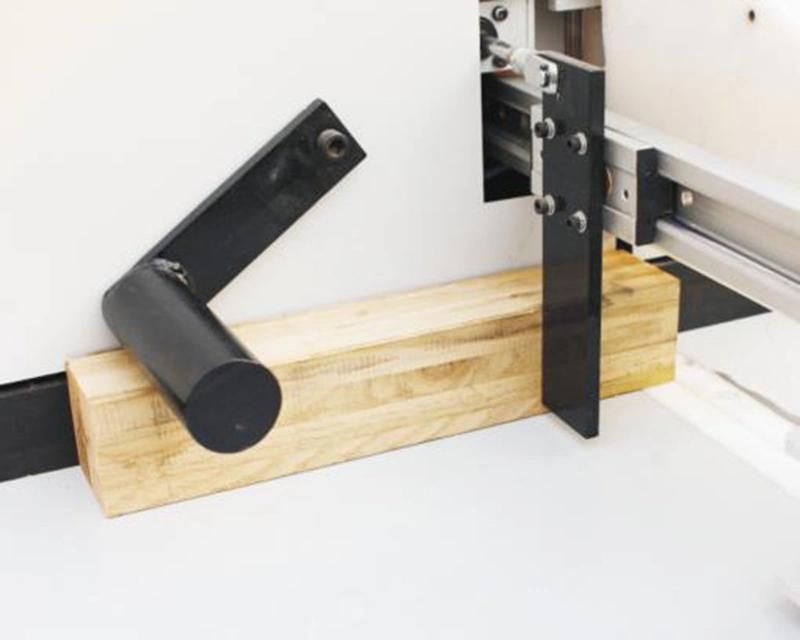

9.The side infeed and pressing device with rubber wheel.

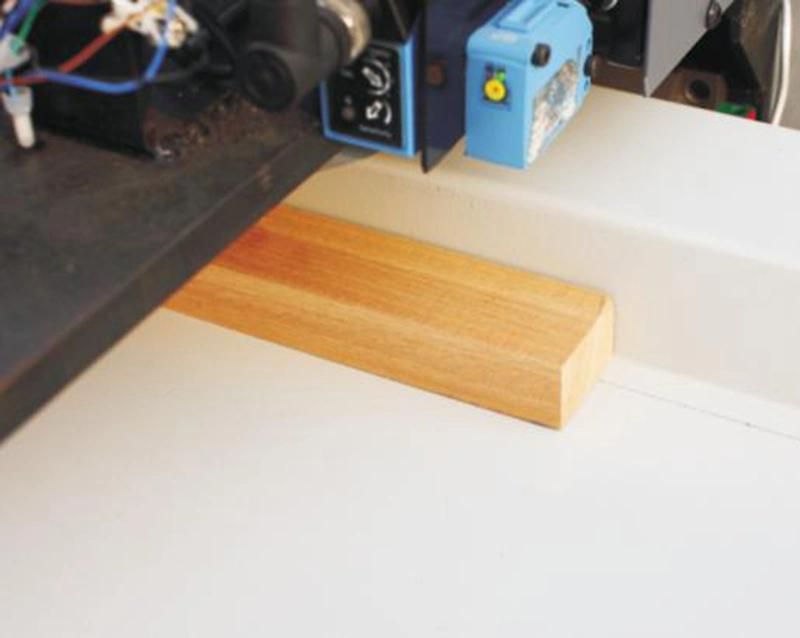

10.Apply the infrared calibration device to make the real time detection.
11. The position of timer incision and marking line are the same,and the error is less
than 0.1mm.
