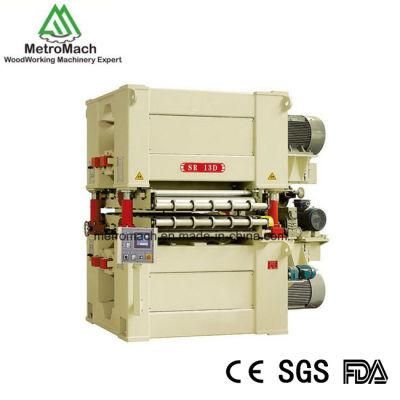

Automatic Woodworking Double Sides Calibrate Sanding Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Type：Belt Wood Sander
  • Automatic Grade：Automatic
  • Variable Speed：Variable Speed
  • Certification：CE, ISO, FDA
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：SR13D
  • Color：Iron Grey
  • Working Width：100-1300mm
  • Working Thickness：3-90mm
  • Feed Speed：6-30m,Min
  • Net Weight：8000kgs
  • Overall Dimension(Lxwxh)：2200X3360X2900mm
  • Warranty：12 Months
  • Transport Package：Standard Plastic Film
  • Trademark：Metro
  • Origin：Shandong, China
  • HS Code：8465930000
  • Production Capacity：50set,Month

Description

Double sides calibrating sander machineMachine modelSR13DWorking thickness3-90mmWorking length>700mmWorking width100-1300mmAbrasive belt speed29m/s 25m/sSize of abrasive belt (WxP)1350x2800mmFeed speed6-30m/minMain motor75Kw x 2Overall dimension(LxWxH)2200x3360x2900mmMotorsFeed motor11Kw Lifter motor1.5KwCompressed airBrush motor0.75Kw x 2 Working air pressure0.6MpaExhaust air consumptionExhaust air consumption24000m3/h Pressure1300pa Air speed25-30m/sMachine weight8000Kgs
