Four Sided Door Sizing Cutting Saw Machine

QINGDAO SOSN MACHINERY CO., LTD.
  • Type：Cutting Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Precision：High Precision

Base Info

  • Model NO.：SK1328A
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Working Table Size：1300*2800mm
  • Max Cutting Length：2700mm
  • Max Cutting Width：1200mm
  • Max Cutting Thickness：65mm
  • Table Structure：Floating Adsorption Table
  • Drive Trype：Rack Drive
  • Spindle Power：5.5kw*3+1.1kw*3
  • Main Saw Blade Speed：4500-6000rpm
  • Scoring Saw Blade Speed：7000-9000rpm
  • Max Working Speed：25m,Min
  • Scoring Saw Blade Diameter：120mm
  • Main Saw Blade Diameter：300mm
  • Driving System：Servo Drive
  • Cross Weight：4500kg
  • Transport Package：Strong Strech Film Package
  • Specification：6000*2600*2300mm
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659400
  • Production Capacity：10sets,Month

Description

Four Sided Door Sizing Cutting Saw MachineProducts description:The body and beam are welded by thick-walled 10mm square tube, thickened pad is processed by large-scale gantry milling after aging and tempering. The accuracy of track and rack surface is within 0.05mm.Four Sided Door Sizing Cutting Saw Machine

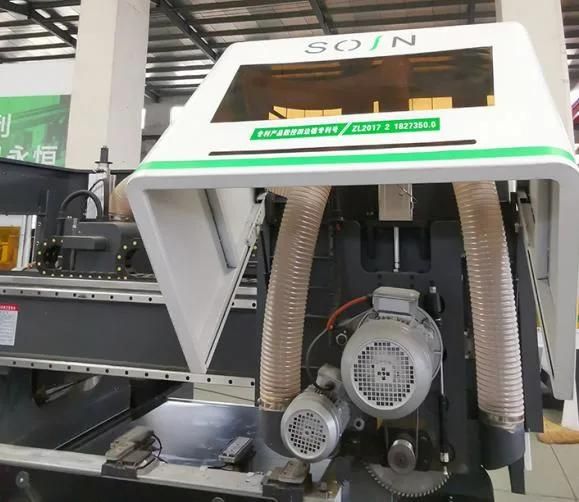

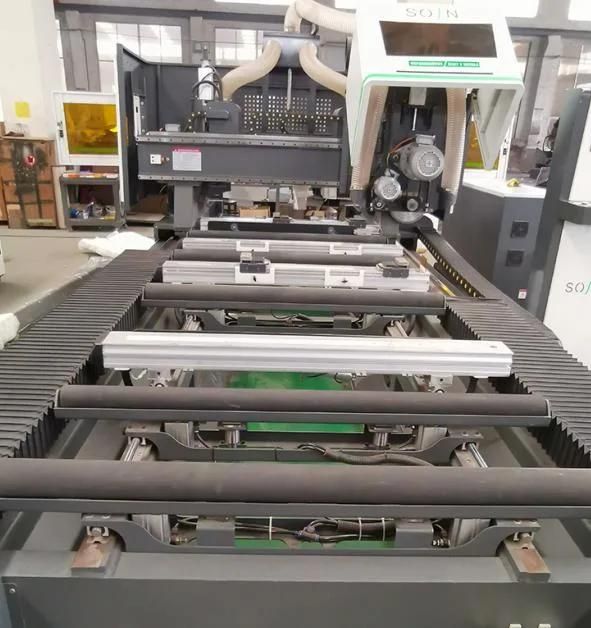

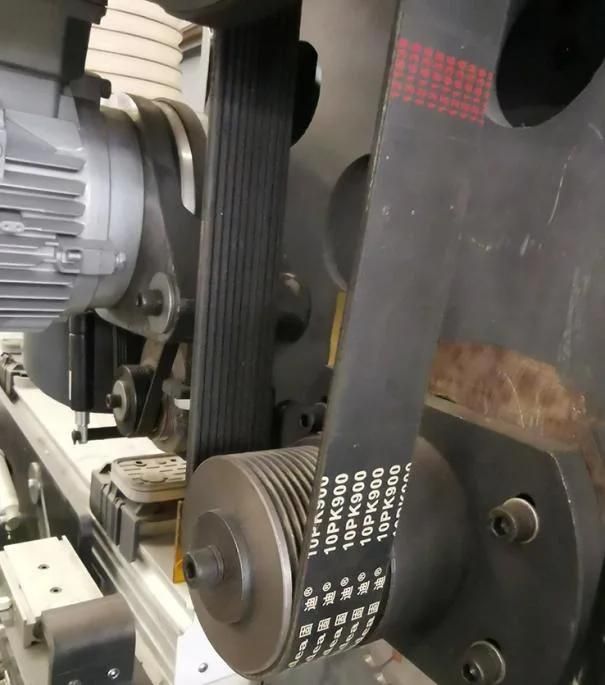

 4 sides cutting machine adopts automatic three sets of saw blades, the automatic cutting is changed from vertical to horizontal cutting, and an average of one door panel cutting is one minute. High work efficiency and low noise!Four Sided Door Sizing Cutting Saw MachineBelt transfer to ensure cutting accuracy.Four Sided Door Sizing Cutting Saw Machine

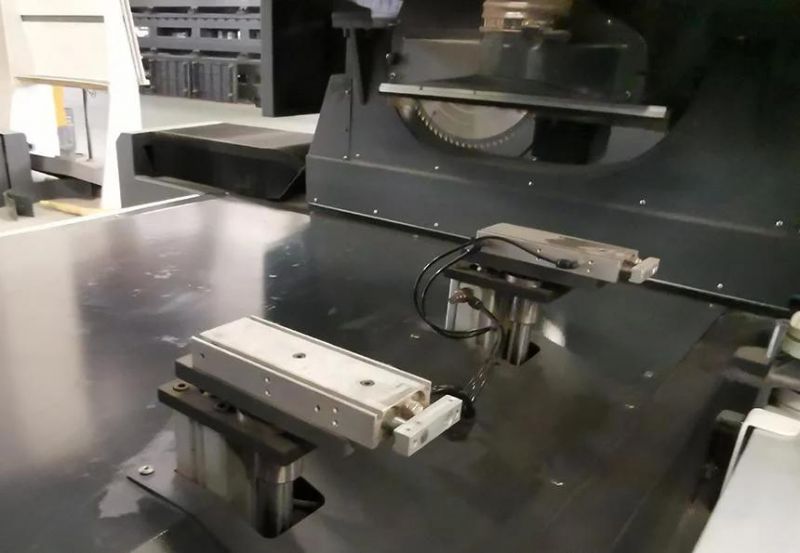

Side positioning device for door panel positioning.Min cutting width 560mm; Max cutting width 1020mm

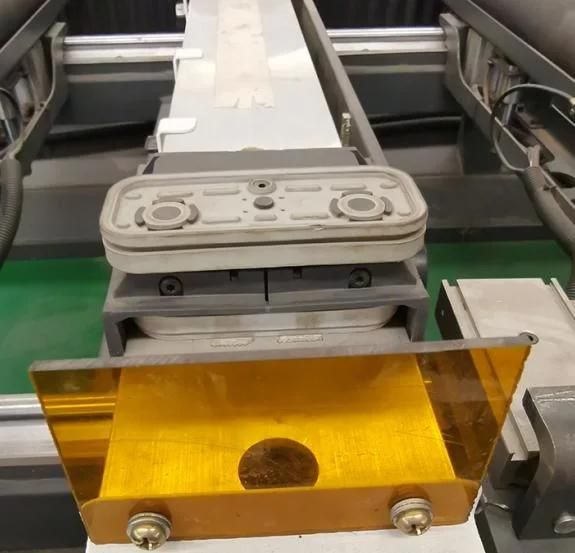

 Four Sided Door Sizing Cutting Saw MachineGerman Schmalz PTP adsorption block suction cup&adsorption beamFour Sided Door Sizing Cutting Saw MachineDrum type high-quality rubber roller is conveyed with a strong stability and easy operation, ensure the processing surface of the plate is smooth.

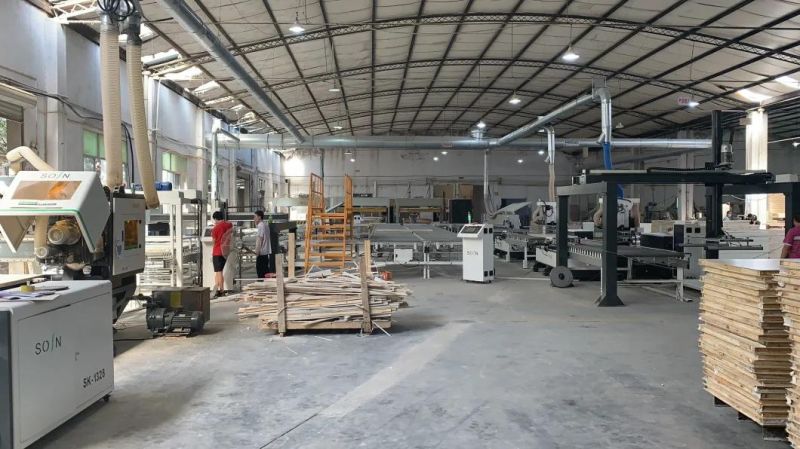

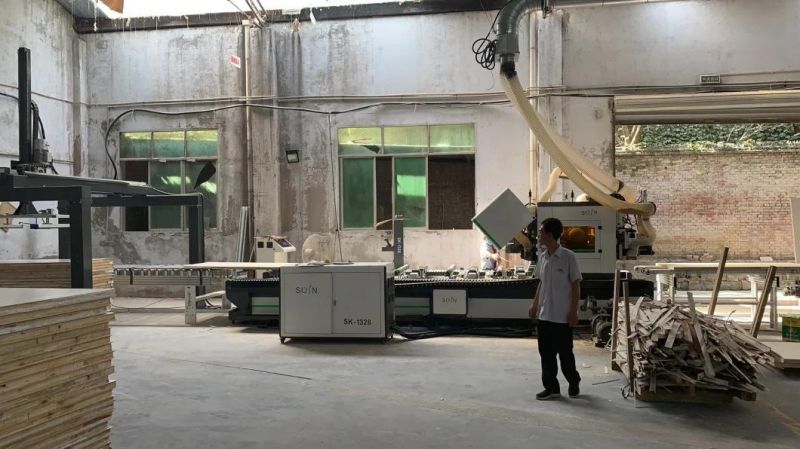

Machine in customers' factory:Four Sided Door Sizing Cutting Saw Machine
Four Sided Door Sizing Cutting Saw Machine

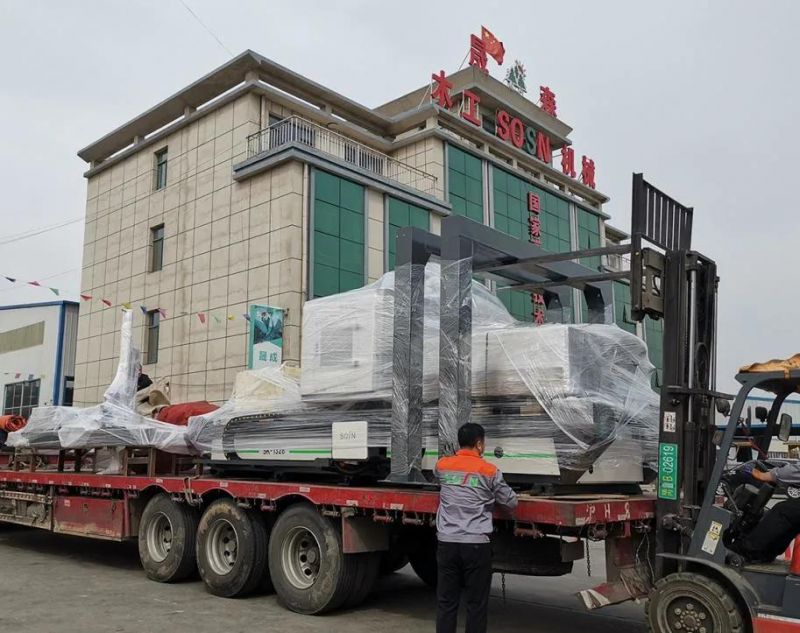

Delivery and shipment:
Four Sided Door Sizing Cutting Saw Machine
