Product Description

Product Description

1. Small Capacity: 30,000 to 130,000 m3/ year.

2. Size:4x8ft,6ftx9ft, 6x8ft, thickness 9~30mm.

3. Wide Raw materials range: small wood log and branches,veneer waste, wastes of wood processing mills&furniture factories.

4. Advanced single-pass drum dryer could be used. It adopts flue gas drying technology, high drying capacity, reduced engery consumption. Compared with traditional drying methods, it save 25%energy.

5. Low adhesive usage. Electronic dosing is used.

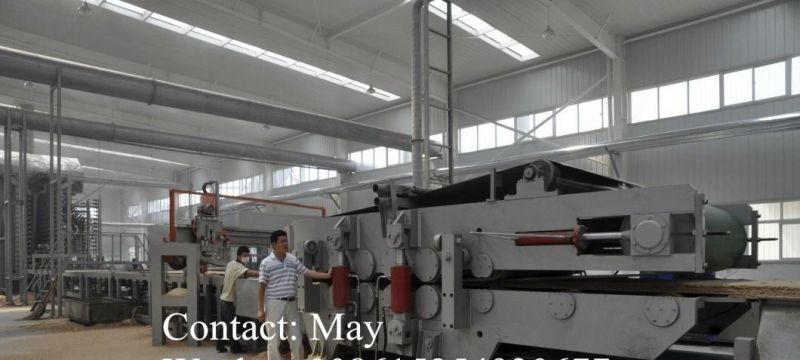

6. Mat forming adopt advanced mechnanical calssifying mat forming. The unique spiral pattern of diamond rolls ensure ideal forming performance, increase the panel quality.

7. Multi-opening hot press with synchronized closing device, which ensures the synchronization and stability of plate moving, thus accurate panel thickness and reduce sanding amount.

8. Electrical control system: famous brand quality electric compoments and  PLC control systems.
1500T Particleboard Chipboard Hot Press Machine Line

Equipment Type   Technical Parameters	BY114×8/15-10II
Nominal Gross Pressure	15000KN
Direction of Feeding Plate	Vertical
Layer Counting	10
Distance Between Hot Platens	120mm
Numbers of  Hot Platens	11
Dimension of  Hot Platens	2700×1560×100
Numbers of Cylinder	6
Diameter of Cylinder	Φ360mm
Stroke of Cylinder	1200mm
Pressurization	≤26 Mpa
Diameter of Powerful Nitrogen Tank	Φ1300x4800mm
Simultaneous closing device	With
Empty Closing Time	About 11s
The flux of Accumulator	3000 L/Min
Low Pressure Pump Flowing	355 ml/r
Power of Low pressure pump	18.5kw
High Pressure Pump Flowing	About 63 ml/r x2
Power of high pressure pump	22kw x2
Middle Pressure Pump Flowing	160 ml/r
Power of Middle pressure pump	45kw
Allowed Pressure	15 Mpa
Power	45kw
Max Pressure of Unit Plate Blank	48 Kgf/2
Control Method	Automatic pump station
Electrical Appliance	Siemens /Delta
Hydraulic Valve	Shanghai
Frame Pattern	Composite Frame
Thickness of Upper And  Lower Crossbeams	800mm
Thickness of Steel Plate	40,30,20,12mm
Thickness of Plateform above	300mm
Thickness of Steel Plate	35,30,20mm
Steel Plate Of Upright Column	40,12mm
Thickness of Active Crossbeam	450mm
Thickness of Steel Plate	30,20mm
Overall Dimensions	3200×2700×5100mm
Total  Weight	About 95,000Kg
