• Model NO.：RSJ3515A,3515TA
• Precision：High Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：24 Hours on Line
• Max. Cutting Width：520mm(40mm)
• Max. Cutting Thickness：200mm(170mm)
• Installed Power：7.5kw,3.3kw,5.5kw
• Weight：300kg-550kg
• Transport Package：OEM
• Specification：CE Standard
• Trademark：SAMACH
• Origin：China
• HS Code：84659900
• Production Capacity：90sets,Month

Basic Info.

Model NO. RSJ3515A/3515TA Precision High Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 24 Hours on Line Max. Cutting Width 520mm(40mm) Max. Cutting Thickness 200mm(170mm) Installed Power 7.5kw/3.3kw/5.5kw Weight 300kg-550kg Transport Package OEM Specification CE Standard Trademark SAMACH Origin China HS Code 84659900 Production Capacity 90sets/Month

Product Description

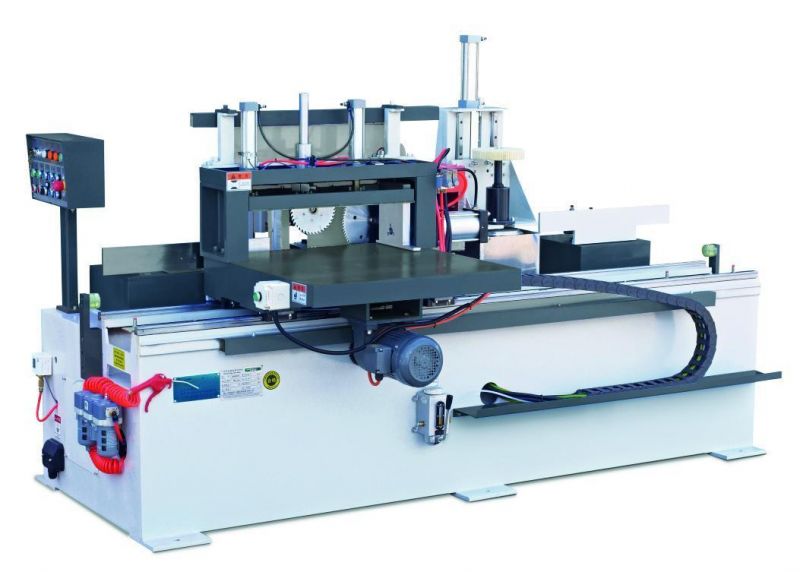

Finger joint shaper
RSJ3515A

The precision linear guide imported from Japan, which ensures the precision of the opening.
A combination of a double saw shaft and a pulverizing knife to improve the quality of the opening.
A rack and pinion travel mechanism, which is stable and fast, easy to maintain, and consumes less power.

Model	MXB3515A
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	0.75KW
Total power	15.75KW
Overall dimensions	2400X1730X1550MM
Net weight	1800KG

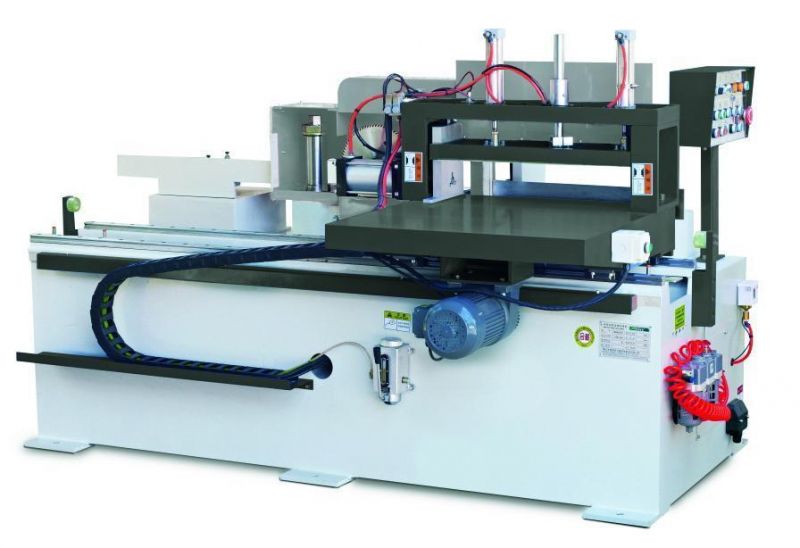

RSJ3515Ta


The precision linear guide imported from Japan, which ensures the precision of the opening.
A combination of a double saw shaft and a pulverizing knife to improve the quality of the opening.
The worktable advances and retreats are controlled by the gas-liquid conversion system imported from Germany.
The tooth-shaped anastomosis spray system is used to achieve uniform spray glue, achieving the effect of saving glue.


Model	MXB3515TA
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	2*0.75KW
Total power	16.5KW
Overall dimensions	2700X1730X1550MM
Net weight	2000KG

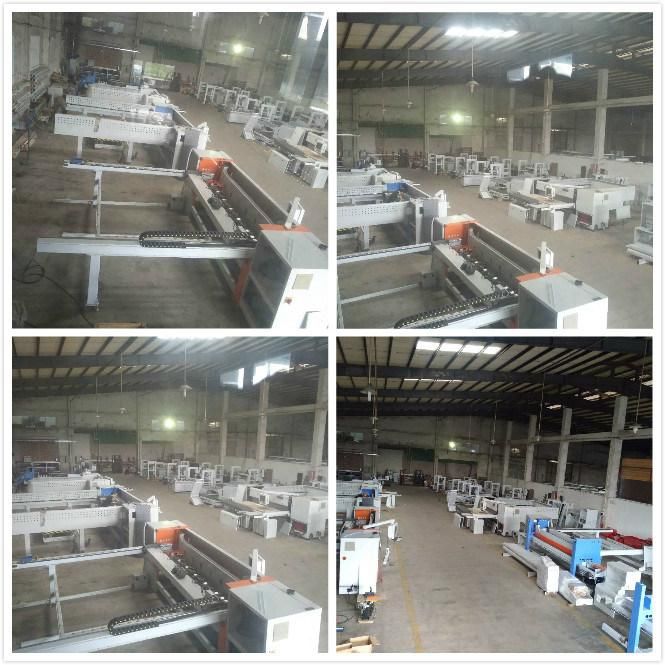

 Factory:
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.

Exhibition:

Certifications:

Packaging and Logistics:
Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
