• Model NO.：ZY900
• Total Weight：900kgs
• Feed Speed：5-8m,Min
• Power：4kw
• Transport Package：Standard Package, Be Made According Cutomer Need
• Specification：2600*1000*1400mm
• Trademark：XINLIHUI hot transfer printing wood edge banding
• Origin：Qingdao City
• HS Code：84659100
• Production Capacity：100,Year

Basic Info.

Model NO. ZY900 Total Weight 900kgs Feed Speed 5-8m/Min Power 4kw Transport Package Standard Package, Be Made According Cutomer Need Specification 2600*1000*1400mm Trademark XINLIHUI hot transfer printing wood edge banding Origin Qingdao City HS Code 84659100 Production Capacity 100/Year

Product Description

1,Can used in medals, pallets, frames, arts and crafts.
The machine is one kind of high efficiency different type sealing machine by collected machine, electric and air.
Configuration: This machine can finished the shape one time through equipped Germany Leitz, milling by imported mill cutter, polishing by sanding wheel, dust removal, one transfer,  two press film shape and cooling.
Can customized products according to customer's request.Good slippery handle after sealing, especially used UV bottom die and face film.
2,Technical parameter

Maximum Edge thickness	3-55mm
Maximum Edge width	3-55mm
Working feed rate	5-8mpm
Bronzing wheel diameter	200mm
Bronzing wheel angle	0-45°
Voltage	380v
Feed gear motor	1.5kw
Heating wheel & motor winders	0.025kw*5
Total heating power	3kw*4
High-speed cutter motor	0.75kw*2
Operating temperature	Spring and autumn; 170º ---- 180º 160º --- 170º summer winter; 200º --- 210º (south of the Yangtze above are the room temperature can be lowered temperature 10º)
Dimensions	3600*1000*1400mm

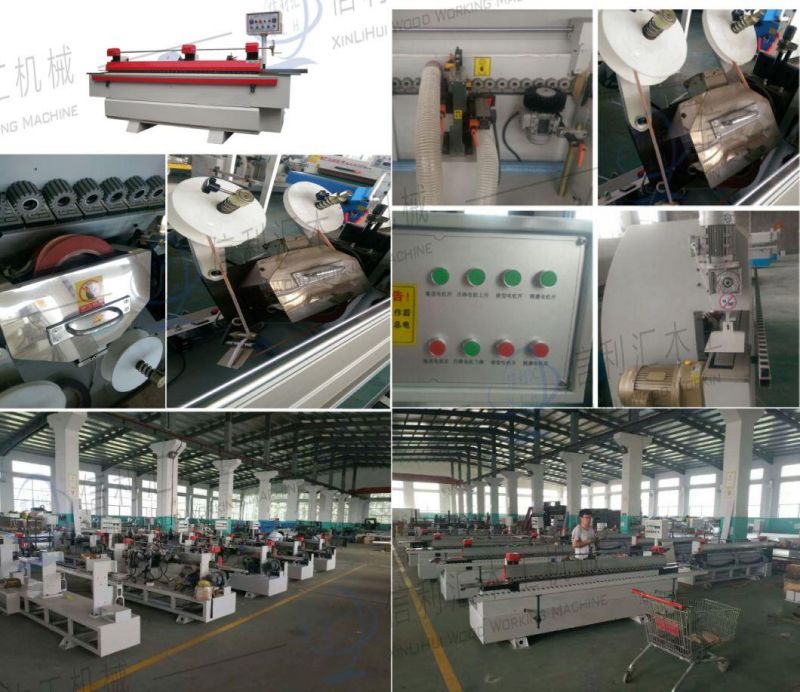

3,Some details of pictures for you:


 Tips:
1 Regularly perform dust removal on the inside of the machine according to the workload to ensure normal heat dissipation of the motor.
2 Check the belt regularly and find that the wear should be replaced in time.
3 Regularly fill the oil part of the fuselage to ensure the smooth operation of the equipment.
